83336E Series
Manufacturer: Belden Inc.
Beta
⌘K

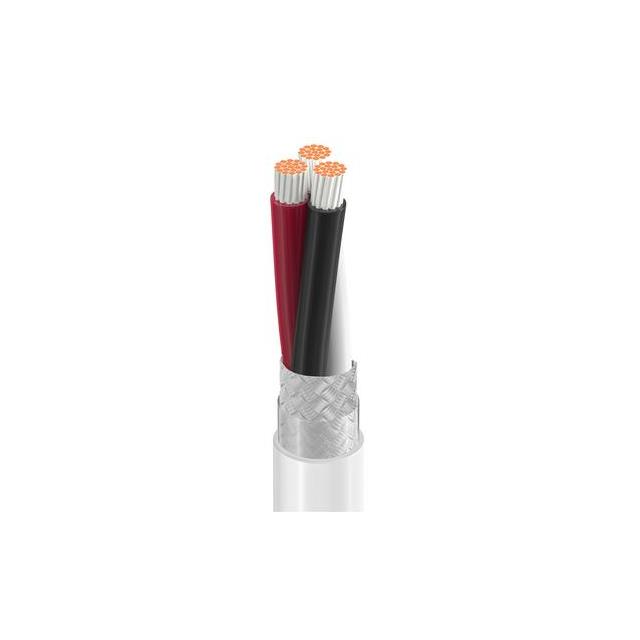

CABLE 3CON 18AWG WHT SHLD
| Part | Shield Material | Shield Coverage | Voltage | Number of Conductors | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Length | Length | Conductor Insulation | Conductor Material | Wire Gauge | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Silver Coated | 85 % | 600 V | 3 | Multi-Conductor | 30 AWG | 19 | White | Braid | 0.279 mm | 0.011 " | -65 ░C | 200 °C | 0.189 in | 4.8 mm | Tetrafluoroethylene (TFE) | 152.4 m | 500 ft | Tetrafluoroethylene (TFE) | Copper Silver Coated | 18 AWG | ||
 Belden Inc. | Copper Silver Coated | 85 % | 600 V | 3 | Multi-Conductor | 30 AWG | 19 | White | Braid | 0.279 mm | 0.011 " | -65 ░C | 200 °C | 0.189 in | 4.8 mm | Tetrafluoroethylene (TFE) | Tetrafluoroethylene (TFE) | Copper Silver Coated | 18 AWG | 100 ft | 30.5 m | ||
Belden Inc. | Copper Silver Coated | 85 % | 600 V | 3 | Multi-Conductor | 30 AWG | 19 | White | Braid | 0.279 mm | 0.011 " | -65 ░C | 200 °C | 0.189 in | 4.8 mm | Tetrafluoroethylene (TFE) | 304.8 m | 1000 ft | Tetrafluoroethylene (TFE) | Copper Silver Coated | 18 AWG |
