316-008 Series
Manufacturer: EDAC Inc.
Beta
⌘K

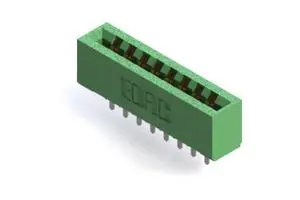

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 8 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Termination Rows | Material - Insulation | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Mounting Type | Contact Material | Color | Card Type | Gender | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Pitch | Pitch | Number of Rows [custom] | Number of Positions/Bay/Row | Read Out | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 16 | -40 C | 105 ░C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 0.25 Ám | 10 Áin | Cantilever | Panel Mount Through Hole | Copper Alloy | Green | Non Specified - Dual Edge | Female | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 3.96 mm | 0.156 in | 2 | 8 | Dual | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 16 | -40 C | 105 ░C | Tin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Cantilever | Panel Mount Through Hole | Copper Alloy | Green | Non Specified - Dual Edge | Female | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 3.96 mm | 0.156 in | 2 | 8 | Dual | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 16 | -40 C | 105 ░C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 0.25 Ám | 10 Áin | Cantilever | Through Hole | Copper Alloy | Green | Non Specified - Dual Edge | Female | 3.96 mm | 0.156 in | 2 | 8 | Dual | ||||
EDAC Inc. | 1 | Polyester Thermoplastic | 16 | -40 C | 105 ░C | Tin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Cantilever | Panel Mount Through Hole | Copper Alloy | Green | Non Specified - Dual Edge | Female | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 3.96 mm | 0.156 in | 2 | 8 | Dual | |||
EDAC Inc. | 1 | Polyester Thermoplastic | 16 | -40 C | 105 ░C | Tin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Cantilever | Panel Mount Through Hole | Copper Alloy | Green | Non Specified - Dual Edge | Female | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 3.96 mm | 0.156 in | 2 | 8 | Dual | |||
EDAC Inc. | 1 | Polyester Thermoplastic | 16 | -40 C | 105 ░C | Tin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Cantilever | Panel Mount Through Hole | Copper Alloy | Green | Non Specified - Dual Edge | Female | 4-40 Flush Mount Threaded Insert Top Opening | 3.96 mm | 0.156 in | 2 | 8 | Dual | |||||
EDAC Inc. | 1 | Polyester Thermoplastic | 16 | -40 C | 105 ░C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 0.25 Ám | 10 Áin | Cantilever | Through Hole | Copper Alloy | Green | Non Specified - Dual Edge | Female | 4-40 Flush Mount Threaded Insert Top Opening | 3.96 mm | 0.156 in | 2 | 8 | Dual | Card Guides | ||
EDAC Inc. | 1 | Polyester Thermoplastic | 16 | -40 C | 105 ░C | Tin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Cantilever | Panel Mount Through Hole | Copper Alloy | Green | Non Specified - Dual Edge | Female | Flush Mount M3 Threaded Insert Top Opening | 3.96 mm | 0.156 in | 2 | 8 | Dual | |||||
EDAC Inc. | 1 | Polyester Thermoplastic | 16 | -40 C | 105 ░C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 0.25 Ám | 10 Áin | Cantilever | Through Hole | Copper Alloy | Green | Non Specified - Dual Edge | Female | 3.96 mm | 0.156 in | 2 | 8 | Dual | ||||
EDAC Inc. | 1 | Polyester Thermoplastic | 16 | -40 C | 105 ░C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 0.25 Ám | 10 Áin | Cantilever | Panel Mount Through Hole | Copper Alloy | Green | Non Specified - Dual Edge | Female | Flush Mount M3 Threaded Insert Top Opening | 3.96 mm | 0.156 in | 2 | 8 | Dual |
