R11341 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

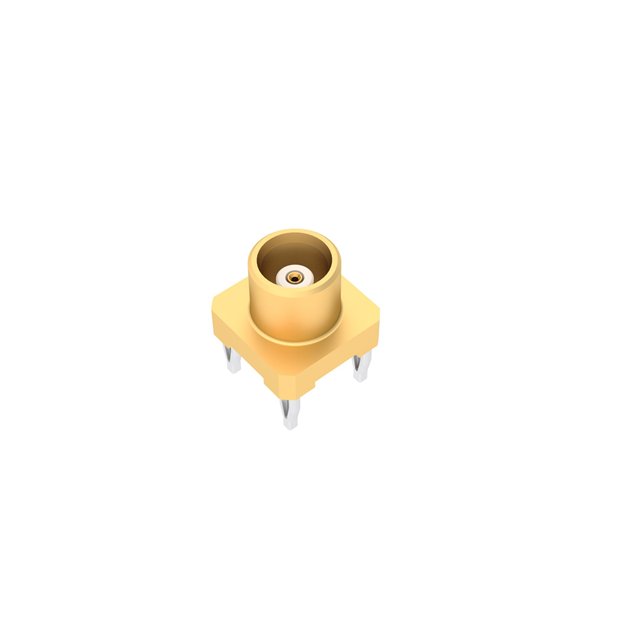

MCX / STRAIGHT JACK RECEPTACLE F
| Part | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Body Finish | Dielectric Material | Voltage Rating | Body Material | Shield Termination | Connector Type | Connector Style | Contact Termination | Housing Color | Frequency - Max [Max] | Number of Ports | Fastening Type | Mounting Type | Impedance | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | 85 °C | -40 C | Gold | Gold | Polytetrafluoroethylene (PTFE) | 335 V | Brass | Press-Fit | Female Socket Jack | MCX | Press-Fit | Gold | 6000 MHz | 1 | Snap-On | Free Hanging (In-Line) | 50 Ohms | Beryllium Copper |
 Radiall USA, Inc. | 500 | 85 °C | -40 C | Gold | Gold | Polytetrafluoroethylene (PTFE) | 335 V | Brass | Press-Fit | Female Socket Jack | MCX | Press-Fit | Gold | 6000 MHz | 1 | Snap-On | Free Hanging (In-Line) | 50 Ohms | Beryllium Copper |
