044133 Series

Manufacturer: Molex

Catalog

CONN RCPT HSG 14POS 3.00MM

Part	Note	Pitch [x]	Pitch [x]	Features	Number of Rows	Row Spacing [x]	Row Spacing [x]	Contact Termination	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Insulation Material	Color	Number of Positions	Fastening Type	Number of Positions

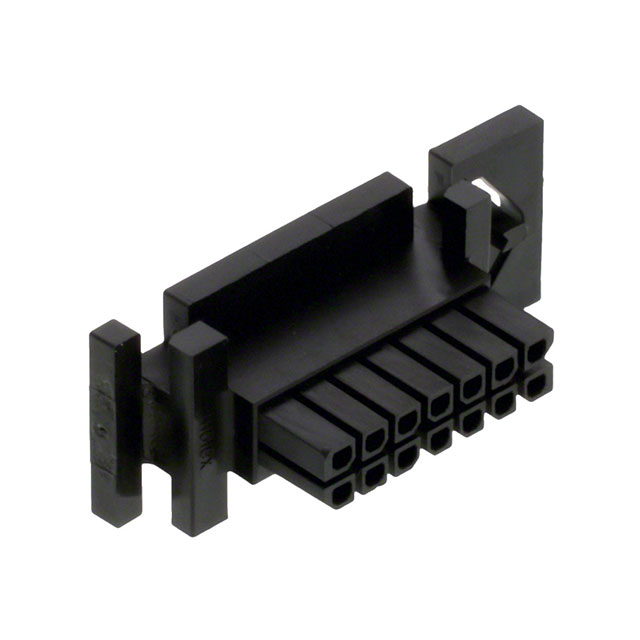

Molex 0441331400	Contacts Not Included	3 mm	0.118 in	Blind Mating	2	0.118 in	3 mm	Crimp	Receptacle	-40 °C	105 ░C	Female Socket	Polybutylene Terephthalate (PBT) Polyester	Black	14
Molex 0441331408		3 mm	0.118 in		2	0.118 in	3 mm	Crimp	Receptacle			Female Socket	Nylon Polyamide (PA)	Black	14	Push-Pull

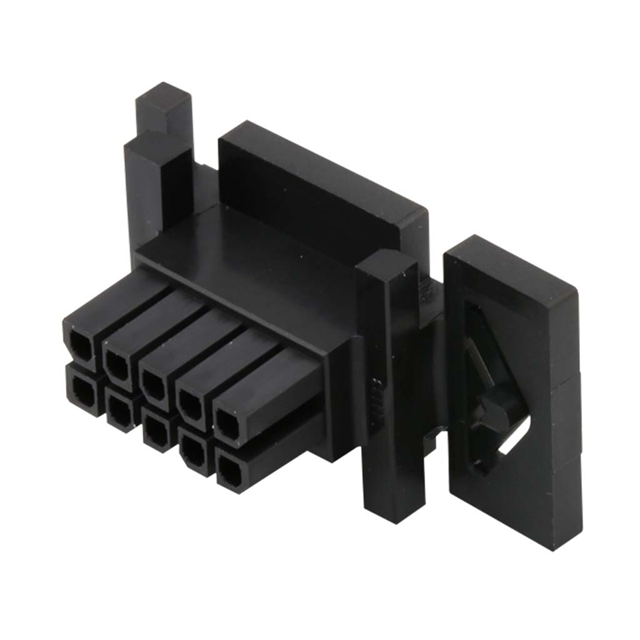

Molex 0441331008	Contacts Not Included	3 mm	0.118 in	Blind Mating	2	0.118 in	3 mm	Crimp	Receptacle	-40 °C	105 ░C	Female Socket	Nylon Polyamide (PA)	Black	10

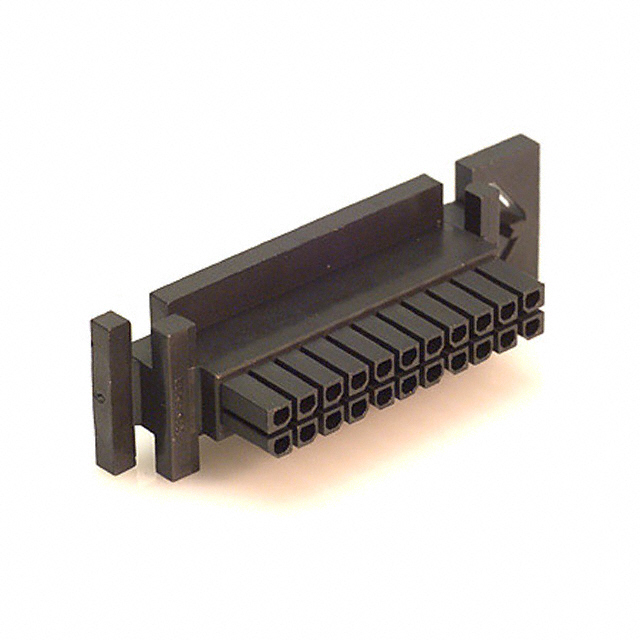

Molex 0441332200	Contacts Not Included	3 mm	0.118 in	Blind Mating	2	0.118 in	3 mm	Crimp	Receptacle	-40 °C	105 ░C	Female Socket	Polybutylene Terephthalate (PBT) Polyester	Black	22 positions

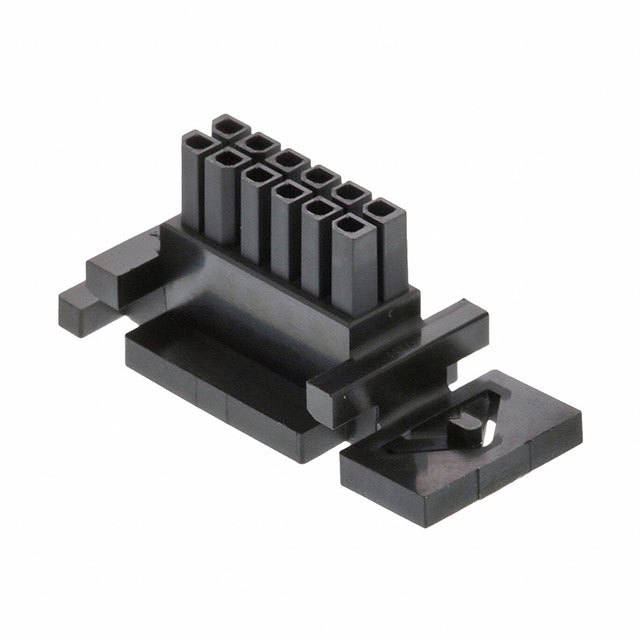

Molex 0441331200	Contacts Not Included	3 mm	0.118 in	Blind Mating	2	0.118 in	3 mm	Crimp	Receptacle	-40 °C	105 ░C	Female Socket	Polybutylene Terephthalate (PBT) Polyester	Black	12

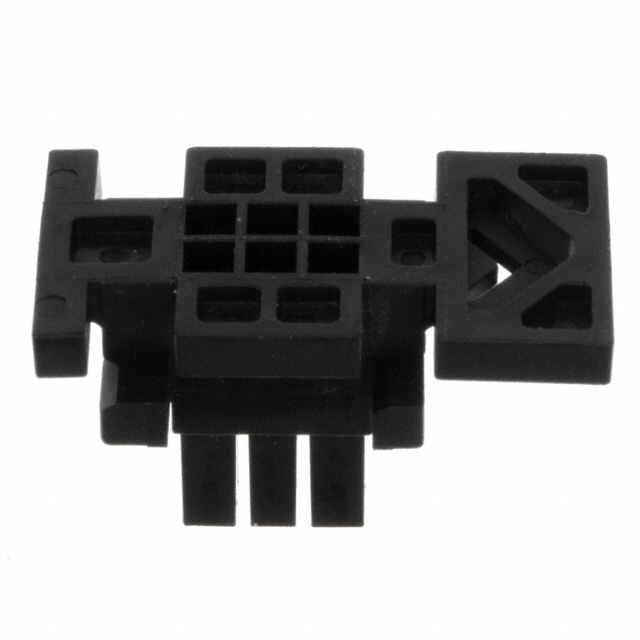

Molex 0441330600	Contacts Not Included	3 mm	0.118 in	Blind Mating	2	0.118 in	3 mm	Crimp	Receptacle	-40 °C	105 ░C	Female Socket	Polybutylene Terephthalate (PBT) Polyester	Black	6
Molex 0441331600	Contacts Not Included	3 mm	0.118 in	Blind Mating	2	0.118 in	3 mm	Crimp	Receptacle	-40 °C	105 ░C	Female Socket	Polybutylene Terephthalate (PBT) Polyester	Black			16

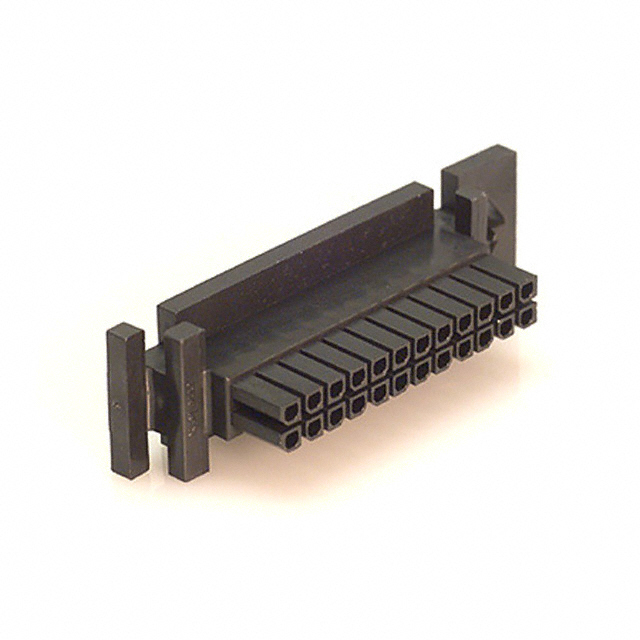

Molex 0441332400	Contacts Not Included	3 mm	0.118 in	Blind Mating	2	0.118 in	3 mm	Crimp	Receptacle	-40 °C	105 ░C	Female Socket	Polybutylene Terephthalate (PBT) Polyester	Black	24
