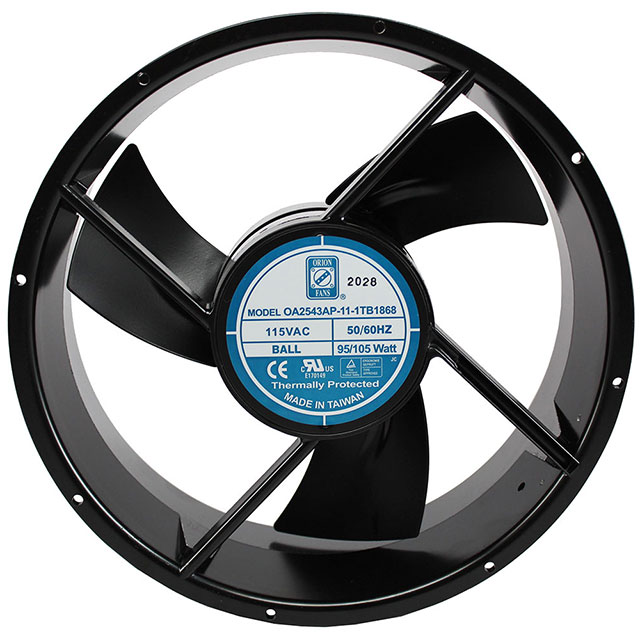

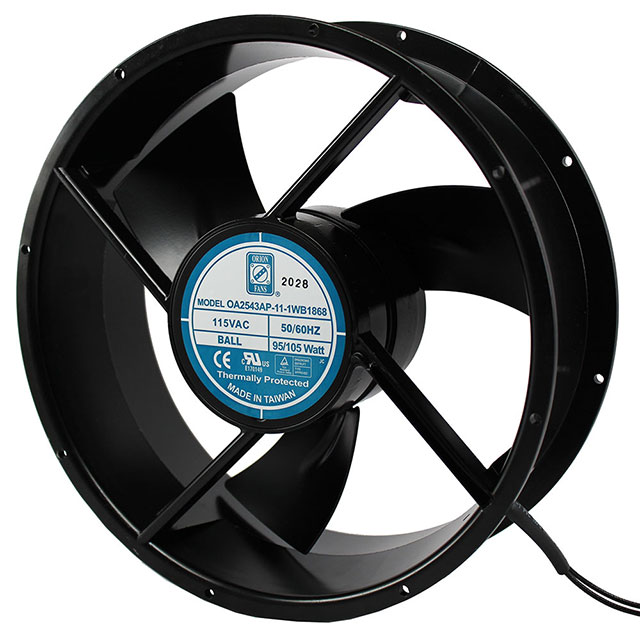

OA2543AP Series
Manufacturer: ORION FANS
Beta
⌘K
AC FAN, IP69K, 254X254X89MM, 115
| Part | Material - Frame | Material - Blade | Lifetime @ Temp. | Fan Type | Bearing Type | Size / Dimension | Size / Dimension [diameter] | Width [y] | Termination | Noise | Features | RPM | Air Flow | Air Flow | Power (Watts) | Voltage - Rated | Approval Agency | Static Pressure | Static Pressure | Weight | Weight | Ingress Protection | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | Aluminum | Steel | 50000 Hrs | Tubeaxial | Ball | Round | 10 in | 89 mm | 2 | 67 dB | Capacitor Thermal Overload Protector (TOP) | 3300 RPM | 26.04 m³/min | 930 CFM | 105 W | 115 VAC | CE cURus TUV UR | 274 Pa | 1.1 in H2O | 5.2 lbs | 2.4 kg | IP69K | |
 ORION FANS | Aluminum | Steel | 50000 Hrs | Tubeaxial | Ball | Round | 10 in | 89 mm | 67 dB | Capacitor Thermal Overload Protector (TOP) | 3300 RPM | 26.04 m³/min | 930 CFM | 105 W | 230 VAC | CE cURus TUV UR | 274 Pa | 1.1 in H2O | 5.2 lbs | 2.4 kg | IP68 - Dust Tight Waterproof | 2 Wire Leads | |
 ORION FANS | Aluminum | Steel | 50000 Hrs | Tubeaxial | Ball | Round | 10 in | 89 mm | 67 dB | Capacitor Thermal Overload Protector (TOP) | 3300 RPM | 26.04 m³/min | 930 CFM | 105 W | 115 VAC | CE cURus TUV UR | 274 Pa | 1.1 in H2O | 5.2 lbs | 2.4 kg | IP68 - Dust Tight Waterproof | 2 Wire Leads | |
 ORION FANS | Aluminum | Steel | 50000 Hrs | Tubeaxial | Ball | Round | 10 in | 89 mm | 2 | 67 dB | Capacitor Thermal Overload Protector (TOP) | 3300 RPM | 26.04 m³/min | 930 CFM | 105 W | 115 VAC | CE cURus TUV UR | 274 Pa | 1.1 in H2O | 5.2 lbs | 2.4 kg | IP68 - Dust Tight Waterproof | |
 ORION FANS | Aluminum | Steel | 50000 Hrs | Tubeaxial | Ball | Round | 10 in | 89 mm | 67 dB | Capacitor Thermal Overload Protector (TOP) | 3300 RPM | 26.04 m³/min | 930 CFM | 105 W | 230 VAC | CE cURus TUV UR | 274 Pa | 1.1 in H2O | 5.2 lbs | 2.4 kg | IP69K | 2 Wire Leads | |
ORION FANS | Aluminum | Steel | 50000 Hrs | Tubeaxial | Ball | Round | 10 in | 89 mm | 2 | 67 dB | Capacitor Thermal Overload Protector (TOP) | 3300 RPM | 26.04 m³/min | 930 CFM | 105 W | 230 VAC | CE cURus TUV UR | 274 Pa | 1.1 in H2O | 5.2 lbs | 2.4 kg | IP69K | |
 ORION FANS | Aluminum | Steel | 50000 Hrs | Tubeaxial | Ball | Round | 10 in | 89 mm | 2 | 67 dB | Capacitor Thermal Overload Protector (TOP) | 3300 RPM | 26.04 m³/min | 930 CFM | 105 W | 230 VAC | CE cURus TUV UR | 274 Pa | 1.1 in H2O | 5.2 lbs | 2.4 kg | IP68 - Dust Tight Waterproof | |
ORION FANS | Aluminum | Steel | 50000 Hrs | Tubeaxial | Ball | Round | 10 in | 89 mm | 67 dB | Capacitor Thermal Overload Protector (TOP) | 3300 RPM | 26.04 m³/min | 930 CFM | 105 W | 115 VAC | CE cURus TUV UR | 274 Pa | 1.1 in H2O | 5.2 lbs | 2.4 kg | IP69K | 2 Wire Leads |
