72R065X Series

PTC 72V POLYFUSE AMMO RADIAL LEADS .650A

Catalog

PTC 72V POLYFUSE AMMO RADIAL LEADS .650A

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Approval Agency	Current - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Size / Dimension [custom]	Size / Dimension [diameter]	Size / Dimension [custom]	Size / Dimension [diameter]	Time to Trip	Package / Case	Voltage - Max [Max]	Current - Trip (It)	Current - Hold (Ih) (Max) [Max]	Lead Spacing	Lead Spacing	Resistance - Post Trip (R1) (Max) [Max]	Resistance - Initial (Ri) (Min) [Min]	Type

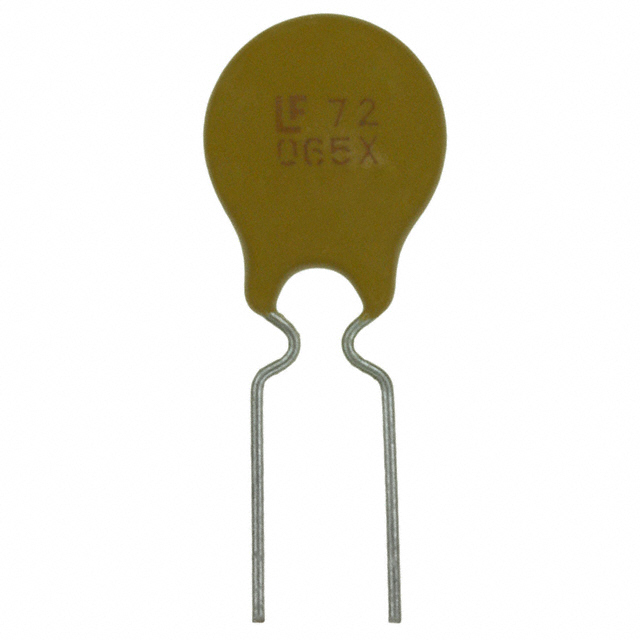

Littelfuse/Commercial Vehicle Products 72R065XU	0.571 in	14.5 mm	cURus TUV	40 A	85 °C	-40 °C	Through Hole	3.1 mm	9.4 mm	0.122 in	0.37 inches	5.3 s	Disc Radial	72 V	1.3 A	650 mA	5.1 mm	0.201 in	720 mOhms	310 mOhms	Polymeric

PTC 72V POLYFUSE AMMO RADIAL LEADS .650A

• Lead-free and RoHS compliant

• Maximum voltage rating of 72 V dc and maximum short circuit rating of 40 A

• Resettable feature

• Ideal for a broad range of general electronics using a low voltage power supply

The 72R Series is designed to provide overcurrent protection to 72Vdc maximum voltage with a maximum 40A short circuit rating.
