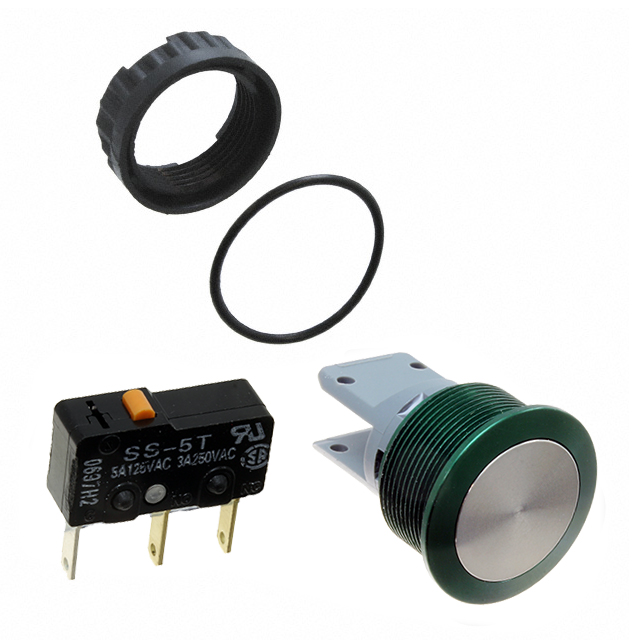

1241.6622 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
SWITCH PUSHBUTTON SPDT 5A 250V
| Part | Electrical Life | Mechanical Life | Actuator Marking | Operating Temperature [Max] | Operating Temperature [Min] | Color - Actuator/Cap | Actuator Type | Panel Cutout Dimensions [diameter] | Ingress Protection | Termination Style | Current Rating (Amps) | Switch Function | Mounting Type | Circuit | Voltage Rating - AC | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 50000 Cycles | 1500000 Cycles | No Marking | 85 °C | -25 °C | Green | Button Flush Round | 19.1 mm | IP40 | Quick Connect - 0.110" (2.8mm) | 5 A | On-Mom | Panel Mount Front | SPDT | 125 V | Anti-Vandal |
