TS2P3M Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

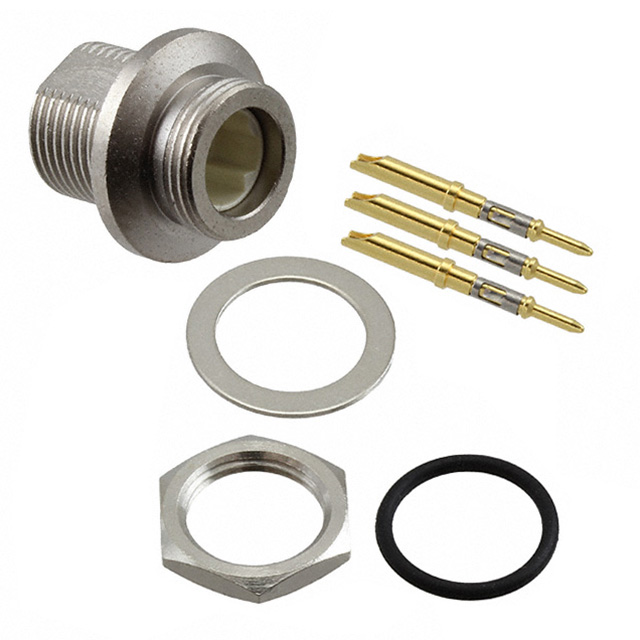

CONN CIRCULAR PIN 3 POS SOLDER ST THRU-HOLE 3 TERMINAL 1 PORT BULK
| Part | Orientation | Termination | Contact Material | Applications | Fastening Type | Shielding | Insert Material | Mounting Type | Mounting Feature | Voltage Rating | Color | Primary Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Ingress Protection | Shell Finish | Shell Material | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Keyed | Solder | Copper Alloy | Agriculture Audio General Medical Testing Equipment & Measurement | Threaded | Shielded | Liquid Crystal Polymer (LCP) | Panel Mount Through Hole | Bulkhead - Front Side Nut | 125 VAC | Silver | Metal | -40 C | 135 °C | Receptacle Male Pins | IP66 IP67 IP68 | Electroless Nickel | Copper Alloy | Gold |
 SWITCHCRAFT/CONXALL | Keyed | Crimp Solder Cup | Copper Alloy | Agriculture Audio General Medical Testing Equipment & Measurement | Threaded | Shielded | Liquid Crystal Polymer (LCP) | Panel Mount | Bulkhead - Rear Side Nut | 125 VAC | Silver | Metal | -40 C | 135 °C | Receptacle Male Pins | IP66 IP67 IP68 | Electroless Nickel | Copper Alloy | Gold |
