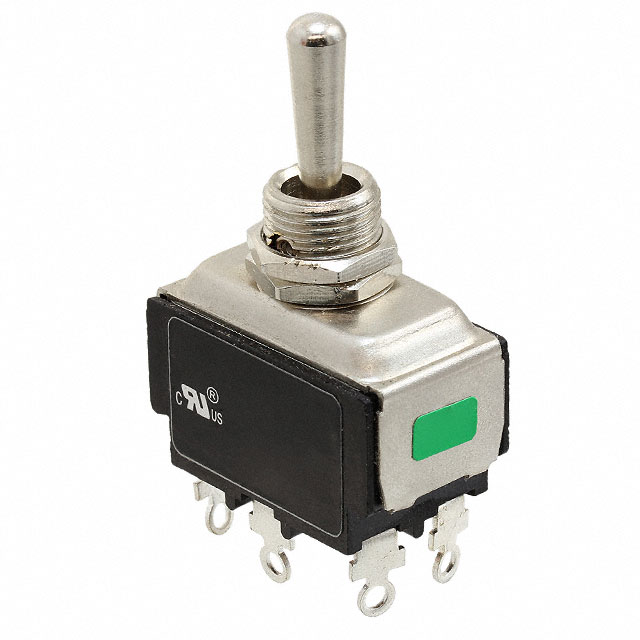

ST226D Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TOGGLE DPDT 20A 125V
| Part | Electrical Life | Actuator Material | Mounting Type | Panel Cutout Dimensions [diameter] | Switch Function | Bushing Thread | Actuator Length [x] | Actuator Type | Illumination | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Current Rating (Amps) | Termination Style | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 6000 Cycles | Brass Nickel Plated | Panel Mount | 12 mm | On-Off-On | M12 x 1 | 17.5 mm | Standard Round | Non-Illuminated | 0 °C | 85 °C | DPDT | 20 A | Solder Lug | 125 V |
