SDR0703 Series

Catalog

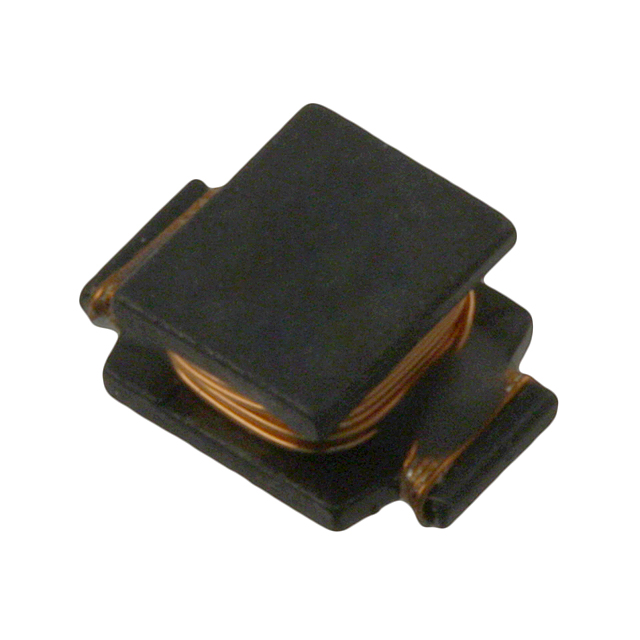

INDUCTOR,FERRITE,5.6UH,20+% TOL,20-% TOL,2618-CASE ROHS COMPLIANT: YES

Part	Operating Temperature [Max]	Operating Temperature [Min]	Q @ Freq [custom]	Q @ Freq [custom]	Shielding	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Frequency - Self Resonant	Tolerance	Current Rating (Amps)	Package / Case	Inductance Frequency - Test	Material - Core	Current - Saturation (Isat)	DC Resistance (DCR)	Mounting Type	Type	DC Resistance (DCR) [Max]	Q @ Freq
Bourns Inc. SDR0703-5R6ML	125 °C	-40 C	7.96 MHz	20	Unshielded	2.7 mm	0.106 in	5.6 µH	6.5 mm	0.256 in	4.5 mm	0.177 "	56 MHz	20 %	1.4 A	Nonstandard	100 kHz	Ferrite	2 A	105 mOhm	Surface Mount	Drum Core Wirewound
Bourns Inc. SDR0703-3R3ML	125 °C	-40 C	7.96 MHz	23	Unshielded	2.7 mm	0.106 in	3.3 µH	6.5 mm	0.256 in	4.5 mm	0.177 "	65 MHz	20 %	1.65 A	Nonstandard	100 kHz	Ferrite	2.35 A		Surface Mount	Drum Core Wirewound	75 mOhm
Bourns Inc. SDR0703-331KL	125 °C	-40 C	796 kHz	33	Unshielded	2.7 mm	0.106 in	330 µH	6.5 mm	0.256 in	4.5 mm	0.177 "	6 MHz	10 %	160 mA	Nonstandard	100 kHz	Ferrite	190 mA		Surface Mount	Drum Core Wirewound	4.8 Ohm
Bourns Inc. SDR0703-821KL	125 °C	-40 C			Unshielded	2.7 mm	0.106 in	820 µH	6.5 mm	0.256 in	4.5 mm	0.177 "	3.6 MHz	10 %	0.09 A	Nonstandard	100 kHz	Ferrite	140 mA		Surface Mount	Drum Core Wirewound	12 Ohm	32 796 kHz
Bourns Inc. SDR0703-6R8M	125 °C	-40 C	7.96 MHz	20	Unshielded	2.7 mm	0.106 in	6.8 µH	6.5 mm	0.256 in	4.5 mm	0.177 "	45 MHz	20 %	1.3 A	Nonstandard	100 kHz	Ferrite	1.9 A	115 mOhm	Surface Mount	Drum Core Wirewound
Bourns Inc. SDR0703-121KL	125 °C	-40 C			Unshielded	2.7 mm	0.106 in		6.5 mm	0.256 in	4.5 mm	0.177 "	10 MHz	10 %	0.26 A	Nonstandard	100 kHz	Ferrite	370 mA		Surface Mount	Drum Core Wirewound	1.75 Ohm	32 796 kHz
Bourns Inc. SDR0703-271KL	125 °C	-40 C			Unshielded	2.7 mm	0.106 in	270 µH	6.5 mm	0.256 in	4.5 mm	0.177 "	7 MHz	10 %	0.17 A	Nonstandard	100 kHz	Ferrite	220 mA		Surface Mount	Drum Core Wirewound	3.6 Ohm	30 796 kHz
Bourns Inc. SDR0703-4R7M	125 °C	-40 C	7.96 MHz	20	Unshielded	2.7 mm	0.106 in	4.7 ÁH	6.5 mm	0.256 in	4.5 mm	0.177 "	60 MHz	20 %	1.5 A	Nonstandard	100 kHz	Ferrite	2.1 A	100 mOhm	Surface Mount	Drum Core Wirewound
Bourns Inc. SDR0703-8R2ML	125 °C	-40 C	7.96 MHz	20	Unshielded	2.7 mm	0.106 in	8.2 µH	6.5 mm	0.256 in	4.5 mm	0.177 "	40 MHz	20 %	1.1 A	Nonstandard	100 kHz	Ferrite		150 mOhm	Surface Mount	Drum Core Wirewound
Bourns Inc. SDR0703-150KL	125 °C	-40 C			Unshielded	2.7 mm	0.106 in	15 µH	6.5 mm	0.256 in	4.5 mm	0.177 "	30 MHz	10 %	750 mA	Nonstandard	100 kHz	Ferrite	1.12 A		Surface Mount	Drum Core Wirewound	240 mOhm	2.52 MHz 23
