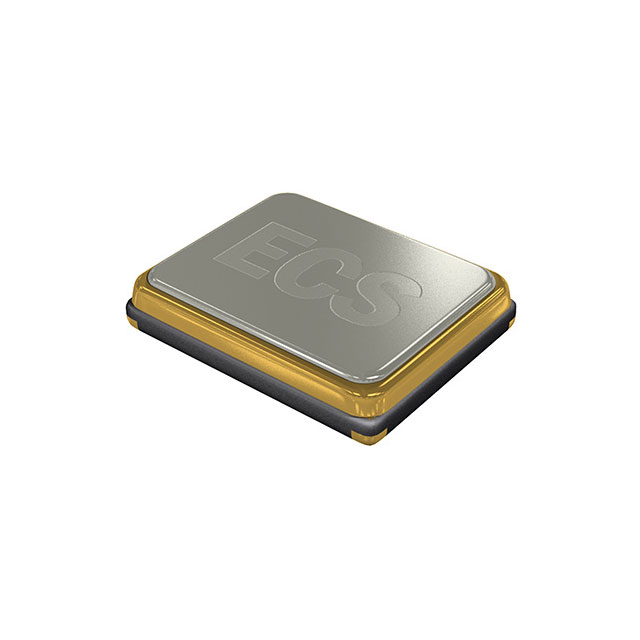

ECS-33B Series
Manufacturer: ECS Inc.
Beta
⌘K
CRYSTALS 32MHZ 6 PF ECS-33B +/-10/20 PPM -40 - +85C +/-1 PPM AGING 3225 4-SMD ROHS
| Part | Operating Mode | Frequency Stability | Type | Height - Seated (Max) [Max] | Height - Seated (Max) | Load Capacitance | ESR (Equivalent Series Resistance) | Package / Case | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Mounting Type | Supplier Device Package [x] | Supplier Device Package [y] | Supplier Device Package | Frequency | Frequency Tolerance | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ECS Inc. | Fundamental | 20 ppm | MHz Crystal | 0.031 in | 0.8 mm | 6 pF | 40 Ohms | 4-SMD No Lead | 2.5 mm | 0.098 in | 3.2 mm | 0.126 " | Surface Mount | 3.2 | 2.5 | 4-SMD | 32 MHz | 10 ppm | 85 °C | -40 C |
 ECS Inc. | Fundamental | 20 ppm | MHz Crystal | 0.031 in | 0.8 mm | 9 pF | 40 Ohms | 4-SMD No Lead | 2.5 mm | 0.098 in | 3.2 mm | 0.126 " | Surface Mount | 3.2 | 2.5 | 4-SMD | 24 MHz | 10 ppm | 105 ░C | -40 C |
