CONN MMCX JACK STR 50 OHM CRIMP

Part	Dielectric Material	Voltage Rating	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Insertion Loss	Body Material	Center Contact Plating	Number of Ports	Connector Type	Fastening Type	Impedance	Mounting Type	Contact Termination	Cable Group	Cable Group	Shield Termination	Center Contact Material	Frequency - Max [Max]	Connector Style	Housing Color	Includes	Mounting Feature
Harwin Inc. MMCX-5005	Polytetrafluoroethylene (PTFE)	170 V	Gold	-65 ░C	165 °C	500	0.2 dB	Brass	Gold	1	Female Socket Jack	Snap-On	50 Ohms	Free Hanging (In-Line)	Crimp	196	RG-178	Crimp	Beryllium Copper	6000 MHz	MMCX	Gold
Harwin Inc. MMCX-3505	Polytetrafluoroethylene (PTFE)	170 V	Gold	-65 ░C	165 °C	500	0.3 dB	Brass	Gold	1	Female Socket Jack	Snap-On	50 Ohms	Right Angle Through Hole	Solder			Solder	Beryllium Copper	6000 MHz	MMCX	Gold
Harwin Inc. UMCP-8020005	Polybutylene Terephthalate (PBT) Glass Filled		Silver	-40 C	90 °C			Phosphor Bronze	Gold	1	Plug Male Pin	Snap-On		Free Hanging (In-Line) Right Angle	Crimp			Crimp	Phosphor Bronze	6000 MHz	U.FL (UMCC)	Silver

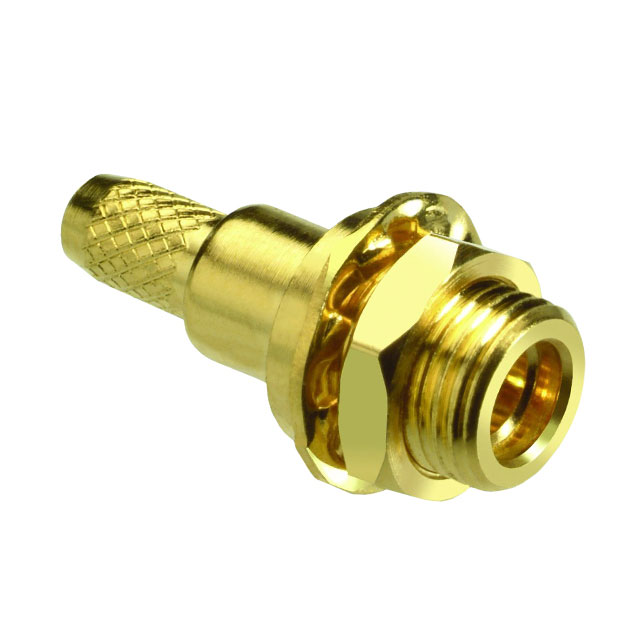

Harwin Inc. MMCX-5305	Polytetrafluoroethylene (PTFE)	170 V	Gold	-65 ░C	165 °C	500	0.2 dB	Brass	Gold	1	Female Socket Jack	Snap-On	50 Ohms	Panel Mount	Crimp		188 316 RG-174	Crimp	Beryllium Copper	6000 MHz	MMCX	Gold	1 Connector 1 Contact 1 Nut 1 Sleeve 1 Washer	Bulkhead - Front Side Nut
Harwin Inc. MMCX-6105	Polytetrafluoroethylene (PTFE)	170 V	Gold	-65 ░C	165 °C	500	0.2 dB	Brass	Gold	1	Plug Male Pin	Snap-On	50 Ohms	Free Hanging (In-Line)	Crimp		188 316 RG-174	Crimp	Brass	6000 MHz	MMCX	Gold
Harwin Inc. MMCX-6505	Polytetrafluoroethylene (PTFE)	170 V	Gold	-65 ░C	165 °C	500	0.3 dB	Brass	Gold	1	Plug Male Pin	Snap-On	50 Ohms	Free Hanging (In-Line) Right Angle	Solder	196	RG-178	Crimp	Brass	6000 MHz	MMCX	Gold

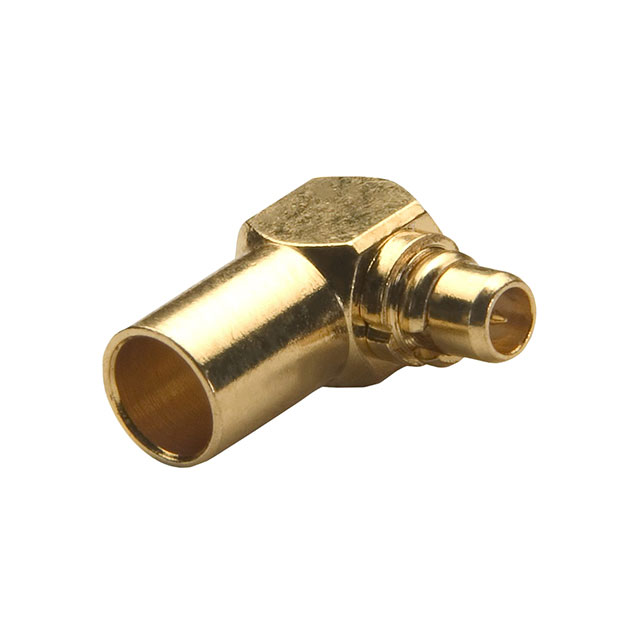

Harwin Inc. MMCX-6605	Polytetrafluoroethylene (PTFE)	170 V	Gold	-65 ░C	165 °C	500	0.3 dB	Brass	Gold	1	Plug Male Pin	Snap-On	50 Ohms	Free Hanging (In-Line) Right Angle	Solder		188 316 RG-174	Crimp	Brass	6000 MHz	MMCX	Gold

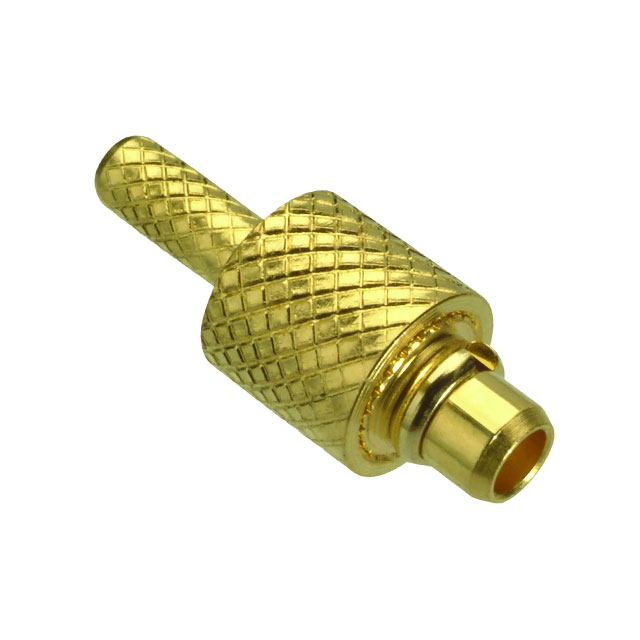

Harwin Inc. MMCX-6005	Polytetrafluoroethylene (PTFE)	170 V	Gold	-65 ░C	165 °C	500	0.2 dB	Brass	Gold	1	Plug Male Pin	Snap-On	50 Ohms	Free Hanging (In-Line)	Crimp	196	RG-178	Crimp	Brass	6000 MHz	MMCX	Gold
