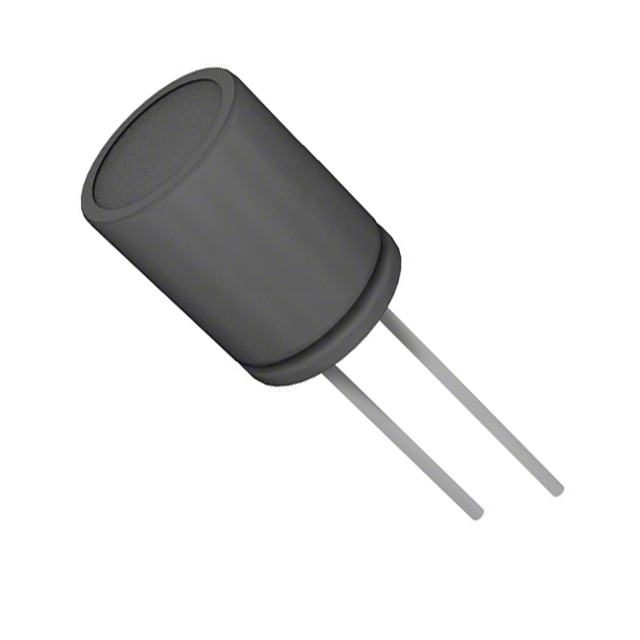

YXH Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED LOW IMPEDANCE ELECTROLYTIC CAPACITORS

Part	Mounting Type	Capacitance	Impedance	Polarization	Ripple Current @ Low Frequency	Lifetime @ Temp.	Tolerance	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Rubycon 16YXH2200MEFC12.5X25	Through Hole	2200 µF	27 mOhms	Polar	1.561 A	10000 Hrs	20 %	2.23 A	0.197 "	5 mm	16 V	1.063 in	27 mm	-40 C	105 ░C	0.492 in	12.5 mm	Can Radial	General Purpose
Rubycon 10YXH1000MEFC10X16	Through Hole	1000 µF	60 mOhms	Polar	726 mA	7000 Hrs	20 %	1.21 A	0.197 "	5 mm	10 V			-40 C	105 ░C	0.394 in	10 mm	Can Radial	General Purpose	17.5 mm	0.689 in
Rubycon 50YXH100MEFC8X11.5	Through Hole	100 µF	170 mOhms	Polar	277.5 mA	7000 Hrs	20 %	555 mA	0.138 in	3.5 mm	50 VDC			-40 C	105 ░C	0.315 in	8 mm	Can Radial	General Purpose		13 mm	0.512 "
Rubycon 25YXH1000MEFC10X28	Through Hole	1000 µF	31 mOhms	Polar	1.146 A	7000 Hrs	20 %	1.91 A	0.197 "	5 mm	25 VDC			-40 C	105 ░C	0.394 in	10 mm	Can Radial	General Purpose		30 mm	1.181 "
