76007WS Series
Manufacturer: Belden Inc.
Beta
⌘K

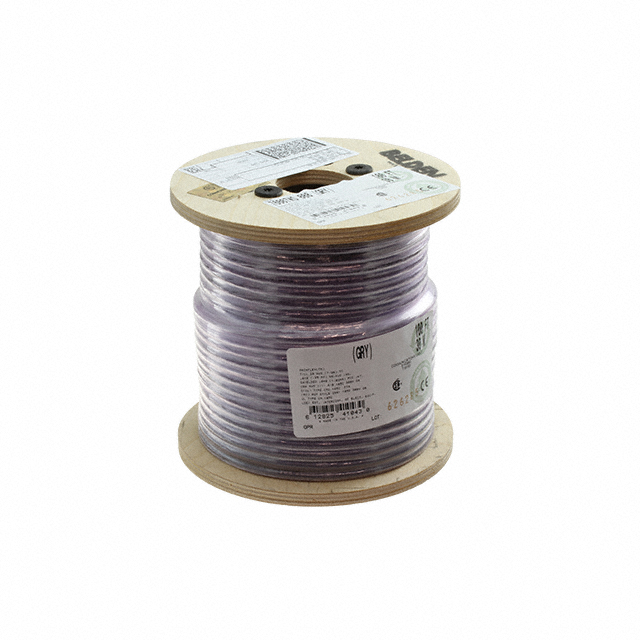

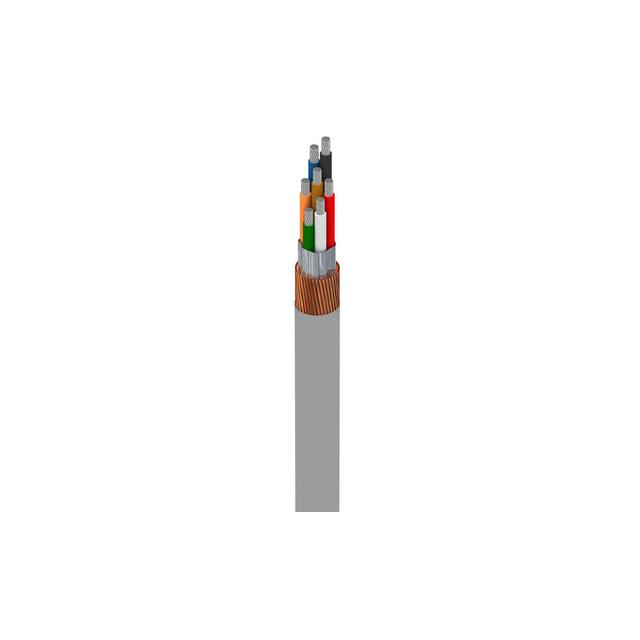

CABLE 7COND 28AWG CHRM SHD FEET
| Part | Spool Size [x] | Spool Size [x] | Shield Material | Shield Coverage | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Cable Type | Features | Conductor Material | Shield Type | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Jacket (Insulation) Material | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 304.8 m | 1000 ft | Aluminum Copper Tinned | 90 % 100 % | 300 VDC | 0.223 " | 5.66 mm | 7 | Multi-Conductor | Oil Resistant | Copper Tinned | Foil Spiral | Enter Number of Feet in Order Quantity | 1.016 mm | 0.04 in | Chrome | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 7 | 36 AWG | 28 AWG | ||
 Belden Inc. | Aluminum Copper Tinned | 90 % 100 % | 300 VDC | 0.223 " | 5.66 mm | 7 | Multi-Conductor | Oil Resistant | Copper Tinned | Foil Spiral | 1.016 mm | 0.04 in | Chrome | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 7 | 36 AWG | 28 AWG | 100 ft | 30.5 m |
