RACM40-05 Series

Catalog

AC/DC PCB MOUNT POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 30 W, 5 V, 6 A

Part	Load Regulation	Line Regulation	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Number of Outputs	Voltage - Output 1	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output (Max) [Max]	Efficiency	Mounting Type	Features	Applications	Type	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Current - Output 1	Standard Number	Voltage - Isolation

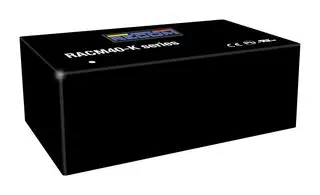

Recom Power RACM40-05SK-T	0.7 %	0.1 %	-40 °C	85 °C	CE CSA cURus EAC	1	5 V	30 Watts	3.28 in 83.2 mm	1.2 in 30.4 mm	1.83 in 46.4 mm	80 VAC 120 VDC	264 VAC 370 VDC	6 A	87 %	Through Hole	Baseplate Standby Output Universal Input	Medical	Enclosed	6-DIP Module
Recom Power RACM40-05SK/OF/PCB-T	0.7 %	0.1 %	-40 °C	85 °C	CE CSA cURus	1	5 V	30 Watts	78.3 mm			80 VAC 120 VDC	264 VAC 370 VDC	6 A	87 %	Through Hole	Standby Output Universal Input	Medical	Open Frame	7-DIP Module 6 Leads	3.08 in	1.6 in	40.6 mm	28.9 mm	1.14 in
Recom Power RACM40-05SK/OF/2X3			-40 °C	85 °C	CE CSA cURus	1	5 V	30 Watts	78.3 mm			80 VAC 120 VDC	264 VAC 370 VDC		87 %	Chassis Mount	Standby Output Universal Input	Medical	Open Frame		3.08 in	2.09 "	53 mm	25.5 mm	1 in	6 A	60601-1	4000 V

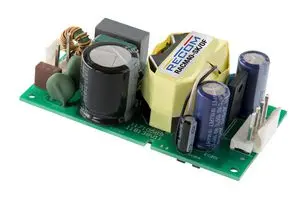

Recom Power RACM40-05SK/OF-CTN			-40 °C	85 °C	CE CSA cURus	1	5 V	30 Watts	78.3 mm			80 VAC 120 VDC	264 VAC 370 VDC		87 %	Chassis Mount	Standby Output Universal Input	Medical	Open Frame		3.08 in	1.6 in	40.6 mm	25.5 mm	1 in	6 A	60601-1	4000 V
Recom Power RACM40-05SK/OF			-40 °C	85 °C	CE CSA cURus	1	5 V	30 Watts	78.3 mm			80 VAC 120 VDC	264 VAC 370 VDC		87 %	Chassis Mount	Standby Output Universal Input	Medical	Open Frame		3.08 in	1.6 in	40.6 mm	25.5 mm	1 in	6 A	60601-1	4000 V
