HMC252 Series

GaAs MMIC SP6T Non-Reflective Switch, DC - 3 GHz

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

GaAs MMIC SP6T Non-Reflective Switch, DC - 3 GHz

Part	Frequency Range [Max]	Frequency Range [Min]	Package / Case [y]	Package / Case	Impedance	Mounting Type	Isolation	IIP3	Topology	Voltage - Supply	Insertion Loss	P1dB	Test Frequency	RF Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Supplied Contents	For Use With/Related Products	Utilized IC / Part	Frequency [Max]	Frequency [Min]	Contents	Type	Voltage - Supply [Min]	Voltage - Supply [Max]
Analog Devices Inc./Maxim Integrated HMC252QS24	3 GHz	0 Hz	0.154 in 3.9 mm Width	24-SSOP	50 Ohms	Surface Mount	29 dB	46 dBm	Absorptive	3.3 V 5 VDC	1.3 dB	24 dBm	3 GHz	General Purpose	SP6T	85 °C	-40 C	24-QSOP
Analog Devices Inc./Maxim Integrated HMC252AQS24TR	2.5 GHz	0 Hz	0.154 in 3.9 mm Width	24-SSOP	50 Ohms	Surface Mount	40 dB	46 dBm	Absorptive		1 dB		1 GHz	CDMA		85 °C	-40 C	24-QSOP

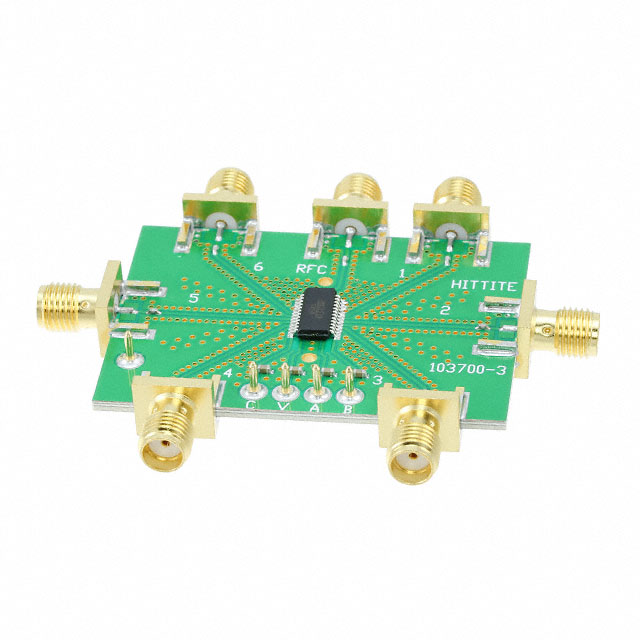

Analog Devices Inc./Maxim Integrated EV1HMC252AQS24																			Board(s)	HMC252AQS24	HMC252AQS24	3 GHz	0 Hz	Board(s)	Switch SP6T
Analog Devices Inc./Maxim Integrated HMC252QS24E	3 GHz	0 Hz	0.154 in 3.9 mm Width	24-SSOP	50 Ohms	Surface Mount	29 dB	46 dBm	Absorptive	3.3 V 5 VDC	1.3 dB	24 dBm	3 GHz	General Purpose	SP6T	85 °C	-40 C	24-QSOP
Analog Devices Inc./Maxim Integrated 101673-HMC252QS24																			Board(s)	HMC252QS24	HMC252QS24	3 GHz	0 Hz	Board(s)	Switch SP6T
Analog Devices Inc./Maxim Integrated HMC252QS24ETR	3 GHz	0 Hz	0.154 in 3.9 mm Width	24-SSOP	50 Ohms	Surface Mount	29 dB	46 dBm	Absorptive	3.3 V 5 VDC	1.3 dB	24 dBm	3 GHz	General Purpose	SP6T	85 °C	-40 C	24-QSOP
Analog Devices Inc./Maxim Integrated HMC252QS24TR	3 GHz	0 Hz	0.154 in 3.9 mm Width	24-SSOP	50 Ohms	Surface Mount	29 dB	46 dBm	Absorptive	3.3 V 5 VDC	1.3 dB	24 dBm	3 GHz	General Purpose	SP6T	85 °C	-40 C	24-QSOP
Analog Devices Inc./Maxim Integrated HMC252AQS24E	3 GHz	0 Hz	0.154 in 3.9 mm Width	24-SSOP	50 Ohms	Surface Mount	32 dB	47 dBm			1.4 dB	28 dBm	3 GHz	General Purpose	SP6T	85 °C	-40 C	24-QSOP								3 V	5 V

Catalog

GaAs MMIC SP6T Non-Reflective Switch, DC - 3 GHz

Description

The HMC252AQS24E is low-cost non-reflective SP6T switches in 24-lead QSOP packages featuring wideband operation from DC to 3.0 GHz. The switch offers a single positive bias and true TTL/CMOS compatibility. A 3:6 decoder is integrated on the switch requiring only 3 control lines and a positive bias to select each path. The HMC252AQS24E SP6T replaces multiple configurations of SP4T and SPDT MMIC switches and logic drivers.ApplicationsBase stationCATV / DBSMMDS and wireless LANTest equipment
