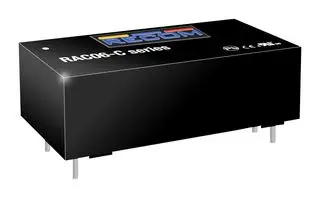

RAC06-S_DC Series
Manufacturer: Recom Power
Beta
⌘K
AC/DC PCB MOUNT POWER SUPPLY (PSU), 1 OUTPUT, 6 W, 5 V, 1.2 A
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Mounting Type | Package / Case | Current - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output 1 | Standard Number | Efficiency | Number of Outputs | Features | Approval Agency | Applications | Type | Power (Watts) | Voltage - Input [Max] | Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 53.5 mm | 27.8 mm | 2.11 " | 16.6 mm | 0.65 in | 1.09 " | Through Hole | 5-DIP Module 4 Leads | 1.2 A | -25 °C | 75 °C | 5 V | 60950-1 | 75 % | 1 | Universal Input | CE cULus EN | ITE (Commercial) | Enclosed | 6 W | 264 VAC 370 VDC | 80 VAC 115 V |
 Recom Power | 53.5 mm | 27.8 mm | 2.11 " | 16.6 mm | 0.65 in | 1.09 " | Through Hole | 5-DIP Module | -25 °C | 75 °C | 15 V | 60950-1 | 79 % | 2 | Universal Input | CE cULus EN | ITE (Commercial) | Enclosed | 6 W | 264 VAC 370 VDC | 80 VAC 115 V | |
Recom Power | 53.5 mm | 27.8 mm | 2.11 " | 16.6 mm | 0.65 in | 1.09 " | Through Hole | 5-DIP Module 4 Leads | 500 mA | -25 °C | 75 °C | 12 V | 60950-1 | 78 % | 1 | Universal Input | CE cULus EN | ITE (Commercial) | Enclosed | 6 W | 264 VAC 370 VDC | 80 VAC 115 V |
 Recom Power | 53.5 mm | 27.8 mm | 2.11 " | 16.6 mm | 0.65 in | 1.09 " | Through Hole | 5-DIP Module 4 Leads | 250 mA | -25 °C | 75 °C | 24 V | 60950-1 | 80 % | 1 | Universal Input | CE cULus EN | ITE (Commercial) | Enclosed | 6 W | 264 VAC 370 VDC | 80 VAC 115 V |
