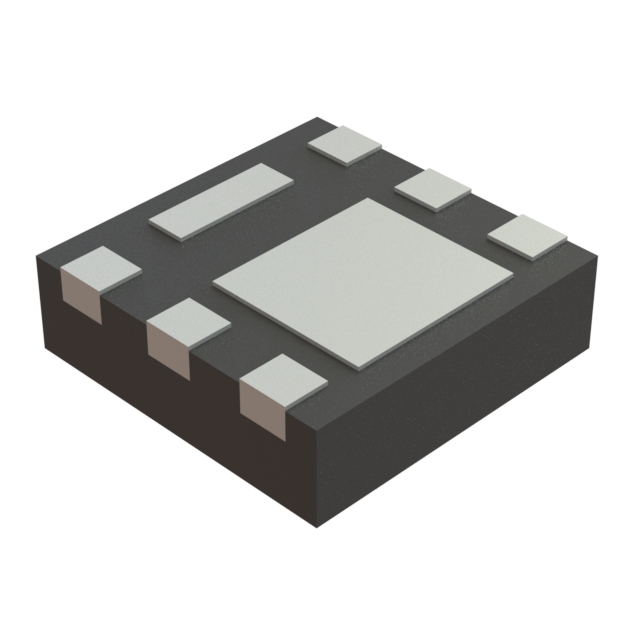

Nch 60V 7A, HUML2020L8, Power MOSFET
Description
AI
RF4L070BG is a power MOSFET with low on - resistance, suitable for switching.
Beta
⌘K
Nch 60V 7A, HUML2020L8, Power MOSFET
Nch 60V 7A, HUML2020L8, Power MOSFET
| Part | Vgs (Max) | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs [Max] | Drain to Source Voltage (Vdss) | Rds On (Max) @ Id, Vgs | FET Type | Drive Voltage (Max Rds On, Min Rds On) | Mounting Type | Technology | Supplier Device Package | Current - Continuous Drain (Id) @ 25°C | Operating Temperature | Input Capacitance (Ciss) (Max) @ Vds [Max] | Power Dissipation (Max) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | 20 V | 2.5 V | 7.6 nC | 60 V | 27 mOhm | N-Channel | 4.5 V 10 V | Surface Mount | MOSFET (Metal Oxide) | DFN2020-8S | 7 A | 150 °C | 460 pF | 2 W | 8-PowerUDFN |
