M8 Series

Catalog

CONN RING CIRC 8AWG #1/4 CRIMP

Part	Termination	Wire Gauge	Length - Overall [x]	Length - Overall [x]	Terminal Type	Thickness	Thickness	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Mounting Type	Insulation	Features	Length - Overall	Length - Overall	Width - Outer Edges [y]	Width - Outer Edges [y]	Contact Finish	Contact Material
3M Electronic Specialty M8-14R/SX	Crimp	8 AWG	0.95 "	24.13 mm	Circular	50 mils	0.05 in	0.47 in	11.94 mm	0.25 Stud	Free Hanging (In-Line)	Non-Insulated	Brazed Seam

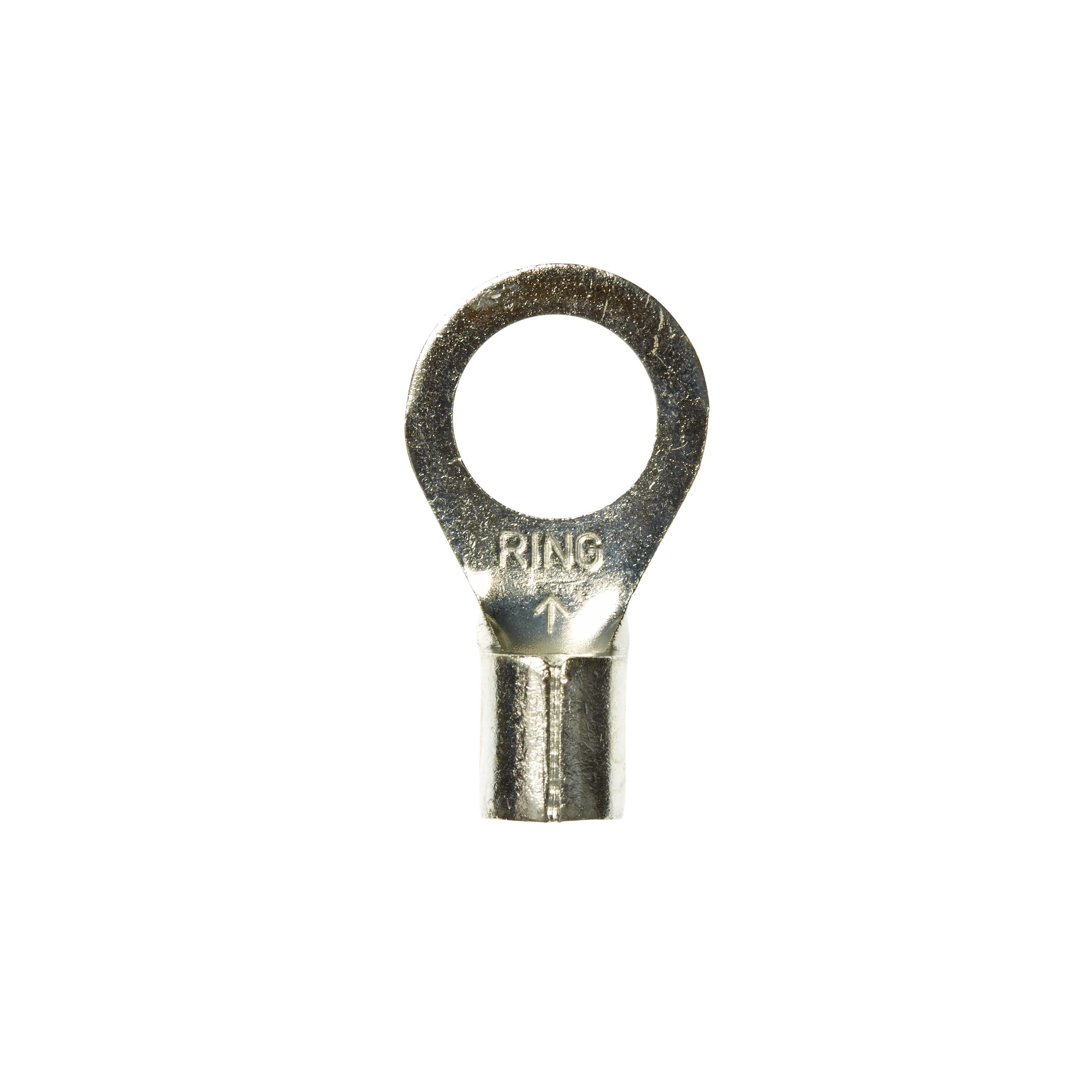

3M Electronic Specialty M8-38RK	Crimp	8 AWG			Circular	50 mils	0.05 in			0.375 Stud	Free Hanging (In-Line)	Non-Insulated	Brazed Seam	1.06 in	26.92 mm	14.99 mm	0.59 in
3M Electronic Specialty M8-38RX-BOTTLE	Crimp	8 AWG			Circular	50 mils	0.05 in			0.375 Stud	Free Hanging (In-Line)	Non-Insulated	Brazed Seam	1.06 in	26.92 mm	14.99 mm	0.59 in	Tin	Copper ETP
3M Electronic Specialty M8-14R/SK	Crimp	8 AWG	0.95 "	24.13 mm	Circular	50 mils	0.05 in	0.4 in	10.16 mm	0.25 Stud	Free Hanging (In-Line)	Non-Insulated	Brazed Seam
3M Electronic Specialty M8-12R/SK	Crimp	8 AWG	1.41 in	35.81 mm	Circular	50 mils	0.05 in			0.5 Stud	Free Hanging (In-Line)	Non-Insulated	Brazed Seam			20.57 mm	0.81 "
