CSB-115 Series

Catalog

RELAY TIME DELAY 3MIN 10A 120V

Part	Mounting Type	Termination Style	Delay Time [Min]	Delay Time [Max]	Timing Adjustment Method	Voltage - Supply	Function	Circuit	Relay Type	Contact Rating @ Voltage [Min]	Contact Rating @ Voltage [Max]	Contact Rating @ Voltage	Timing Initiate Method	Termination Style
R-K Electronics, Inc. CSB-115A-5B-3M	Socketable	Plug In 11 Pin	1.8 Sec	3 Min	Hand Dial	115 VAC	One Shot	DPDT (2 Form C)	Mechanical Relay	120 VAC	240 VAC	10 A	Input Voltage
R-K Electronics, Inc. CSB-115A-2-5M	Socketable	Plug In	3 Sec	5 Min	Hand Dial	115 VAC	One Shot	DPDT (2 Form C)	Mechanical Relay	120 VAC	240 VAC	10 A	Input Voltage	11 Pin
R-K Electronics, Inc. CSB-115A-5-30S	Socketable	Plug In	0.3 Sec	30 Sec	Hand Dial	115 VAC	One Shot	SPDT (1 Form C)	Mechanical Relay	120 VAC	240 VAC	10 A	Input Voltage

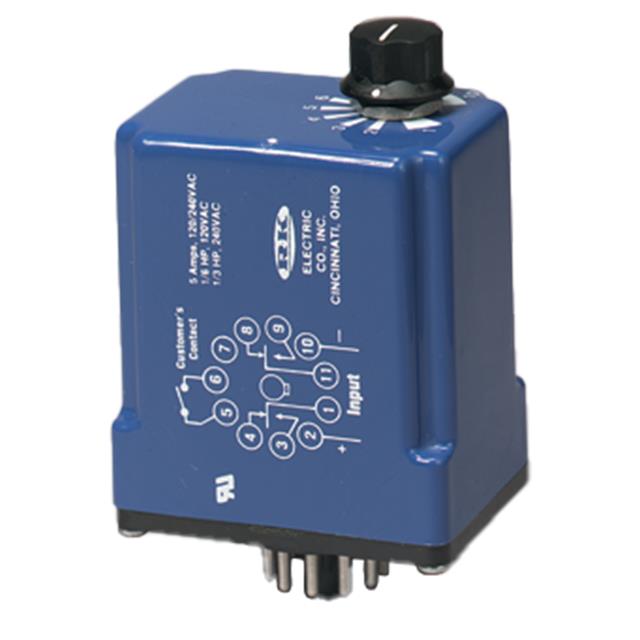

R-K Electronics, Inc. CSB-115A-1-3S	Socketable	Plug In			Fixed	115 VAC	One Shot	DPDT (2 Form C)	Mechanical Relay	120 VAC	240 VAC	10 A	Input Voltage	11 Pin
R-K Electronics, Inc. CSB-115A-5-5S	Socketable	Plug In	0.05 Sec	5 Sec	Hand Dial	115 VAC	One Shot	SPDT (1 Form C)	Mechanical Relay	120 VAC	240 VAC	10 A	Input Voltage
R-K Electronics, Inc. CSB-115A-2-3M	Socketable	Plug In	1.8 Sec	3 Min	Hand Dial	115 VAC	One Shot	DPDT (2 Form C)	Mechanical Relay	120 VAC	240 VAC	10 A	Input Voltage	11 Pin
R-K Electronics, Inc. CSB-115A-2-2M	Socketable	Plug In	1.2 Sec	2 Min	Hand Dial	115 VAC	One Shot	DPDT (2 Form C)	Mechanical Relay	120 VAC	240 VAC	10 A	Input Voltage	11 Pin
R-K Electronics, Inc. CSB-115A-5-5H	Socketable	Plug In	3 Cyc	5 Hrs	Hand Dial	115 VAC	One Shot	SPDT (1 Form C)	Mechanical Relay	120 VAC	240 VAC	10 A	Input Voltage
R-K Electronics, Inc. CSB-115A-4-3S	Socketable	Plug In			Fixed	115 VAC	One Shot	SPDT (1 Form C)	Mechanical Relay	120 VAC	240 VAC	10 A	Input Voltage
R-K Electronics, Inc. CSB-115A-5-20M	Socketable	Plug In	12 s	20 Min	Hand Dial	115 VAC	One Shot	SPDT (1 Form C)	Mechanical Relay	120 VAC	240 VAC	10 A	Input Voltage
