M0420SD Series

Catalog

MODULE VF CHAR 4X20 4.84MM

Part	Operating Temperature [Max]	Operating Temperature [Min]	Character Size [y]	Character Size [z]	Format [y]	Format [x]	Display Format [x]	Display Format [y]	Controller Type	Outline L x W x H [z]	Outline L x W x H [x]	Outline L x W x H [y]	Interface	Viewing Area [x]	Viewing Area [y]	Display Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Format

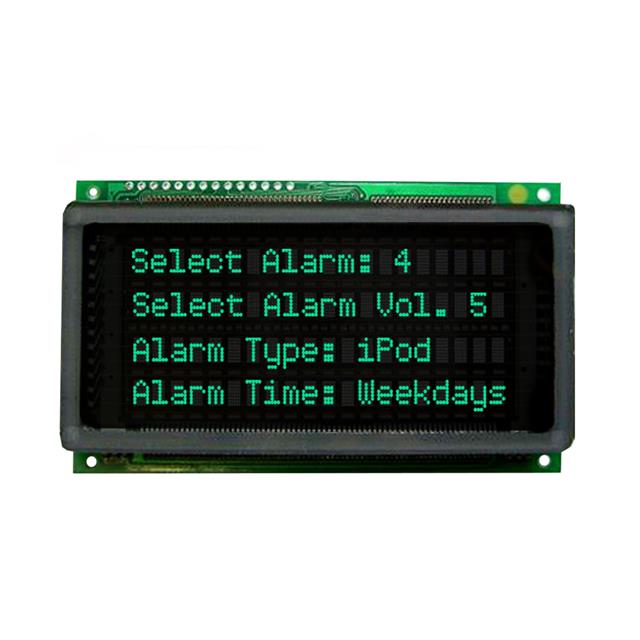

Newhaven Display Intl M0420SD-204SDAR1-3	85 °C	-40 C	2.35 mm	4.84 mm	8 Dots	5 Dots	20	4	PT6314	20.6 mm	100 mm	60 mm	Parallel/Serial	73.6 mm	30.96 mm	Character

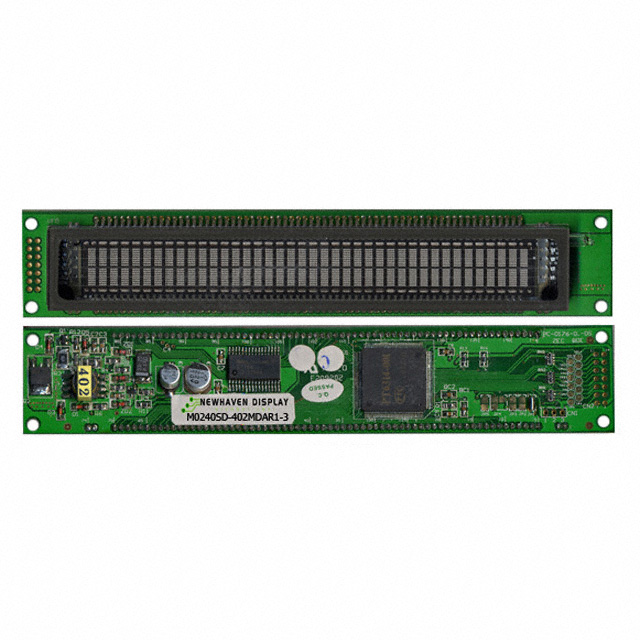

Newhaven Display Intl M0240SD-402MDAR1-3	70 °C	-20 ░C	2.1 mm	5.34 mm	8 Dots	5 Dots	40	2		17.6 mm	182 mm	33.5 mm	Parallel	134.75 mm	11.5 mm	Character	5.5 V	4.5 V

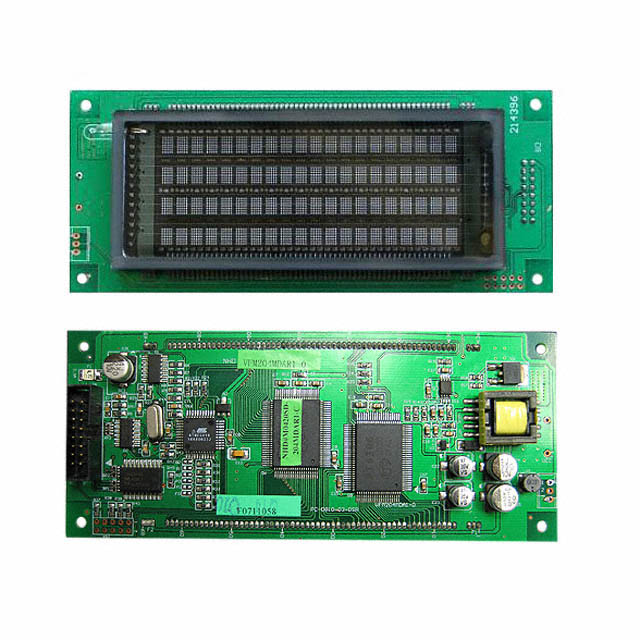

Newhaven Display Intl M0420SD-204MDAR1-C	85 °C	-40 C	3.07 mm	4.87 mm	7	5 Dots	20	4	PT6314	26.5 mm	150 mm	64 mm	Parallel/Serial	89.52 mm	33.07 mm	Character			Dots
