M3BRK Series

Catalog

IDC CABLE - MSR50K/MC50M/MPR50K

Part	Features	Contact Finish	Pitch - Cable	Pitch - Cable	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Number of Positions	Connector Type	Length [x]	Length [x]	Cable Termination	Shielding	Color	Number of Rows [custom]	Length	Length	Length	Number of Positions [custom]
3M Electronic Specialty M3BRK-5018R	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Gold	0.05 in	1.27 mm	30 Áin	0.76 Ám	0.1 in	2.54 mm	50	Socket to Plug	457.2 mm	1.5 ft	IDC	Unshielded	Multiple Ribbon	2
3M Electronic Specialty M3BRK-4018R	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Gold	0.05 in	1.27 mm	30 Áin	0.76 Ám	0.1 in	2.54 mm	40	Socket to Plug	457.2 mm	1.5 ft	IDC	Unshielded	Multiple Ribbon	2
3M Electronic Specialty M3BRK-4060K	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Gold	0.05 in	1.27 mm	30 Áin	0.76 Ám	0.1 in	2.54 mm	40	Socket to Plug			IDC	Unshielded	Multiple Twisted Pair (Flat)	2	1.52 m	60 in

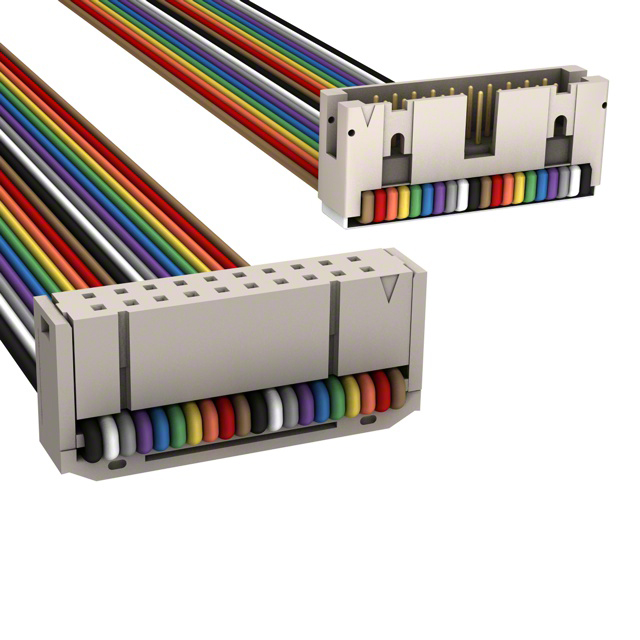

3M Electronic Specialty M3BRK-2018R	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Gold	0.05 in	1.27 mm	30 Áin	0.76 Ám	0.1 in	2.54 mm	20	Socket to Plug	457.2 mm	1.5 ft	IDC	Unshielded	Multiple Ribbon	2

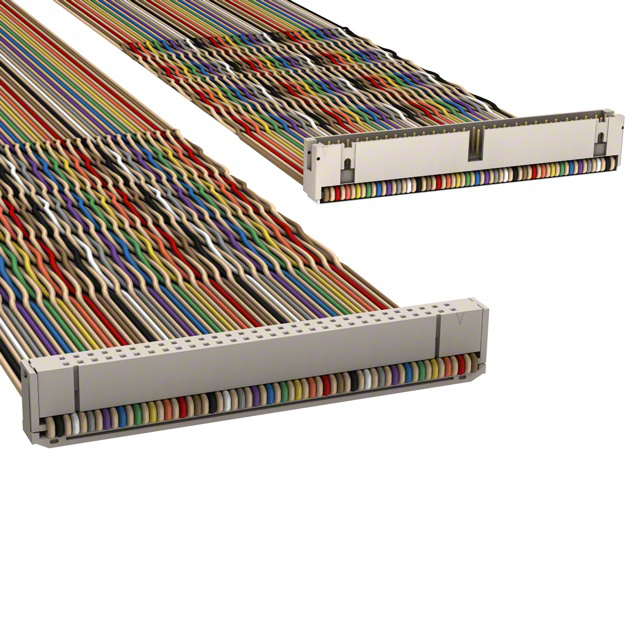

3M Electronic Specialty M3BRK-6040K	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Gold	0.05 in	1.27 mm	30 Áin	0.76 Ám	0.1 in	2.54 mm	60	Socket to Plug			IDC	Unshielded	Multiple Twisted Pair (Flat)	2	1.02 m	3.34 ft
3M Electronic Specialty M3BRK-6006J	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Gold	0.05 in	1.27 mm	30 Áin	0.76 Ám	0.1 in	2.54 mm	60	Socket to Plug			IDC	Unshielded		2	152.4 mm	0.5 '	6 "
3M Electronic Specialty M3BRK-1618R	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Gold	0.05 in	1.27 mm	30 Áin	0.76 Ám	0.1 in	2.54 mm	16	Socket to Plug	457.2 mm	1.5 ft	IDC	Unshielded	Multiple Ribbon	2
3M Electronic Specialty M3BRK-5060K	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Gold	0.05 in	1.27 mm	30 Áin	0.76 Ám	0.1 in	2.54 mm	50	Socket to Plug			IDC	Unshielded	Multiple Twisted Pair (Flat)	2	1.52 m	60 in
3M Electronic Specialty M3BRK-3440K	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Gold	0.05 in	1.27 mm	30 Áin	0.76 Ám	0.1 in	2.54 mm		Socket to Plug			IDC	Unshielded	Multiple Twisted Pair (Flat)	2	1.02 m	3.34 ft		34
3M Electronic Specialty M3BRK-3406J	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Gold	0.05 in	1.27 mm	30 Áin	0.76 Ám	0.1 in	2.54 mm		Socket to Plug			IDC	Unshielded		2	152.4 mm	0.5 '	6 "	34
