LPT600/71dmn Series

Antennas Direct Mnt, Monopole White 617-7125MHz

Manufacturer: Pulse Electronics

Catalog

Antennas Direct Mnt, Monopole White 617-7125MHz

Catalog

Antennas Direct Mnt, Monopole White 617-7125MHz

Part	VSWR	Termination	RF Family/Standard	Applications	Mounting Type	Ingress Protection	Gain	Frequency (Center/Band)	Frequency Group	Frequency Range [Max]	Frequency Range [Min]	Number of Bands	Antenna Type	Power - Max [Max]	Features	Height (Max) [z]	Height (Max) [z]

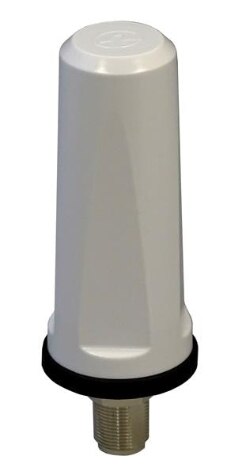

Pulse Electronics LPT600/71DMNW	2 3	N Type Female	Cellular WiFi	4G 5G Wi-Fi	Connector Mount	IP67	2 dBi 3.9 dBi 4.7 dBi 5.3 dBi 6.1 dBi	1.94 GHz 2.5 GHz 3.6 GHz 6.0125 GHz 788.5 MHz	Wide Band	2.17 GHz 2.7 GHz 3.8 GHz 7.125 GHz 960 MHz	1.71 GHz 2.3 GHz 3.4 GHz 4.9 GHz 617 MHz	5	Dome	60 W

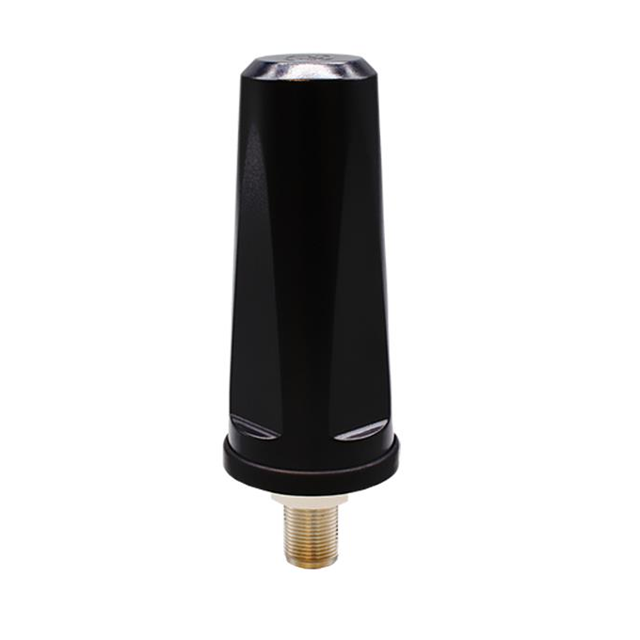

Pulse Electronics LPT600/71DMN	2 3	N Type Female	Cellular WiFi	4G 5G Wi-Fi	Connector Mount	IP67	2 dBi 3.9 dBi 4.7 dBi 5.3 dBi 6.1 dBi	1.94 GHz 2.5 GHz 3.6 GHz 6.0125 GHz 788.5 MHz	Wide Band	2.17 GHz 2.7 GHz 3.8 GHz 7.125 GHz 960 MHz	1.71 GHz 2.3 GHz 3.4 GHz 4.9 GHz 617 MHz	5	Dome	60 W
Pulse Electronics SKF5G62311DM	2	RP-SMA Male (1) SMA Male (2)	Cellular Navigation WiFi	5G GNSS LTE Wi-Fi	Direct Mount	IP67		1.2276 GHz 1.561 GHz 1.575 GHz 1.602 GHz 2.205 GHz 2.45 GHz 3.75 GHz 4.7 GHz 5.5375 GHz 6.0125 GHz 788.5 MHz	Wide Band	1.2286 GHz 1.563 GHz 1.576 GHz 1.606 GHz 2.5 GHz 2.7 GHz 4.2 GHz 5 GHz 5.925 GHz 7.125 GHz 960 MHz	1.2266 GHz 1.559 GHz 1.574 GHz 1.598 GHz 1.71 GHz 2.4 GHz 3.3 GHz 4.4 GHz 4.9 GHz 5.15 GHz 617 MHz	11	Module	45 W	Cable - 5.18M LNA	2.441 in	62 mm
