D2536 Series

Catalog

CONN HEADER VERT 36POS 2.54MM

Part	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Termination	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Insulation Material	Number of Positions Loaded	Mounting Type	Contact Type	Features	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Mating	Number of Positions	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Current Rating (Amps)	Shrouding	Number of Rows [custom]	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Overall Contact Length	Overall Contact Length	Style	Insulation Color

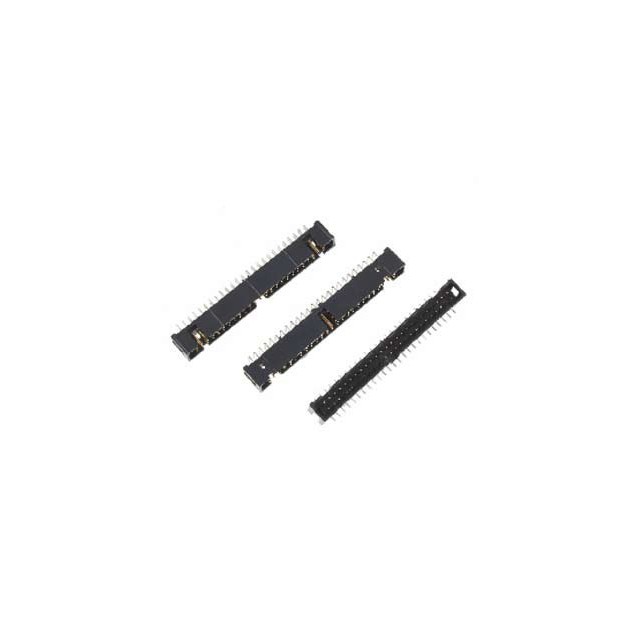

3M Electronic Specialty D2536-5002-AR	0.253 " 0.338 in	6.43 mm 8.59 mm	39.4 çin	1 çm	Brass Copper Alloy	Solder	Tin	-55 C	105 ░C	Push-Pull	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Through Hole	Male Pin	Keying Slot	0.112 in	2.84 mm	Gold	36	0.1 "	2.54 mm	0.1 in	2.54 mm	Square	1.75 A	Shrouded - 4 Wall	2	Header	0.25 µm	10 µin	UL94 V-0	0.492 in	12.5 mm	Board to Cable/Wire	Black
