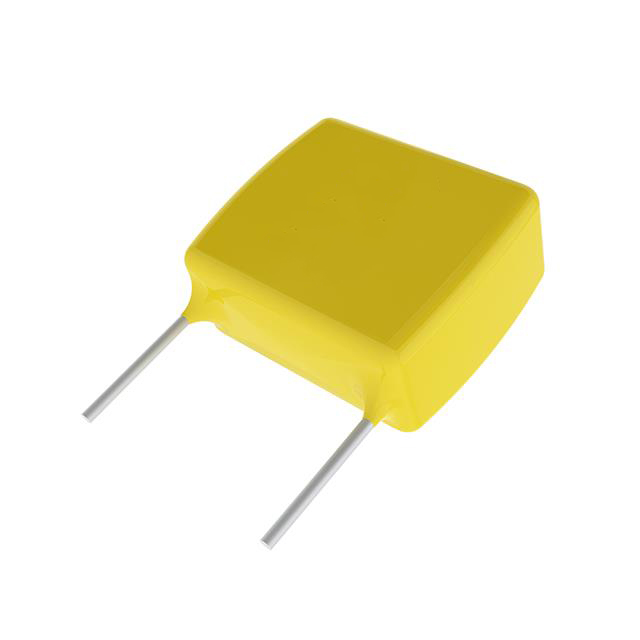

GoldMax 300 Comm Z5U Series

Manufacturer: KEMET

Catalog

CAPACITOR,CERAMIC,330NF,50VDC,20-% TOL,20+% TOL,Z5U-TC CODE,-56,22%-TC ROHS COMPLIANT: YES

Part	Capacitance	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Height - Seated (Max)	Height - Seated (Max) [Max]	Tolerance	Lead Style	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Applications	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance [Max]	Tolerance [Min]	Height - Seated (Max) [Max]
KEMET C324C334M5U5TA	0.33 µF	50 VDC	3.18 mm	0.2 in	5.08 mm	0.125 "	Radial	5.84 mm	0.23 in	20 %	Formed Leads - Kinked	Z5U	10 °C	85 °C	Through Hole	General Purpose	2.54 mm	0.1 in
KEMET C320C473Z5U5TA		50 VDC	3.18 mm	0.2 in	5.08 mm	0.125 "	Radial				Straight	Z5U	10 °C	85 °C	Through Hole	Bypass Decoupling	2.54 mm	0.1 in	0.29 in	7.36 mm	80 %	-20 %
KEMET C320C334M5U5TA7301	0.33 µF	50 VDC	3.18 mm	0.2 in	5.08 mm	0.125 "	Radial			20 %	Straight	Z5U	10 °C	85 °C	Through Hole	Bypass Decoupling	2.54 mm	0.1 in	0.29 in	7.36 mm
KEMET C324C104M5U5TA7301	100000 pF	50 VDC	3.18 mm	0.2 in	5.08 mm	0.125 "	Radial	5.84 mm	0.23 in	20 %	Formed Leads - Kinked	Z5U	10 °C	85 °C	Through Hole	Bypass Decoupling	2.54 mm	0.1 in
KEMET C330C105M1U5TA	1 µF	100 V	4.07 mm	0.28 in	7.11 mm	0.16 in	Radial			20 %	Formed Leads	Z5U	10 °C	85 °C	Through Hole	Bypass Decoupling	5.08 mm	0.2 in	0.36 in	9.14 mm
KEMET C340C275Z5U5TA	2.7 µF	50 VDC	4.07 mm	0.29 "	7.36 mm	0.16 in	Radial		0.5 in		Straight	Z5U	10 °C	85 °C	Through Hole	Bypass Decoupling	5.08 mm	0.2 in			80 %	-20 %	12.7 mm
KEMET C322C103M1U5TA7301	10000 pF	100 V	3.18 mm	0.2 in	5.08 mm	0.125 "	Radial		0.26 in	20 %	Formed Leads	Z5U	10 °C	85 °C	Through Hole	General Purpose	5.08 mm	0.2 in					6.6 mm
KEMET C333C224M1U5TA7301	0.22 µF	100 V	4.07 mm	0.28 in	7.11 mm	0.16 in	Radial			20 %	Formed Leads - Kinked	Z5U	10 °C	85 °C	Through Hole	Bypass Decoupling	5.08 mm	0.2 in	0.4 in	10.16 mm
KEMET C350C335M5U5TA	3.3 µF	50 VDC	5.08 mm	0.33 in	8.38 mm	0.2 in	Radial			20 %	Formed Leads	Z5U	10 °C	85 °C	Through Hole	Bypass Decoupling	10.16 mm	0.4 "	0.4 in	10.16 mm
KEMET C333C224Z1U5TA	0.22 µF	100 V	4.07 mm	0.28 in	7.11 mm	0.16 in	Radial				Formed Leads - Kinked	Z5U	10 °C	85 °C	Through Hole	Bypass Decoupling	5.08 mm	0.2 in	0.4 in	10.16 mm	80 %	-20 %
