MT160 Series

Catalog

SCR MODULE 1.8KV MODULE

Part	Current - Non Rep. Surge 50, 60Hz (Itsm)	Structure	Current - On State (It (AV)) (Max)	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Off State	Mounting Type	Number of SCRs, Diodes	Current - Hold (Ih) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]
MCC (Micro Commercial Components) MT160C18T2-BP	5400 A	Series Connection - All SCRs	160 A	Module	-40 °C	130 °C	1.8 kV	Chassis Mount	2 SCRs	400 mA	150 mA
MCC (Micro Commercial Components) MT160C12T2-BP	5400 A	Series Connection - All SCRs	160 A	Module	-40 °C	130 °C	1.2 kV	Chassis Mount	2 SCRs	400 mA	150 mA
MCC (Micro Commercial Components) MT160C12T2-BP	5400 A	Series Connection - All SCRs	160 A	Module	-40 °C	130 °C	1.2 kV	Chassis Mount	2 SCRs	400 mA	150 mA
MCC (Micro Commercial Components) MT160C08T2-BP	5400 A	Series Connection - All SCRs	160 A	Module	-40 °C	130 °C	800 V	Chassis Mount	2 SCRs	400 mA	150 mA
MCC (Micro Commercial Components) MT160C18T2-BP	5400 A	Series Connection - All SCRs	160 A	Module	-40 °C	130 °C	1.8 kV	Chassis Mount	2 SCRs	400 mA	150 mA
MCC (Micro Commercial Components) MT160C08T2-BP	5400 A	Series Connection - All SCRs	160 A	Module	-40 °C	130 °C	800 V	Chassis Mount	2 SCRs	400 mA	150 mA

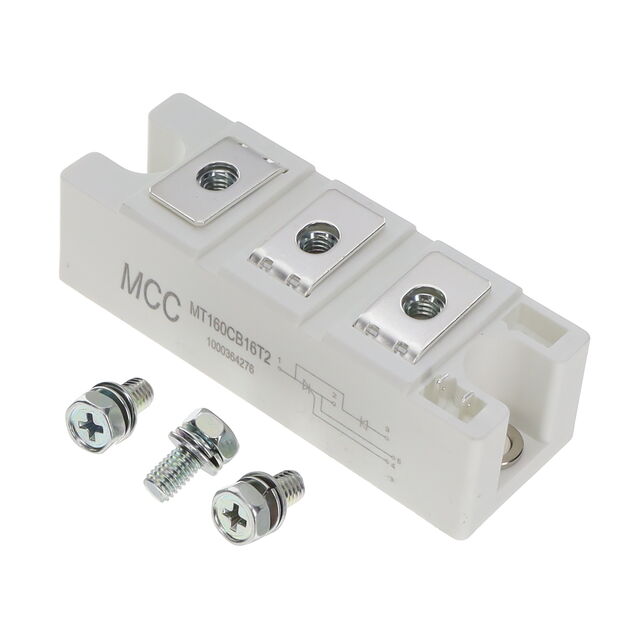

MCC (Micro Commercial Components) MT160CB16T2-BP	5400 A	Series Connection - SCR/Diode	160 A	T2	-40 C	125 °C	1.6 kV	Chassis Mount	1 Diode	400 mA	150 mA
