6GK57982 Series
Manufacturer: Siemens
Beta
⌘K

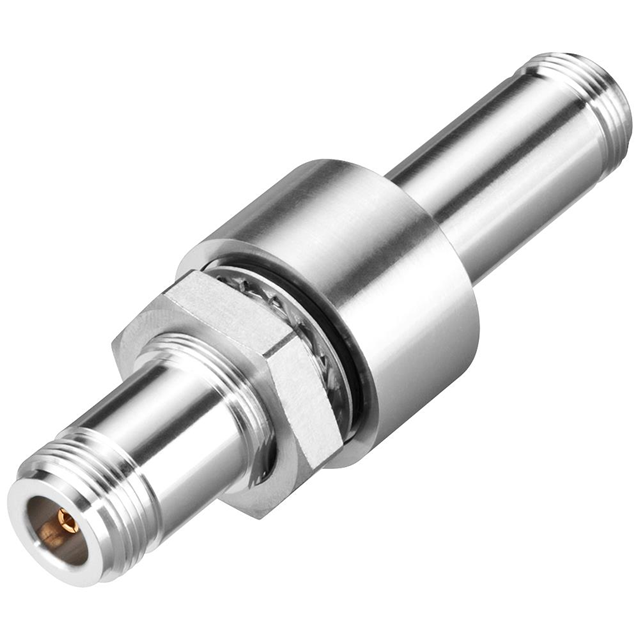

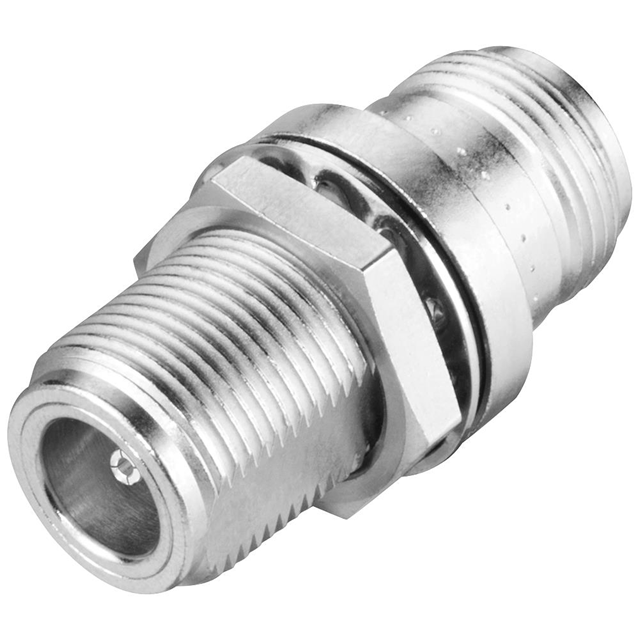

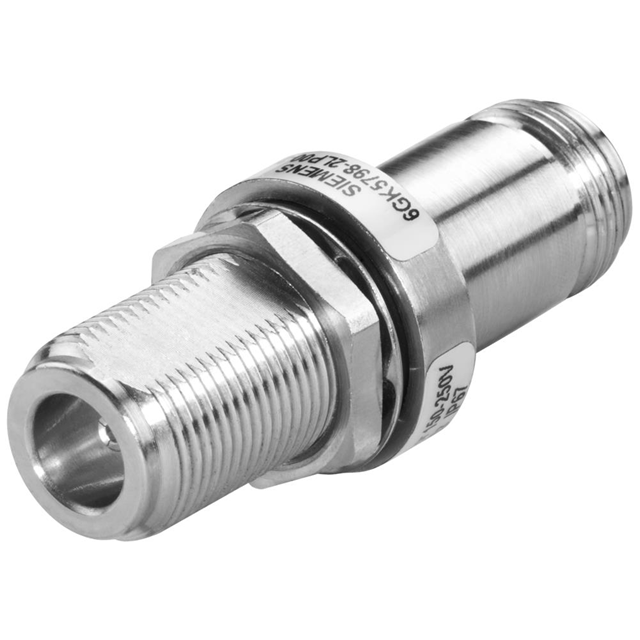

IWLAN LIGHTNING PROTECTOR LP 798
| Part | Insertion Loss | Operating Temperature [Max] | Operating Temperature [Min] | Center Gender | Frequency - Max [Max] | Adapter Series | Adapter Type | Ingress Protection | Mounting Feature | Impedance | Convert To (Adapter End) | Conversion Type | Style | Mounting Type | Convert From (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Siemens | 0.2 dB | 85 °C | -40 C | Female to Female | 6000 MHz | N to N | Jack to Jack | IP68 - Dust Tight Waterproof | Bulkhead | 50 Ohms | N Jack Female Socket | Same Series | Straight | Panel Mount | Female Socket N Jack |
 Siemens | 85 °C | -40 C | Female to Female | 11 GHz | N to N | Jack to Jack | IP68 - Dust Tight Waterproof | Bulkhead | 50 Ohms | N Jack Female Socket | Same Series | Straight | Panel Mount | Female Socket N Jack | |
 Siemens | 0.16 dB | 85 °C | -40 C | Female to Female | 6000 MHz | N to N | Jack to Jack | IP66 IP68 | Bulkhead | 50 Ohms | N Jack Female Socket | Same Series | Straight | Panel Mount | Female Socket N Jack |
