19432240 Series
Manufacturer: HARTING
Beta
⌘K

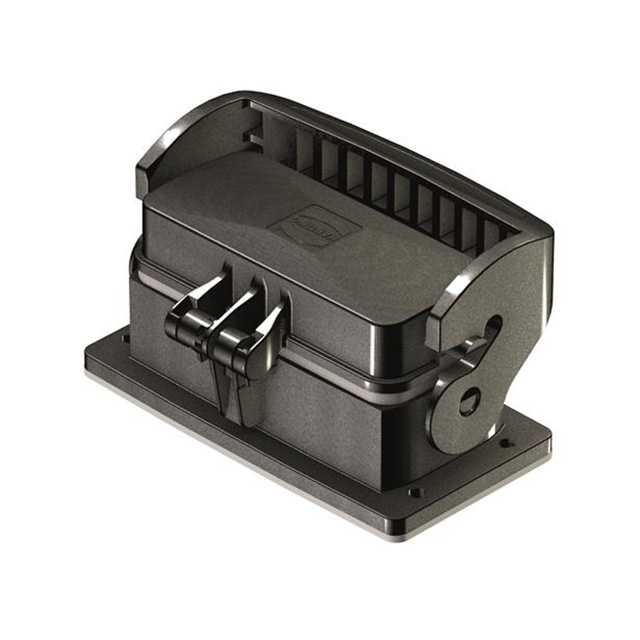

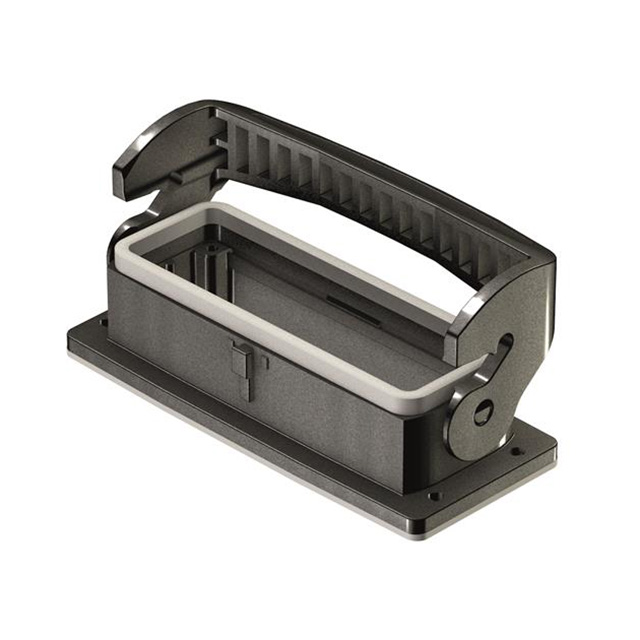

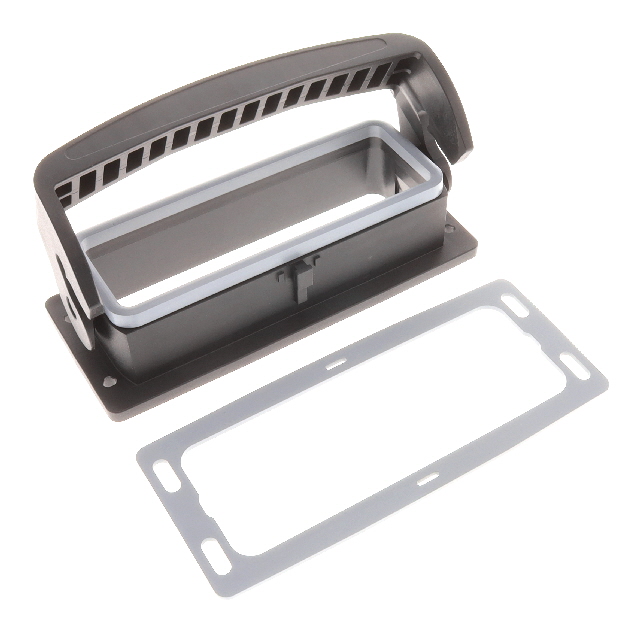

HEAVY DUTY HOUSING, 24B, 1LEVER/BULKHEAD
| Part | Features | Connector Type | Size | Style | Housing Color | Ingress Protection | Housing Material | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Lock Location |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Cover | Base - Panel Mount | 24 B | Bottom Entry | Black | IP66 - Dust Tight Water Resistant | Glass Filled Nylon Polyamide (PA) | 60 mm | 1.421 in | 5.551 " | 36.1 mm | 141 mm | 2.362 in | 125 °C | -40 C | Locking Clip (1) on Base Bottom |
 HARTING | Base - Panel Mount | 24 B | Bottom Entry | Black | IP66 - Dust Tight Water Resistant | Glass Filled Nylon Polyamide (PA) | 60 mm | 1.421 in | 5.551 " | 36.1 mm | 141 mm | 2.362 in | 125 °C | -40 C | Locking Clip (1) on Base Bottom | |
 HARTING | Base - Panel Mount | 24 B | Bottom Entry | Black | IP66 - Dust Tight Water Resistant | Glass Filled Nylon Polyamide (PA) | 60 mm | 1.421 in | 5.551 " | 36.1 mm | 141 mm | 2.362 in | 125 °C | -40 C | Locking Clip (1) on Base Bottom |
