305-032 Series
Manufacturer: EDAC Inc.
Beta
⌘K

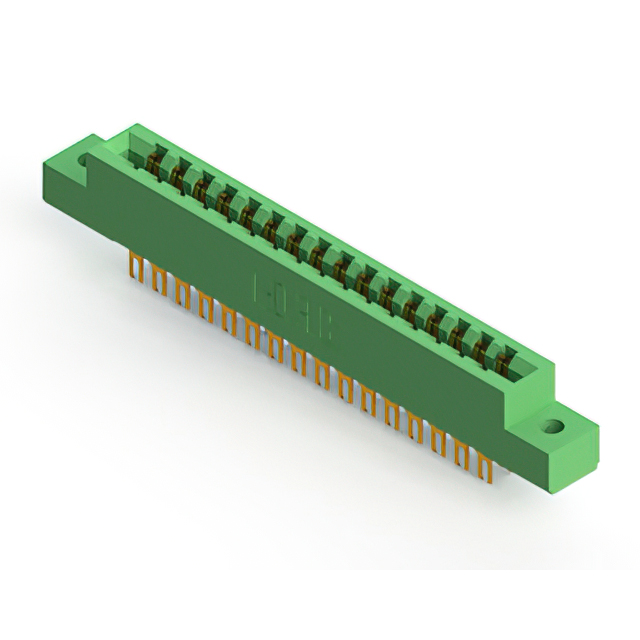

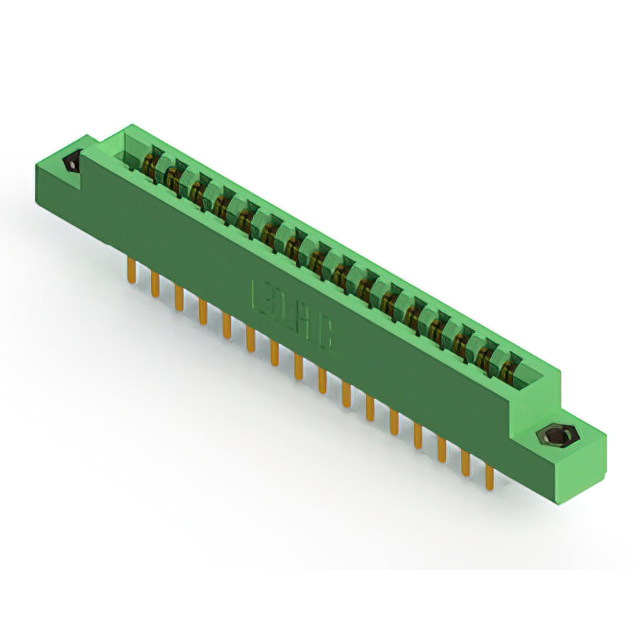

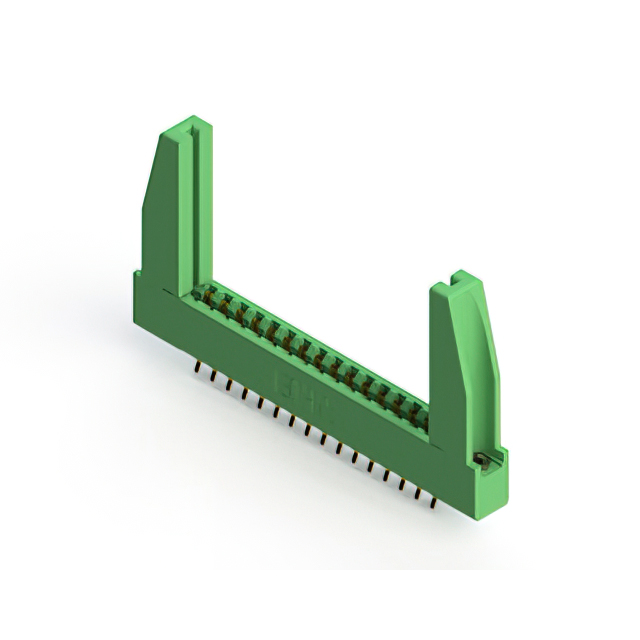

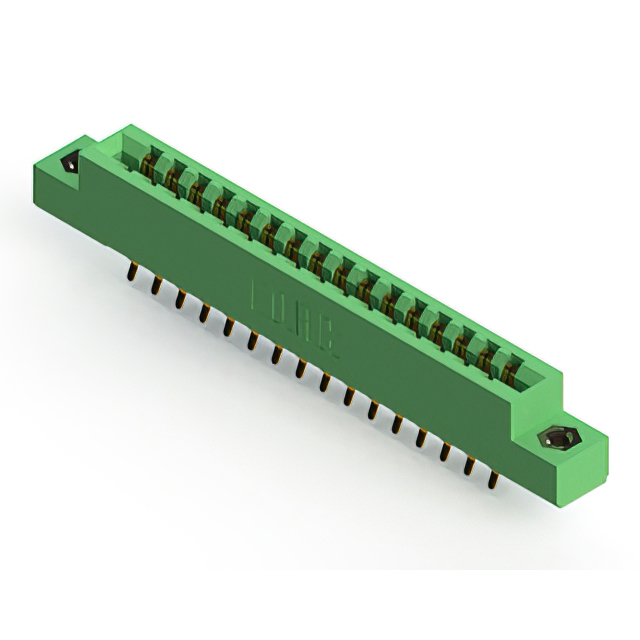

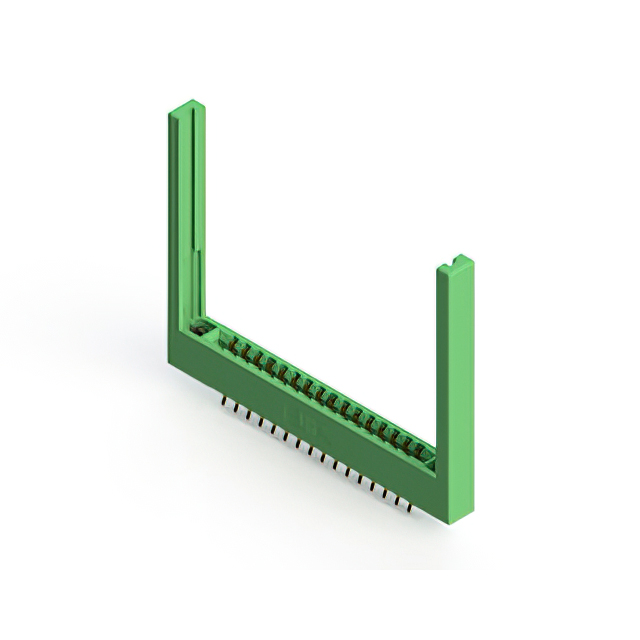

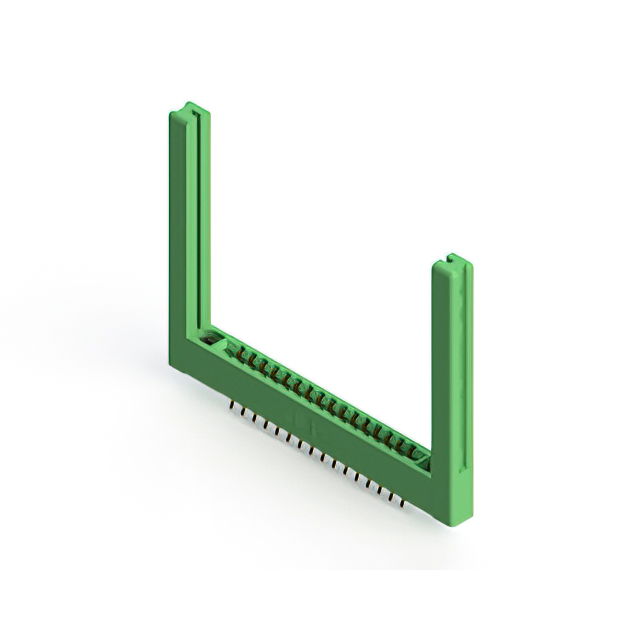

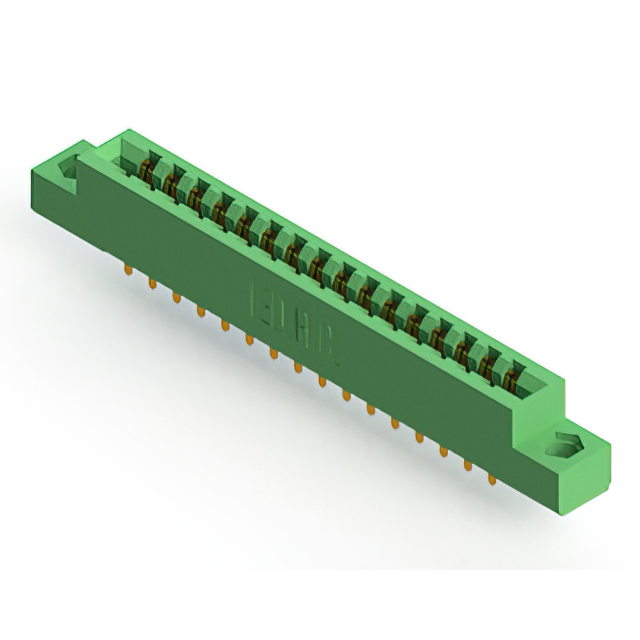

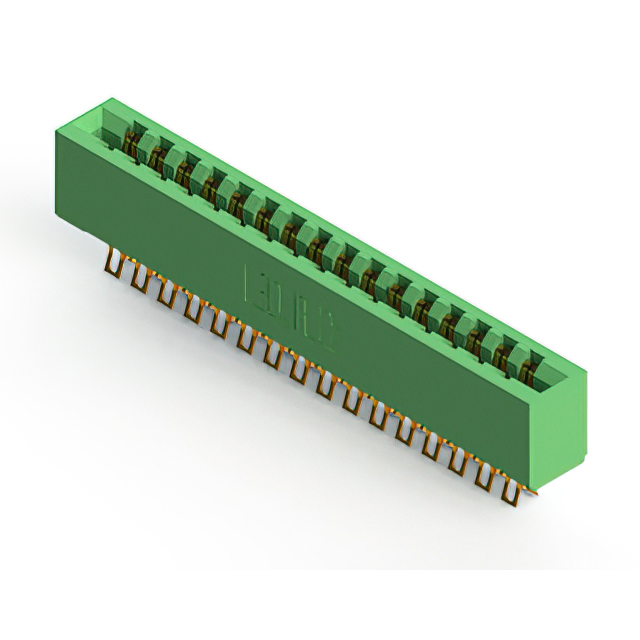

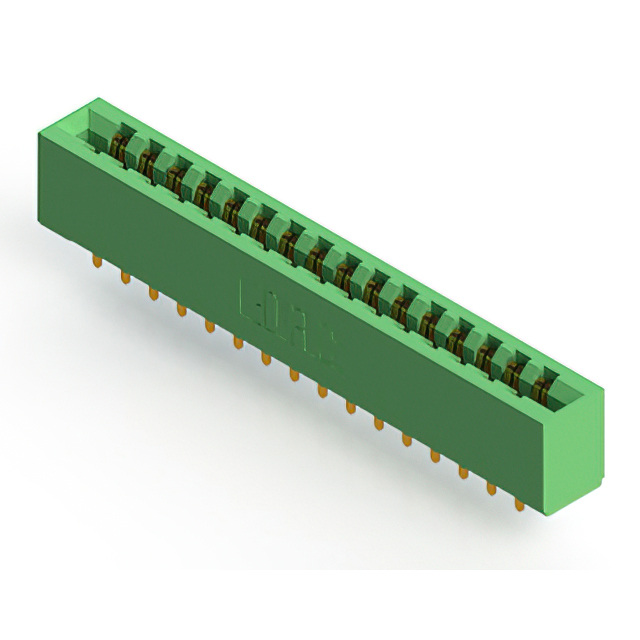

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 32 CONTACTS, PANEL MOUNT, STRAIGHT
| Part | Termination Rows | Material - Insulation | Operating Temperature (Min) | Operating Temperature (Max) | Termination | Pitch | Contact Finish Thickness | Number of Positions | Mounting Type | Contact Finish | Card Type | Color | Flange Feature Diameter | Flange Feature | Card Thickness (Min) | Card Thickness (Max) | Contact Material | Contact Type | Read Out | Gender | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 rows | Polyester Thermoplastic | -40 °C | 105 °C | Solder Eyelet(s) | 0.156 in | 10 Ąin | 16 32 | Panel Mount | Gold | Dual Edge Non Specified | Green | 0.116 in | Floating Bobbin Flush Mount | 0.054 in | 0.07 in | Copper Alloy | Semi Bellows | Dual | Female | 2 | |
 EDAC Inc. | 2 rows | Polyester Thermoplastic | -40 °C | 105 °C | Solder | 0.156 in | 10 Ąin | 16 32 | Board Edge Straddle Mount | Gold | Dual Edge Non Specified | Green | 4-40 Flush Mount Threaded Insert Top Opening | 0.054 in | 0.07 in | Copper Alloy | Semi Bellows | Dual | Female | 2 | Card Extender Card Guides | |
 EDAC Inc. | 2 rows | Polyester Thermoplastic | -40 °C | 105 °C | Solder | 0.156 in | 10 Ąin | 16 32 | Board Edge Straddle Mount | Gold | Dual Edge Non Specified | Green | 4-40 Flush Mount Threaded Insert Top Opening | 0.054 in | 0.07 in | Copper Alloy | Semi Bellows | Dual | Female | 2 | Card Extender Card Guides | |
 EDAC Inc. | 2 rows | Polyester Thermoplastic | -40 °C | 105 °C | Solder Eyelet(s) | 0.156 in | 10 Ąin | 16 32 | Panel Mount | Gold | Dual Edge Non Specified | Green | 4-40 Flush Mount Threaded Insert Top Opening | 0.054 in | 0.07 in | Copper Alloy | Semi Bellows | Dual | Female | 2 | ||
 EDAC Inc. | 2 rows | Polyester Thermoplastic | -40 °C | 105 °C | Solder | 0.156 in | 10 Ąin | 16 32 | Board Edge Straddle Mount | Gold | Dual Edge Non Specified | Green | 4-40 Flush Mount Threaded Insert Top Opening | 0.054 in | 0.07 in | Copper Alloy | Semi Bellows | Dual | Female | 2 | Card Extender | |
 EDAC Inc. | 2 rows | Polyester Thermoplastic | -40 °C | 105 °C | Solder | 0.156 in | 10 Ąin | 16 32 | Board Edge Straddle Mount | Gold | Dual Edge Non Specified | Green | 0.054 in | 0.07 in | Copper Alloy | Semi Bellows | Dual | Female | 2 | Card Extender | ||
 EDAC Inc. | 2 rows | Polyester Thermoplastic | -40 °C | 105 °C | Solder | 0.156 in | 10 Ąin | 16 32 | Panel Mount Through Hole | Gold | Dual Edge Non Specified | Green | 0.156 in | Flush Mount Top Opening Unthreaded | 0.054 in | 0.07 in | Copper Alloy | Semi Bellows | Dual | Female | 2 | |
 EDAC Inc. | 2 rows | Polyester Thermoplastic | -40 °C | 105 °C | Solder | 0.156 in | 10 Ąin | 16 32 | Panel Mount Through Hole | Gold | Dual Edge Non Specified | Green | Flush Mount M3 Threaded Insert Top Opening | 0.054 in | 0.07 in | Copper Alloy | Semi Bellows | Dual | Female | 2 | ||
 EDAC Inc. | 2 rows | Polyester Thermoplastic | -40 °C | 105 °C | Solder | 0.156 in | 10 Ąin | 16 32 | Board Edge Straddle Mount | Gold | Dual Edge Non Specified | Green | 4-40 Flush Mount Threaded Insert Top Opening | 0.054 in | 0.07 in | Copper Alloy | Semi Bellows | Dual | Female | 2 | Card Extender Card Guides | |
 EDAC Inc. | 2 rows | Polyester Thermoplastic | -40 °C | 105 °C | Solder | 0.156 in | 10 Ąin | 16 32 | Board Edge Straddle Mount | Gold | Dual Edge Non Specified | Green | 4-40 Flush Mount Threaded Insert Top Opening | 0.054 in | 0.07 in | Copper Alloy | Semi Bellows | Dual | Female | 2 | Card Extender Card Guides |
