CABLE 138 Series

Manufacturer: GCT

Catalog

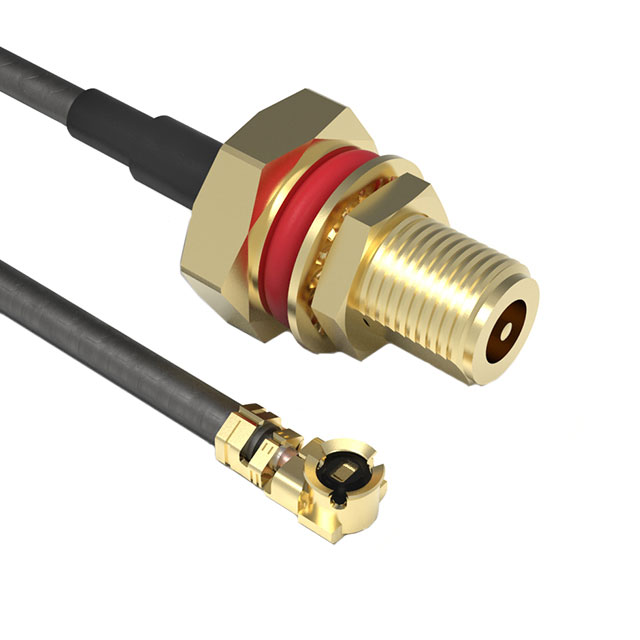

CBL ASSY MHF1-RPSMA JK-PL 5.906"

Part	Features	2nd Connector	Operating Temperature [Max]	Operating Temperature [Min]	2nd Connector Mounting Type	Cable Type	Cable Type [diameter]	1st Connector Mounting Feature	Frequency - Max [Max]	Cable Impedance	2nd Contact Gender	Ingress Protection	Style	1st Connector	1st Contact Gender	Color	1st Connector Mounting Type	Length	Length	Overall Impedance	Length [x]	Length [x]
GCT CABLE 138 RF-0150-A-2	IP Rated Unmated	I-PEX MHF1 Plug Right Angle	90 °C	-40 C	Free Hanging (In-Line)	Coaxial Cable	1.37 mm	Bulkhead - Front Side Nut	3 GHz	50 Ohms	Female	IP67/IP68	I-PEX MHF1 to RP-SMA	RP-SMA Jack	Male	Black	Panel Mount	150 mm	5.906 in
GCT CABLE 138 RF-0100-A-2	IP Rated Unmated	I-PEX MHF1 Plug Right Angle	90 °C	-40 C	Free Hanging (In-Line)	Coaxial Cable	1.37 mm	Bulkhead - Front Side Nut	3 GHz	50 Ohms	Female	IP67/IP68	I-PEX MHF1 to RP-SMA	RP-SMA Jack	Male	Black	Panel Mount	100 mm	3.937 in	50 Ohms
GCT CABLE 138 RF-0150-A-2	IP Rated Unmated	IPEX MHF1 Plug Right Angle	90 °C	-40 C	Free Hanging (In-Line)	Coaxial Cable	1.37 mm	Bulkhead - Front Side Nut	3 GHz	50 Ohms	Female	IP67/IP68	IPEX MHF1 to RP-SMA	RP-SMA Jack	Male	Black	Panel Mount	150 mm	5.906 in
GCT CABLE 138 RF-0100-A-2	IP Rated Unmated	IPEX MHF1 Plug Right Angle	90 °C	-40 C	Free Hanging (In-Line)	Coaxial Cable	1.37 mm	Bulkhead - Front Side Nut	3 GHz	50 Ohms	Female	IP67/IP68	IPEX MHF1 to RP-SMA	RP-SMA Jack	Male	Black	Panel Mount	100 mm	3.937 in	50 Ohms
GCT CABLE 138 RF-0050-A-2	IP Rated Unmated	I-PEX MHF1 Plug Right Angle	90 °C	-40 C	Free Hanging (In-Line)	Coaxial Cable	1.37 mm	Bulkhead - Front Side Nut	3 GHz	50 Ohms	Female	IP67/IP68	I-PEX MHF1 to RP-SMA	RP-SMA Jack	Male	Black	Panel Mount			50 Ohms	50 mm	1.969 in
GCT CABLE 138 RF-0050-A-2	IP Rated Unmated	IPEX MHF1 Plug Right Angle	90 °C	-40 C	Free Hanging (In-Line)	Coaxial Cable	1.37 mm	Bulkhead - Front Side Nut	3 GHz	50 Ohms	Female	IP67/IP68	IPEX MHF1 to RP-SMA	RP-SMA Jack	Male	Black	Panel Mount			50 Ohms	50 mm	1.969 in
