FN9255EB Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

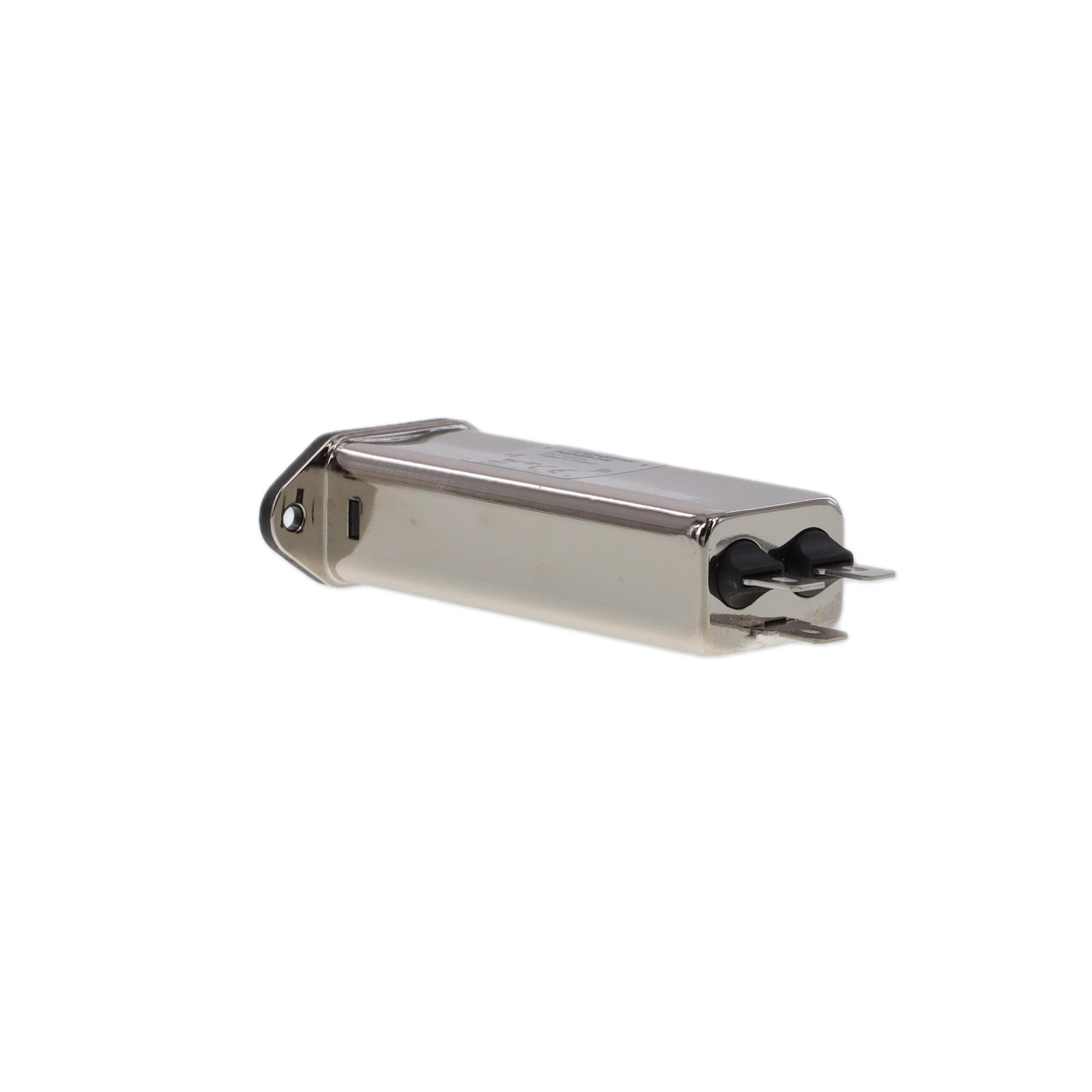

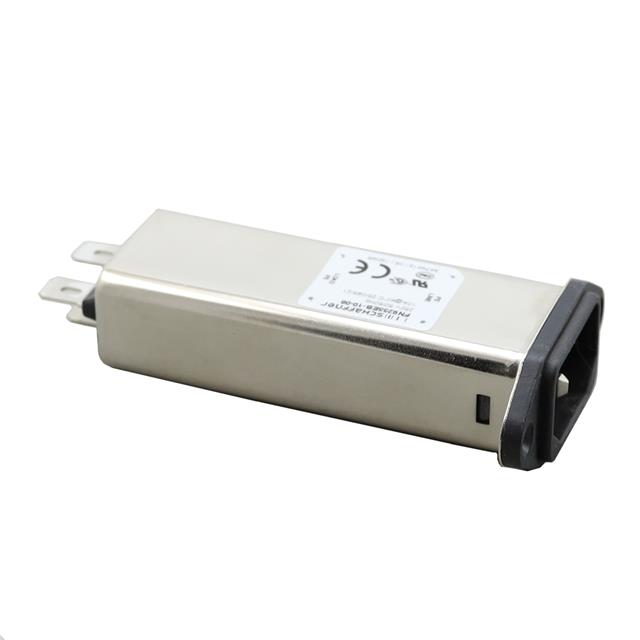

PWR ENT RCPT IEC320-C14 PANEL QC
| Part | Termination | Termination | Termination | Mounting Type | Approval Agency | Filter Type | Ingress Protection | Current Rating - Filter | Connector Type | Accomodates a Fuse | Material Flammability Rating | Connector Style | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 6.3 mm | Quick Connect | 0.25 " | Flange Panel Mount | CE CQC ENEC UR | Filtered (EMI RFI) - Commercial Medical | IP40 | 6 A | Receptacle Male Blades | UL94 V-0 | IEC 320-C14 | Earth Line Choke Front Side Mount | |
 TE Connectivity AMP Connectors | 6.3 mm | Quick Connect | 0.25 " | Flange Panel Mount | CE CQC ENEC UR | Filtered (EMI RFI) - Commercial Medical | IP40 | 10 A | Receptacle Male Blades | UL94 V-0 | IEC 320-C14 | Earth Line Choke Front Side Mount | |
 TE Connectivity AMP Connectors | 6.3 mm | Quick Connect | 0.25 " | Flange Panel Mount | CE CQC ENEC UR | Filtered (EMI RFI) - Commercial Medical | IP40 | 4 A | Receptacle Male Blades | UL94 V-0 | IEC 320-C14 | Earth Line Choke Front Side Mount | |
 TE Connectivity AMP Connectors | 6.3 mm | Quick Connect | 0.25 " | Flange Panel Mount | CE CQC ENEC UR | Filtered (EMI RFI) - Commercial Medical | IP40 | 15 A | Receptacle Male Blades | UL94 V-0 | IEC 320-C14 | Earth Line Choke Front Side Mount | |
 TE Connectivity AMP Connectors | 6.3 mm | Quick Connect | 0.25 " | Flange Panel Mount | CE CQC ENEC UR | Filtered (EMI RFI) - Commercial Medical | IP40 | 10 A | Receptacle Male Blades | UL94 V-0 | IEC 320-C14 | Earth Line Choke Front Side Mount | |
TE Connectivity AMP Connectors | 6.3 mm | Quick Connect | 0.25 " | Flange Panel Mount | CE CQC ENEC UR | Filtered (EMI RFI) - Commercial Medical | IP40 | 10 A | Receptacle Male Blades | UL94 V-0 | IEC 320-C14 | Earth Line Choke Front Side Mount | |
TE Connectivity AMP Connectors | 6.3 mm | Quick Connect | 0.25 " | Flange Panel Mount | CE CQC ENEC UR | Filtered (EMI RFI) - Commercial Medical | IP40 | 10 A | Receptacle Male Blades | UL94 V-0 | IEC 320-C14 | Earth Line Choke Front Side Mount | |
TE Connectivity AMP Connectors | 6.3 mm | Quick Connect | 0.25 " | Flange Panel Mount | CE CQC ENEC UR | Filtered (EMI RFI) - Commercial Medical | IP40 | 15 A | Receptacle Male Blades | UL94 V-0 | IEC 320-C14 | Earth Line Choke Front Side Mount | |
TE Connectivity AMP Connectors | 6.3 mm | Quick Connect | 0.25 " | Flange Panel Mount | CE CQC ENEC UR | Filtered (EMI RFI) - Commercial Medical | IP40 | 4 A | Receptacle Male Blades | UL94 V-0 | IEC 320-C14 | Earth Line Choke Front Side Mount | |
TE Connectivity AMP Connectors | 6.3 mm | Quick Connect | 0.25 " | Flange Panel Mount | CE CQC ENEC UR | Filtered (EMI RFI) - Commercial Medical | IP40 | 6 A | Receptacle Male Blades | UL94 V-0 | IEC 320-C14 | Earth Line Choke Front Side Mount |
