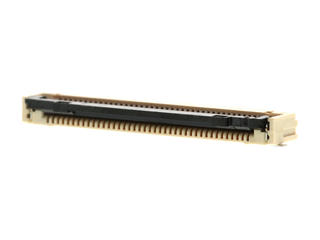

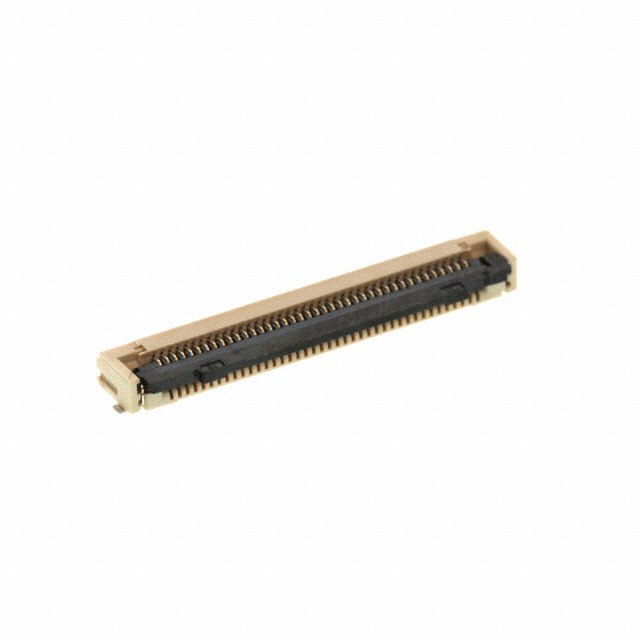

0.50mm Pitch Easy-On Front Flip FPC Connector, Surface Mount, ZIF, Double Bottom Contact, 2.50mm Height, Accepts FFC/FPC with Ear-tabs, 40 Circuits
0.50mm Pitch Easy-On Front Flip FPC Connector, Surface Mount, ZIF, Double Bottom Contact, 2.50mm Height, Accepts FFC/FPC with Ear-tabs, 40 Circuits
0.50mm Pitch Easy-On Front Flip FPC Connector, Surface Mount, ZIF, Double Bottom Contact, 2.50mm Height, Accepts FFC/FPC with Ear-tabs, 40 Circuits
| Part | Connector/Contact Type | Housing Material | Flat Flex Type | Cable End Type | Features | Housing Color | Number of Positions | Contact Material | FFC, FCB Thickness | Actuator Color | Pitch [x] | Pitch [x] | Mounting Type | Material Flammability Rating | Contact Finish | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Material | Height Above Board | Height Above Board | Voltage Rating | Termination | Locking Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Contacts Bottom | Liquid Crystal Polymer (LCP) Glass Filled | FPC | Tabbed | Double Contact Solder Retention Zero Insertion Force (ZIF) | Beige | 40 | Phosphor Bronze | 0.3 mm | Black | 0.5 mm | 0.02 in | Surface Mount Right Angle | UL94 V-0 | Gold | 0.5 A | 85 °C | -20 C | Polyphenylene Sulfide (PPS) Glass Filled | 0.098 in | 2.5 mm | 50 V | Solder | Flip Lock |
 Molex | Contacts Bottom | Liquid Crystal Polymer (LCP) Glass Filled | FPC | Tabbed | Double Contact Solder Retention Zero Insertion Force (ZIF) | Beige | 50 | Phosphor Bronze | 0.3 mm | Black | 0.5 mm | 0.02 in | Surface Mount Right Angle | UL94 V-0 | Gold | 0.5 A | 85 °C | -20 C | Polyphenylene Sulfide (PPS) Glass Filled | 0.098 in | 2.5 mm | 50 V | Solder | Flip Lock |
 Molex | Contacts Bottom | Liquid Crystal Polymer (LCP) Glass Filled | FPC | Tabbed | Double Contact Solder Retention Zero Insertion Force (ZIF) | Beige | 60 | Phosphor Bronze | 0.3 mm | Black | 0.5 mm | 0.02 in | Surface Mount Right Angle | UL94 V-0 | Gold | 0.5 A | 85 °C | -20 C | Polyphenylene Sulfide (PPS) Glass Filled | 0.098 in | 2.5 mm | 50 V | Solder | Flip Lock |
