3125-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

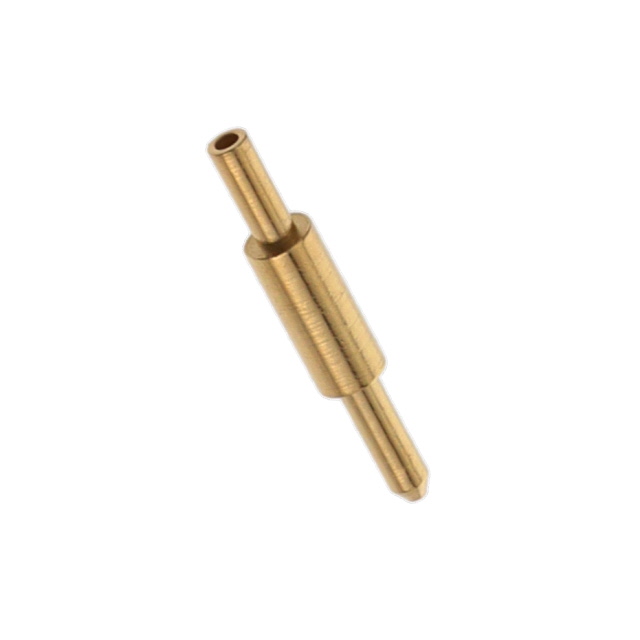

CONN PC PIN CIRC .040DIA GOLD
| Part | Board Thickness [custom] | Board Thickness [custom] | Length - Above Flange | Length - Above Flange [x] | Contact Material | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Length - Overall | Length - Overall | Length - Below Flange [x] | Length - Below Flange [x] | Terminal Style | Insulation | Flange Diameter [diameter] | Flange Diameter [diameter] | Termination | Terminal Type | Contact Finish | Mounting Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.094 in | 2.39 mm | 3.81 mm | 0.15 in | Brass Alloy | 0.043 in | 1.09 mm | 0.25 Ám | 10 Áin | 0.433 in | 11 mm | 2.87 mm | 0.113 " | Single End | Non-Insulated | 0.071 in | 1.8 mm | Swage | PC Pin | Gold | Through Hole | 0.04 in | 1.02 mm |

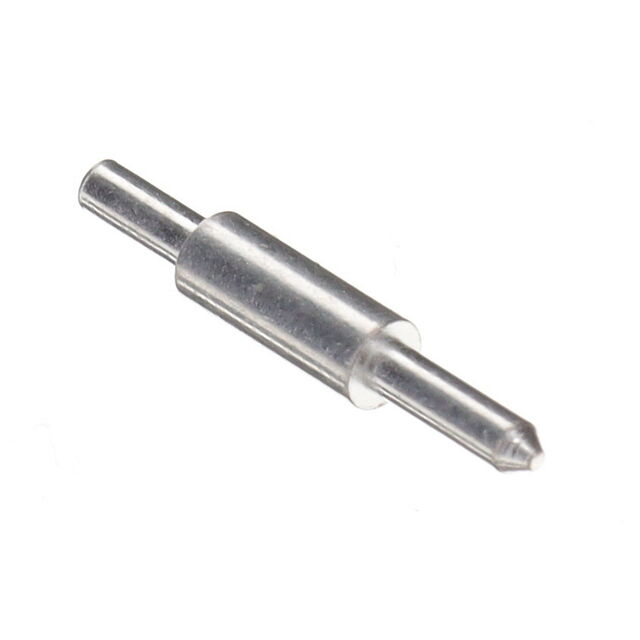

 Mill-Max Manufacturing Corp. | 0.094 in | 2.39 mm | 3.81 mm | 0.15 in | Brass Alloy | 0.043 in | 1.09 mm | 5.08 Ám | 200 Áin | 0.433 in | 11 mm | 2.87 mm | 0.113 " | Single End | Non-Insulated | 0.071 in | 1.8 mm | Swage | PC Pin | Tin-Lead | Through Hole | 0.04 in | 1.02 mm |
 Mill-Max Manufacturing Corp. | 0.094 in | 2.39 mm | 3.81 mm | 0.15 in | Brass Alloy | 0.043 in | 1.09 mm | 0.51 µm | 20 µin | 0.433 in | 11 mm | 2.87 mm | 0.113 " | Single End | Non-Insulated | 0.071 in | 1.8 mm | Swage | PC Pin | Gold | Through Hole | 0.04 in | 1.02 mm |
