396-062 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 62POS 0.125
| Part | Material - Insulation | Termination Rows [custom] | Features | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Gender | Read Out | Pitch | Pitch | Contact Material | Flange Feature | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row [custom] | Number of Positions | Color | Card Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | Card Extender | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Female | Dual | 3.18 mm | 0.125 in | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | 2 | -40 C | 105 ░C | 31 | 62 | Black | Non Specified - Dual Edge | Solder | 0.25 Ám | 10 Áin | Board Edge Straddle Mount | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Female | Dual | 3.18 mm | 0.125 in | Copper Alloy | Floating Bobbin Flush Mount | 2 | -40 C | 105 ░C | 31 | 62 | Black | Non Specified - Dual Edge | Solder | 0.25 Ám | 10 Áin | Through Hole | 0.116 " | 2.95 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Female | Dual | 3.18 mm | 0.125 in | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | 2 | -40 C | 105 ░C | 31 | 62 | Black | Non Specified - Dual Edge | Solder Wire Wrap | 0.25 Ám | 10 Áin | Right Angle Through Hole | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Female | Dual | 3.18 mm | 0.125 in | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | 2 | -40 C | 105 ░C | 31 | 62 | Black | Non Specified - Dual Edge | Solder Wire Wrap | 0.25 Ám | 10 Áin | Right Angle Through Hole | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Card Extender | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Female | Dual | 3.18 mm | 0.125 in | Copper Alloy | 2 | -40 C | 105 ░C | 31 | 62 | Black | Non Specified - Dual Edge | Solder | 0.25 Ám | 10 Áin | Board Edge Straddle Mount | 0.156 " | 3.96 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Female | Dual | 3.18 mm | 0.125 in | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | 2 | -40 C | 105 ░C | 31 | 62 | Black | Non Specified - Dual Edge | Solder Wire Wrap | 0.25 Ám | 10 Áin | Right Angle Through Hole | |||

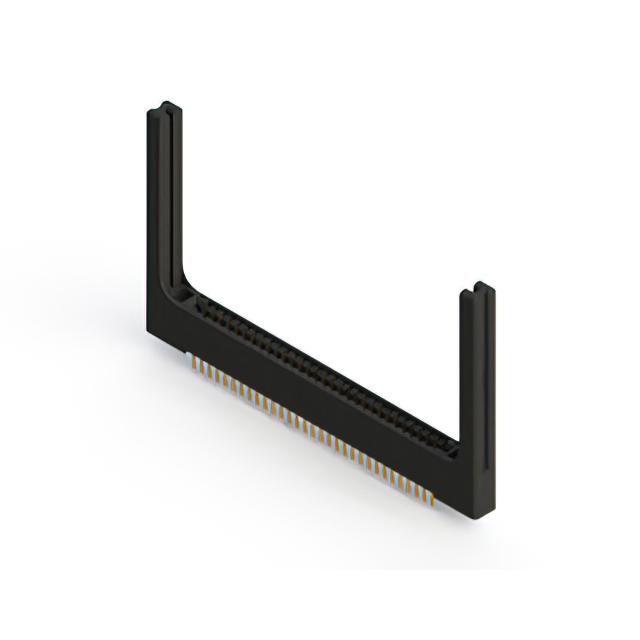

 EDAC Inc. | Polyester Thermoplastic | 2 | Card Guides | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Female | Dual | 3.18 mm | 0.125 in | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 2 | -40 C | 105 ░C | 31 | 62 | Black | Non Specified - Dual Edge | Solder | 0.25 Ám | 10 Áin | Through Hole | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Card Extender | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Female | Dual | 3.18 mm | 0.125 in | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | 2 | -40 C | 105 ░C | 31 | 62 | Black | Non Specified - Dual Edge | Solder Eyelet(s) | 0.25 Ám | 10 Áin | Board Edge Straddle Mount | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Female | Dual | 3.18 mm | 0.125 in | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 2 | -40 C | 105 ░C | 31 | 62 | Black | Non Specified - Dual Edge | Solder | 0.25 Ám | 10 Áin | Through Hole | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Female | Dual | 3.18 mm | 0.125 in | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 2 | -40 C | 105 ░C | 31 | 62 | Black | Non Specified - Dual Edge | Solder Wire Wrap | 0.25 Ám | 10 Áin | Right Angle Through Hole |
