57300 Series
Manufacturer: Littelfuse/Commercial Vehicle Products
Beta
⌘K

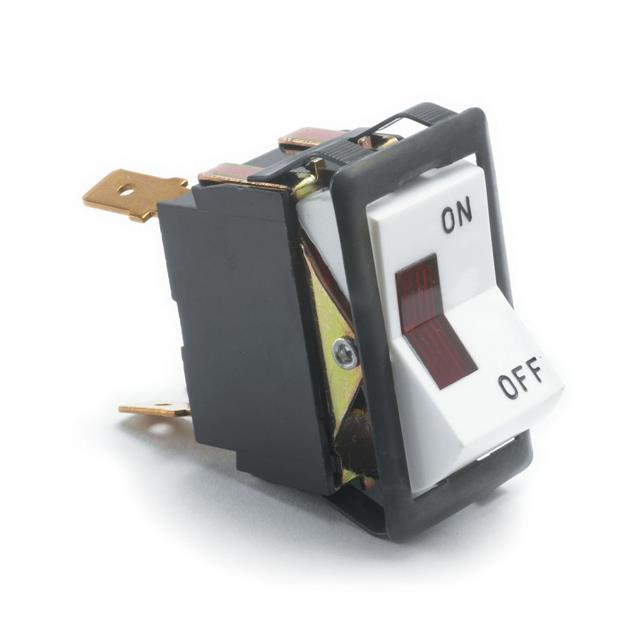

SWITCH ROCKER SPST 25A 12V
| Part | Current Rating (Amps) | Actuator Type | Illumination Type, Color | Termination Style | Voltage Rating - DC | Actuator Marking | Illumination Voltage (Nominal) | Circuit | Color - Actuator/Cap | Switch Function | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | 25 A | Concave (Standard V) - Illuminated | Incandescent Red | Quick Connect - 0.250" (6.3mm) | 12 V | ON OFF Vertical | 12 VDC | SPST | White | On-Off | 21.08 mm | 36.83 mm | Panel Mount Snap-In |
Littelfuse/Commercial Vehicle Products | 25 A | Concave (Standard V) - Illuminated | Incandescent Red | Quick Connect - 0.250" (6.3mm) | 12 V | No Marking | 12 VDC | SPST | White | On-Off | 21.08 mm | 36.83 mm | Panel Mount Snap-In |
 Littelfuse/Commercial Vehicle Products | 25 A | Concave (Standard V) - Illuminated | Incandescent Red | Quick Connect - 0.250" (6.3mm) | 12 V | No Marking | 12 VDC | SPST | Black | On-Off | 21.08 mm | 36.83 mm | Panel Mount Snap-In |
