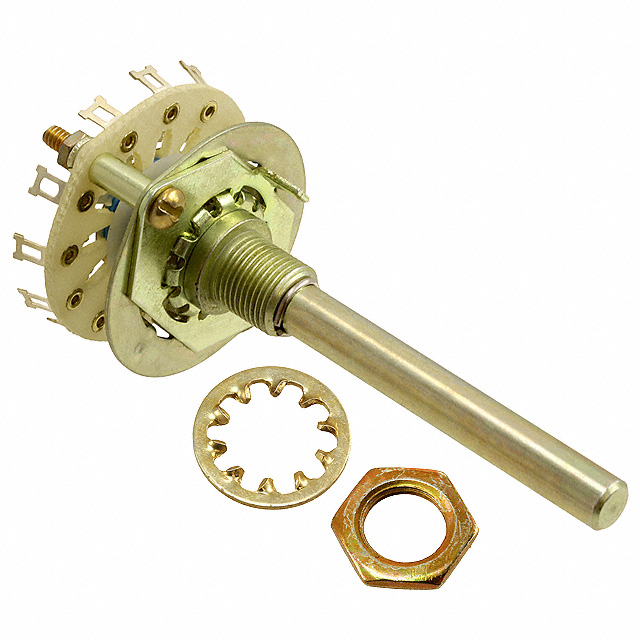

D4G0205 Series
Manufacturer: Electroswitch
Beta
⌘K
SWITCH ROTARY 2-5POS 500MA 115V
| Part | Panel Cutout Dimensions [diameter] | Index Stops | Contact Material | Contact Timing | Number of Poles per Deck | Depth Behind Panel [z] | Actuator Type | Actuator Type [diameter] | Current Rating (Amps) | Contact Finish | Number of Decks [custom] | Voltage Rating - AC | Circuit per Deck | Angle of Throw | Mounting Type | Termination Style | Actuator Length [x] | Number of Positions [Max] | Number of Positions [Min] | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Electroswitch | 9.78 mm | Adjustable | Brass | Shorting (MBB) | 2 | 14.27 mm | Round | 0.25 in | 1.5 A 500 mA | Silver | 1 | 115 V | DP5T | 30 ° | Panel Mount | Solder Lug | 47.63 mm | 5 | 2 | 28 V |
 Electroswitch | 9.78 mm | Adjustable | Brass | Non-Shorting (BBM) | 2 | 14.27 mm | Round | 0.25 in | 1.5 A 500 mA | Silver | 1 | 115 V | DP5T | 30 ° | Panel Mount | Solder Lug | 47.63 mm | 5 | 2 | 28 V |
