835-2.28 Series

Catalog

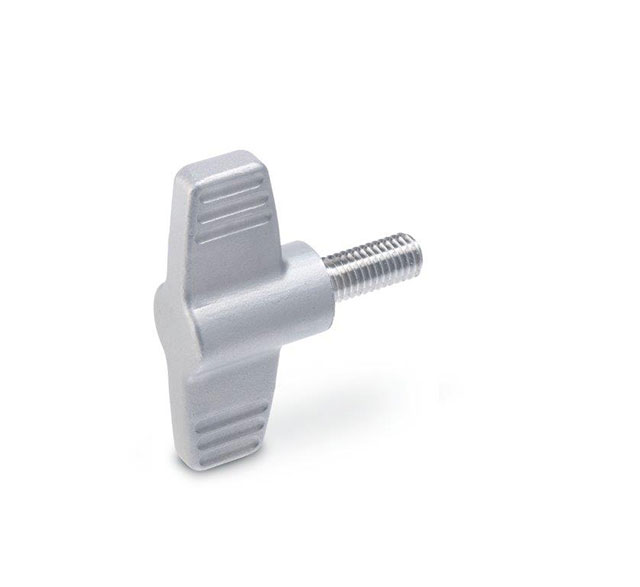

WING SCREWS, STAINLESS STEEL

Part	Diameter [diameter]	Diameter [diameter]	Height [z]	Height [z]	Indicator	Type	Shaft Size	Material
J.W. Winco 835-2.28-5/16X18-0.750-MT	57.91 mm	2.28 in	26.42 mm	1.04 "	No Indicator	2 Arm	5/16"-18	Stainless Steel
J.W. Winco 835-2.28-3/8X16-1.250-MT	57.91 mm	2.28 in	26.42 mm	1.04 "	No Indicator	2 Arm	3/8"-16	Stainless Steel
J.W. Winco 835-2.28-5/16X18-1.000-MT	57.91 mm	2.28 in	26.42 mm	1.04 "	No Indicator	2 Arm	5/16"-18	Stainless Steel
J.W. Winco 835-2.28-3/8X16-1.000-MT	57.91 mm	2.28 in	26.42 mm	1.04 "	No Indicator	2 Arm	3/8"-16	Stainless Steel
