WFM200 Series

Catalog

RF TXRX MODULE WIFI CHIP SMD

Part	Data Rate	Protocol	Modulation	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Frequency [Min]	Frequency [Max]	Current - Receiving [Max]	Current - Receiving [Min]	Sensitivity	Utilized IC / Part	Current - Transmitting [Max]	Current - Transmitting [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	RF Family/Standard	Power - Output	Package / Case	Antenna Type
SILICON LABS WFM200SS22XNA3R	72.2 Mbps	802.11b/g/n	DSSS	Surface Mount	-40 °C	105 °C	2.412 GHz	2.484 GHz	48.3 mA	42.3 mA	-96.3 dBm	WFM200S	99.4 mA	45.4 mA	3.6 V	1.62 V	WiFi	15.1 dBm	58-SMD Module	Chip Integrated
SILICON LABS WFM200SS22XNN3R	72.2 Mbps	802.11b/g/n	DSSS	Surface Mount	-40 °C	105 °C	2.412 GHz	2.484 GHz	48.3 mA	42.3 mA	-96.3 dBm	WFM200S	99.4 mA	45.4 mA	3.6 V	1.62 V	WiFi	15.1 dBm	58-SMD Module	Chip Integrated
SILICON LABS WFM200SS22XNN3	72.2 Mbps	802.11b/g/n	DSSS	Surface Mount	-40 °C	105 °C	2.412 GHz	2.484 GHz	48.3 mA	42.3 mA	-96.3 dBm	WFM200S	99.4 mA	45.4 mA	3.6 V	1.62 V	WiFi	15.1 dBm	58-SMD Module	Chip Integrated
SILICON LABS WFM200SS22XNA3	72.2 Mbps	802.11b/g/n	DSSS	Surface Mount	-40 °C	105 °C	2.412 GHz	2.484 GHz	48.3 mA	42.3 mA	-96.3 dBm	WFM200S	99.4 mA	45.4 mA	3.6 V	1.62 V	WiFi	15.1 dBm	58-SMD Module	Chip Integrated
SILICON LABS WFM200S022XNN3R	72.2 Mbps	802.11b/g/n	DSSS	Surface Mount	-40 °C	105 °C	2.412 GHz	2.484 GHz	48.3 mA	42.3 mA	-96.3 dBm	WFM200S	99.4 mA	45.4 mA	3.6 V	1.62 V	WiFi	15.1 dBm	58-SMD Module	Chip Integrated

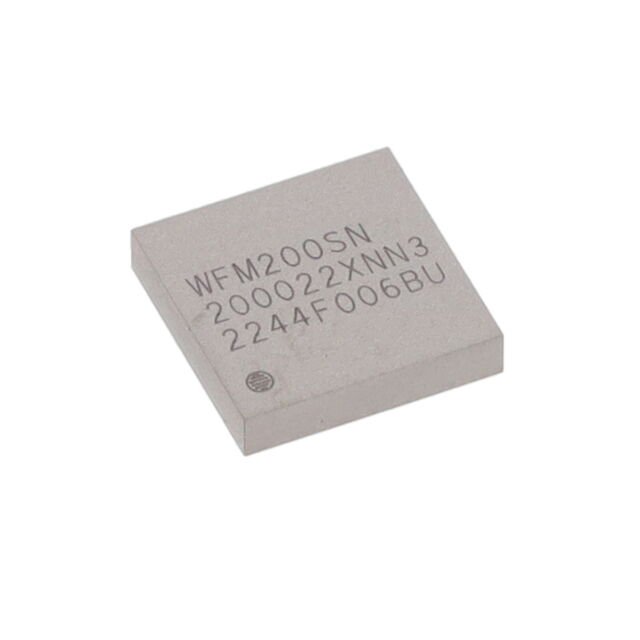

SILICON LABS WFM200S022XNN3	72.2 Mbps	802.11b/g/n	DSSS	Surface Mount	-40 °C	105 °C	2.412 GHz	2.484 GHz	48.3 mA	42.3 mA	-96.3 dBm	WFM200S	99.4 mA	45.4 mA	3.6 V	1.62 V	WiFi	15.1 dBm	58-SMD Module	Chip Integrated
SILICON LABS WFM200S022XNA3R	72.2 Mbps	802.11b/g/n	DSSS	Surface Mount	-40 °C	105 °C	2.412 GHz	2.484 GHz	48.3 mA	42.3 mA	-96.3 dBm	WFM200S	99.4 mA	45.4 mA	3.6 V	1.62 V	WiFi	15.1 dBm	58-SMD Module	Chip Integrated

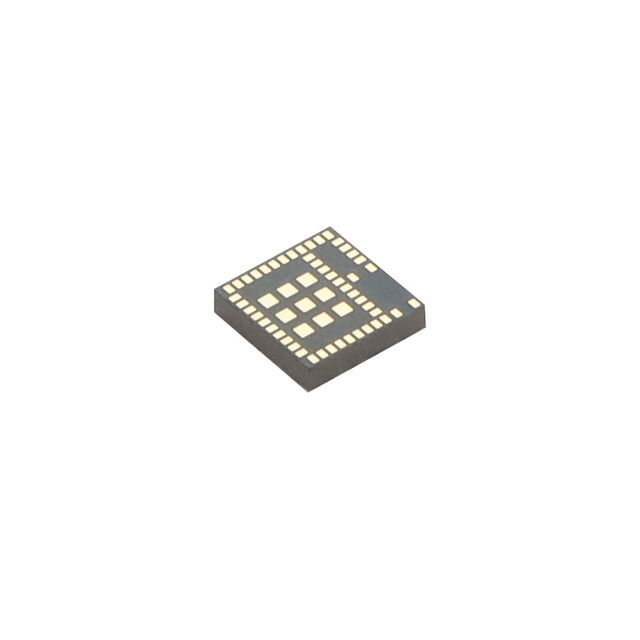

SILICON LABS WFM200S022XNA3	72.2 Mbps	802.11b/g/n	DSSS	Surface Mount	-40 °C	105 °C	2.412 GHz	2.484 GHz	48.3 mA	42.3 mA	-96.3 dBm	WFM200S	99.4 mA	45.4 mA	3.6 V	1.62 V	WiFi	15.1 dBm	58-SMD Module	Chip Integrated
