QHL75300S Series

Manufacturer: XP Power

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE DC-DC 75W BASEPLATE COOLED

Part	Current - Output (Max) [Max]	Number of Outputs	Type	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Voltage - Isolation	Approval Agency	Voltage - Output 1	Control Features	Power (Watts)	Supplier Device Package	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Applications	Standard Number	Efficiency	Current - Output (Max)
XP Power QHL75300S05	15 A	1	Isolated Module	Through Hole	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Quarter Brick	4.2 kV	CE	5 V	Active Floating Enable	75 W	Quarter Brick	Baseplate Remote On/Off Standby Output	105 C	-40 °C	450 V	180 V	ITE (Commercial)	62368-1

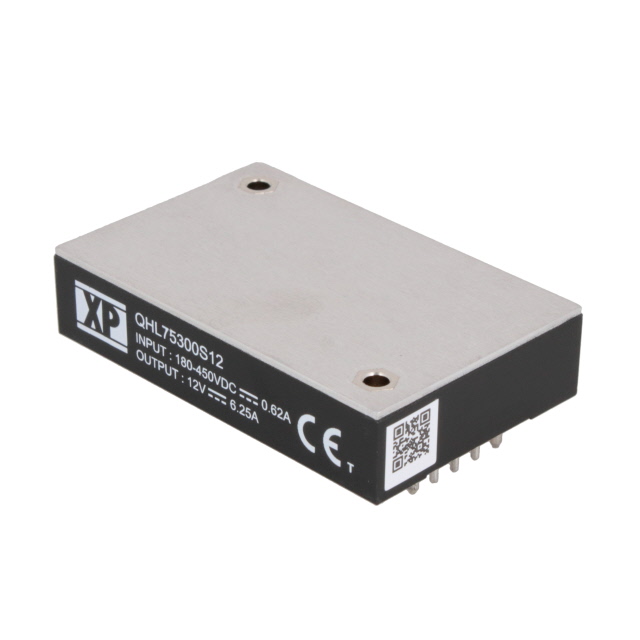

XP Power QHL75300S12	6.25 A	1	Isolated Module	Through Hole	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Quarter Brick	4.2 kV	CE	12 V	Active Floating Enable	75 W	Quarter Brick	Baseplate Remote On/Off Standby Output	105 C	-40 °C	450 V	180 V	ITE (Commercial)	62368-1	88 %
XP Power QHL75300S15		1	Isolated Module	Through Hole	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Quarter Brick	4.2 kV	CE	15 V	Active Floating Enable	75 W	Quarter Brick	Baseplate Remote On/Off Standby Output	105 C	-40 °C	450 V	180 V	ITE (Commercial)	62368-1	90 %	5 A

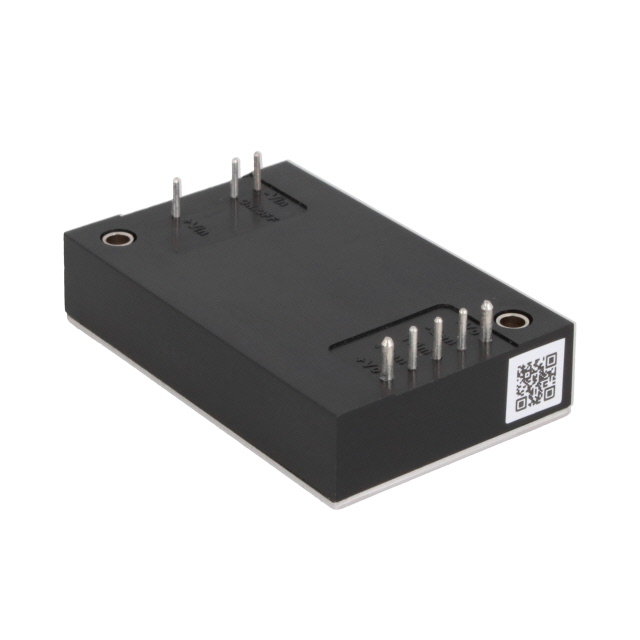

XP Power QHL75300S24	3.12 A	1	Isolated Module	Through Hole	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Quarter Brick	4.2 kV	CE	24 V	Active Floating Enable	75 W	Quarter Brick	Baseplate Remote On/Off Standby Output	105 C	-40 °C	450 V	180 V	ITE (Commercial)	62368-1	90 %
XP Power QHL75300S48	1.56 A	1	Isolated Module	Through Hole	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Quarter Brick	4.2 kV	CE	48 V	Active Floating Enable	75 W	Quarter Brick	Baseplate Remote On/Off Standby Output	105 C	-40 °C	450 V	180 V	ITE (Commercial)	62368-1	89 %
