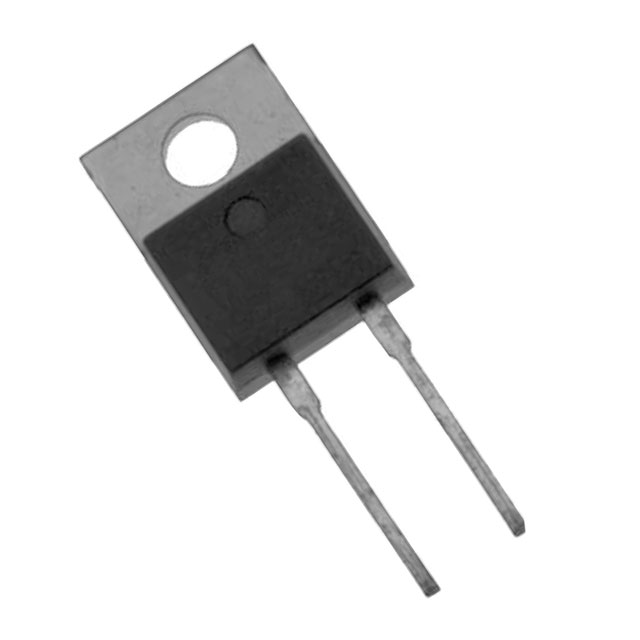

TCH Series

Manufacturer: Ohmite

Catalog

THICK FILM RESISTORS - THROUGH HOLE 35WATT 330OHM 5%

Part	Temperature Coefficient	Features	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Composition	Power (Watts)	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Resistance	Number of Terminations [custom]	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Ohmite TCH35P330RJE	50 ppm/░C	Moisture Resistant	5 %	0.4 "	0.175 "	4.44 mm	10.16 mm	15 mm	0.591 "	Thick Film	35 W	TO-220-2	175 °C	-55 C	330 Ohms	2	TO-220
Ohmite TCH35P5R60JE	100 ppm/°C	Moisture Resistant	5 %	0.4 "	0.175 "	4.44 mm	10.16 mm	15 mm	0.591 "	Thick Film	35 W	TO-220-2	175 °C	-55 C	5.6 Ohms	2	TO-220 TO-220-2	0.787 in	20 mm
Ohmite TCH35P150RJE	50 ppm/░C	Moisture Resistant	5 %	0.4 "	0.175 "	4.44 mm	10.16 mm	15 mm	0.591 "	Thick Film	35 W	TO-220-2	175 °C	-55 C	150 Ohms	2	TO-220
Ohmite TCH35PR510JE	100 ppm/°C 700 ppm/°C	Moisture Resistant	5 %	0.4 "	0.175 "	4.44 mm	10.16 mm	15 mm	0.591 "	Thick Film	35 W	TO-220-2	175 °C	-55 C	510 mOhms	2	TO-220 TO-220-2	0.787 in	20 mm
Ohmite TCH35P5K10JE	50 ppm/░C	Moisture Resistant	5 %	0.4 "	0.175 "	4.44 mm	10.16 mm	15 mm	0.591 "	Thick Film	35 W	TO-220-2	175 °C	-55 C	5.1 kOhms	2	TO-220 TO-220-2	0.787 in	20 mm
