RSB1S Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K

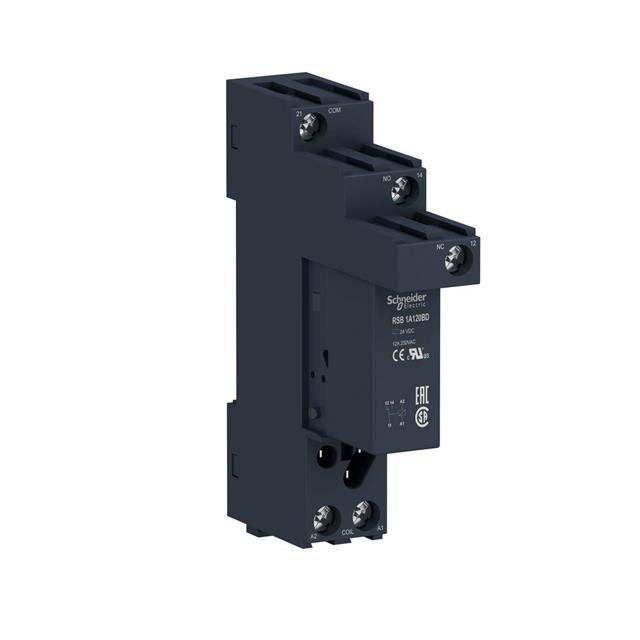

KIT CASE, ZELIO RELAY, SPDT, PCB
| Part | Coil Resistance | Operate Time | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Contact Rating (Current) | Coil Type | Must Operate Voltage | Contact Form | Termination Style | Coil Voltage | Approval Agency | Must Release Voltage | Switching Voltage [Max] | Contact Material | Relay Type | Load - Max Switching | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | 1440 Ohms | 20 ms | DIN Rail | 85 °C | -40 C | 16.7 mA | 12 A | Non Latching | 19.2 VDC | SPDT (1 Form C) | Screw Terminal | 24 VDC | CSA EAC UL | 2.4 VDC | 250 VDC | Silver Nickel (AgNi) | General Purpose | 3000 VA | 20 ms |
