IRS23365 Series
Manufacturer: INFINEON
Beta
⌘K

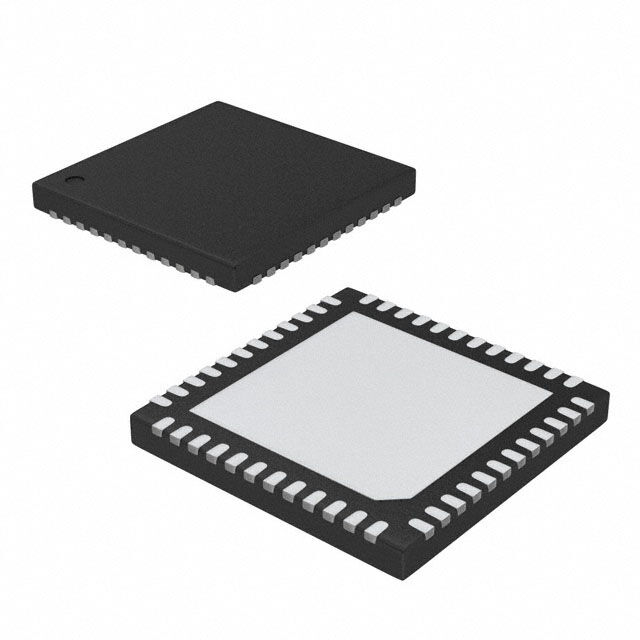

IC GATE DRVR HALF-BRIDGE 48MLPQ
| Part | Gate Type | Input Type | Rise / Fall Time (Typ) [custom] | Rise / Fall Time (Typ) [custom] | Voltage - Supply [Max] | Voltage - Supply [Min] | Number of Drivers | Driven Configuration | Operating Temperature [Min] | Operating Temperature [Max] | High Side Voltage - Max (Bootstrap) [Max] | Logic Voltage - VIL, VIH | Package / Case | Channel Type | Supplier Device Package | Current - Peak Output (Source, Sink) [custom] | Current - Peak Output (Source, Sink) [custom] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | IGBT MOSFET (N-Channel) N-Channel MOSFET | Non-Inverting | 125 ns | 50 ns | 20 V | 10 VDC | 6 | Half-Bridge | -40 °C | 150 °C | 600 V | 0.8 V 2.5 V | 48-VFQFN Exposed Pad | 3-Phase | 48-MLPQ (7x7) | 180 mA | 380 mA | Surface Mount |
