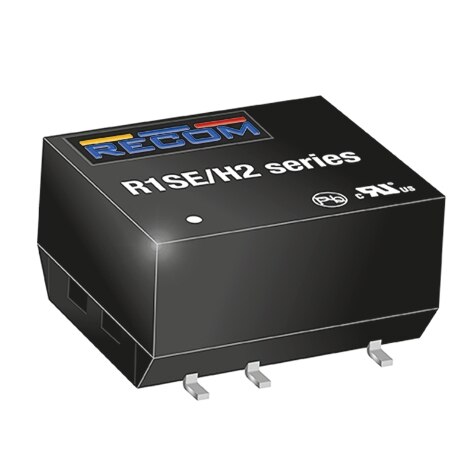

R1SE/H2 Series

Catalog

ISOLATED SURFACE MOUNT DC/DC CONVERTER, MEDICAL, 1:1, 1 W, 1 OUTPUT, 5 V

Part	Mounting Type	Applications	Package / Case	Type	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Voltage - Isolation	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Number of Outputs
Recom Power R1SE-3.305/H2-R	Surface Mount	ITE (Commercial)	8-SMD Module 5 Leads	Isolated Module	5 V	-40 C	100 °C	200 mA	2000 V	3.63 V	2.97 V	0.5 "	10.7 mm	0.42 "	6.7 mm	12.8 mm	0.26 in	75 %	1
Recom Power R1SE-1205/H2-R	Surface Mount	ITE (Commercial)	8-SMD Module 5 Leads	Isolated Module	5 V	-40 C	100 °C	200 mA	2000 V	13.2 V	10.8 V	0.5 "	10.7 mm	0.42 "	6.7 mm	12.8 mm	0.26 in	73 %	1
Recom Power R1SE-0512/H2-R	Surface Mount	ITE (Commercial)	8-SMD Module 5 Leads	Isolated Module	12 V	-40 C	100 °C	84 mA	2000 V	5.5 V	4.5 V	0.5 "	10.7 mm	0.42 "	6.7 mm	12.8 mm	0.26 in	76 %	1
Recom Power R1SE-0515/H2-R	Surface Mount	ITE (Commercial)	8-SMD Module 5 Leads	Isolated Module	15 V	-40 C	100 °C	66 mA	2000 V	5.5 V	4.5 V	0.5 "	10.7 mm	0.42 "	6.7 mm	12.8 mm	0.26 in	76 %	1
Recom Power R1SE-1505/H2-R	Surface Mount	ITE (Commercial)	8-SMD Module 5 Leads	Isolated Module	5 V	-40 C	100 °C	200 mA	2000 V	16.5 V	13.5 V	0.5 "	10.7 mm	0.42 "	6.7 mm	12.8 mm	0.26 in	74 %	1
Recom Power R1SE-0505/H2-R	Surface Mount	ITE (Commercial)	8-SMD Module 5 Leads	Isolated Module	5 V	-40 C	100 °C	200 mA	2000 V	5.5 V	4.5 V	0.5 "	10.7 mm	0.42 "	6.7 mm	12.8 mm	0.26 in	75 %	1
