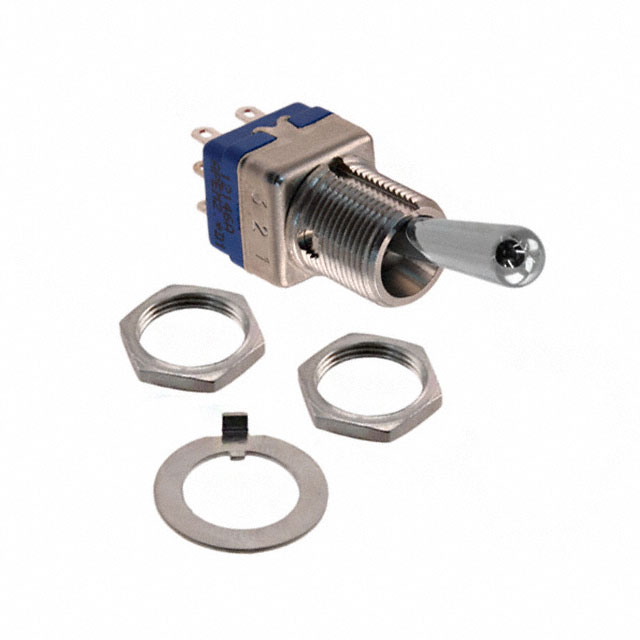

12000 Series
Manufacturer: APEM Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
TOGGLE SWITCHES TOGGLE SWITCH 12000 HIGH SPEC
| Part | Illumination | Actuator Length | Switch Function | Panel Cutout Diameter | Panel Cutout Shape | Voltage Rating - DC | Actuator Type | Bushing Thread | Circuit | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Termination Style | Current Rating | Ingress Protection Description | Ingress Protection IP Rating | Voltage Rating - AC | Features | Electrical Life (Cycles) | Actuator Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 APEM Inc. | Non-Illuminated | 19.38 mm | On-On | 12 mm | Circular | 30 V | Locking Lever | 15/32-32 | 3PDT | Panel Mount | -40 °C | 85 °C | Solder Lug | 4 A | ||||||
APEM Inc. | Non-Illuminated | 19.38 mm | On-On | 12 mm | Circular | 30 V | Locking Lever | 15/32-32 | DP3T | Panel Mount | -40 °C | 85 °C | Solder Lug | 4 A | ||||||
APEM Inc. | Non-Illuminated | 17.3 mm | On-Mom | 12 mm | Circular | 30 V | Standard Round | 15/32-32 | 4PDT | Panel Mount | -40 °C | 85 °C | PC Pin | 4 A | Dust Tight Waterproof | IP67 | 125 V | |||
APEM Inc. | Non-Illuminated | 17.3 mm | Mom-On-Mom | 12.5 mm | Circular | 30 V | Standard Round | 15/32-32 | DP3T | Panel Mount | -40 °C | 85 °C | Solder Lug | 4 A | 125 V | Jumper needed to achieve triple throw | ||||
 APEM Inc. | Non-Illuminated | 19.4 mm | On-On | 12 mm | Circular | 30 V | Locking Lever | 15/32-32 | DPDT | Panel Mount | -40 °C | 85 °C | Solder Lug | 4 A | 125 V | Epoxy Sealed Terminals Front Panel Sealing | ||||
APEM Inc. | Non-Illuminated | Mom-Off-Mom | 12.5 mm | Circular | 30 V | 15/32-32 | 3PDT | Panel Mount | -40 °C | 85 °C | PC Pin | 4 A | 125 V | Epoxy Sealed Terminals | ||||||
APEM Inc. | Non-Illuminated | 17.3 mm | On-On-Mom | 12 mm | Circular | 30 V | Standard Round | 15/32-32 | DP3T | Panel Mount | -40 °C | 85 °C | Solder Lug | 4 A | ||||||
APEM Inc. | Non-Illuminated | 17.3 mm | On-On | 12 mm | Circular | 30 V | Standard Round | 15/32-32 | 4PDT | Panel Mount | -40 °C | 85 °C | Solder Lug | 4 A | 125 V | Front Panel Sealing | ||||
 APEM Inc. | Non-Illuminated | 19.4 mm | On-On | 12.5 mm | Circular | 30 V | Locking Lever | 15/32-32 | DPDT | Panel Mount | -40 °C | 85 °C | Solder Lug | 4 A | 125 V | Epoxy Sealed Terminals | 50000 | Brass Nickel Plated | ||
APEM Inc. | Non-Illuminated | 17.3 mm | Mom-Off-Mom | 12 mm | Circular | 30 V | Standard Round | 15/32-32 | DPDT | Panel Mount | -40 °C | 85 °C | Solder Lug | 4 A |
