ECL15 Series

Manufacturer: XP Power

Catalog

AC/DC CONVERTER +/-15V 15W

Part	Voltage - Isolation	Type	Voltage - Output 1	Current - Output 1	Mounting Type	Standard Number	Power (Watts)	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Output 2	Current - Output 2	Approval Agency	Efficiency	Accessory Type	For Use With/Related Products	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
XP Power ECL15UD02-T	3000 V	Open Frame	15 V	500 mA	Chassis Mount	62368-1	15 W	Adjustable Output DC Input Capable Universal Input	0.78 in	78.7 mm	1.25 in	20 mm	3.1 in	31.7 mm	2	70 °C	-20 °C	ITE (Commercial)	-15 V	500 mA
XP Power ECL15US24-S	4000 V	Enclosed	24 V	630 mA	Chassis Mount	62368-1	15 W	Adjustable Output DC Input Capable Universal Input	1.04 in	84 mm	1.36 "	26.4 mm	3.3 "	34.5 mm	1	70 °C	-20 °C	ITE (Commercial)			CE
XP Power ECL15UD03-T	3000 V	Open Frame	5 V	1.5 A	Chassis Mount	62368-1	15 W	Adjustable Output DC Input Capable Universal Input	0.78 in	78.7 mm	1.25 in	20 mm	3.1 in	31.7 mm	2	70 °C	-20 °C	ITE (Commercial)	12 V	625 mA		81 %

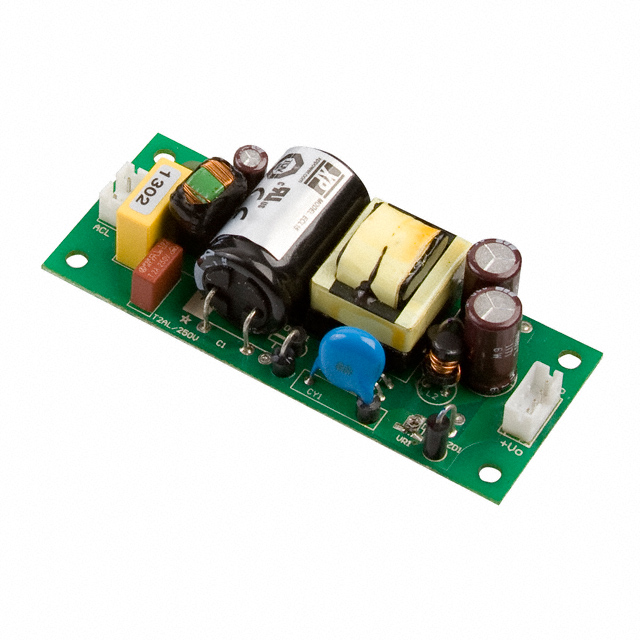

XP Power ECL15US24-T	4000 V	Open Frame	24 V	630 mA	Chassis Mount	62368-1	15 W	Adjustable Output DC Input Capable Universal Input	0.78 in	78.7 mm	1.25 in	20 mm	3.1 in	31.7 mm	1	70 °C	-20 °C	ITE (Commercial)			CE
XP Power ECL15UD02-S	3000 V	Enclosed	15 V	500 mA	Chassis Mount	62368-1	15 W	Adjustable Output DC Input Capable Universal Input	1.04 in	84 mm	1.36 "	26.4 mm	3.3 "	34.5 mm	2	70 °C	-20 °C	ITE (Commercial)	-15 V	500 mA

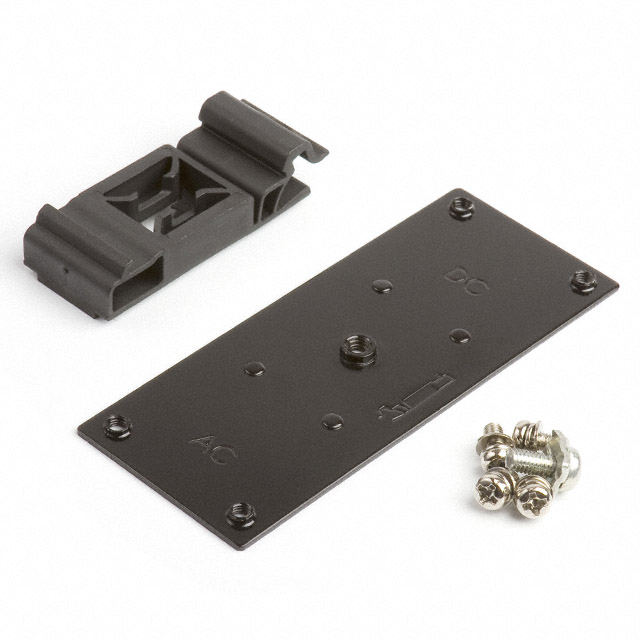

XP Power ECL15 DIN CLIP																							DIN Rail Adapter Kit	ECL Series Power Supplies
XP Power ECL15US15-T	3000 V	Open Frame	15 V	1 A	Chassis Mount	62368-1	15 W	Adjustable Output DC Input Capable Universal Input	0.78 in	78.7 mm	1.25 in	20 mm	3.1 in	31.7 mm	1	70 °C	-20 °C	ITE (Commercial)				80 %
XP Power ECL15UD01-S	3000 V	Enclosed	12 V	650 mA	Chassis Mount	62368-1	15 W	Adjustable Output DC Input Capable Universal Input	1.04 in	84 mm	1.36 "	26.4 mm	3.3 "	34.5 mm	2	70 °C	-20 °C	ITE (Commercial)	-12 V	650 mA
XP Power ECL15US03-S	3000 V	Open Frame	3.3 V	3 A	Chassis Mount	62368-1	15 W	Adjustable Output DC Input Capable Universal Input	1.12 "		1.57 "		3.78 in		1	70 °C	-20 °C	ITE (Commercial)				75 %			28.5 mm 40 mm 96 mm
XP Power ECL15US03-T	3000 V	Open Frame	3.3 V	3 A	Chassis Mount	62368-1	15 W	Adjustable Output DC Input Capable Universal Input		3.46 in		0.88 in		1.36 in	1	70 °C	-20 °C	ITE (Commercial)				75 %				34.6 mm	87.9 mm	22.4 mm
