UPL2000 Series
Manufacturer: Cinch Connectivity Solutions Trompeter
Beta
⌘K

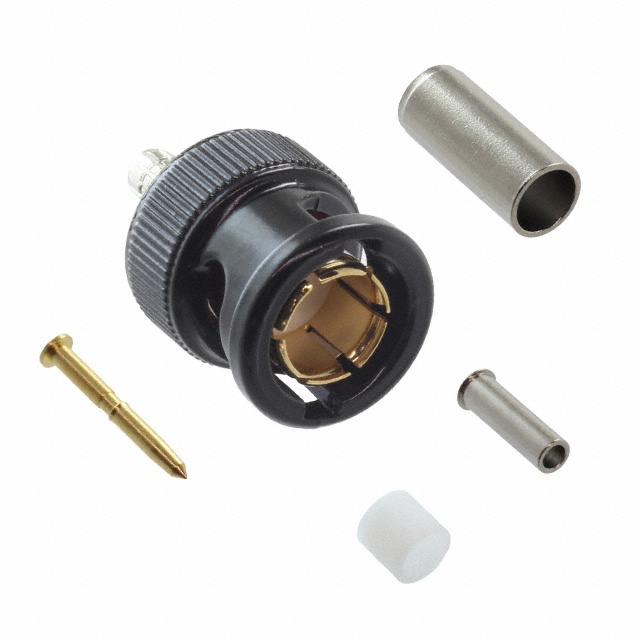

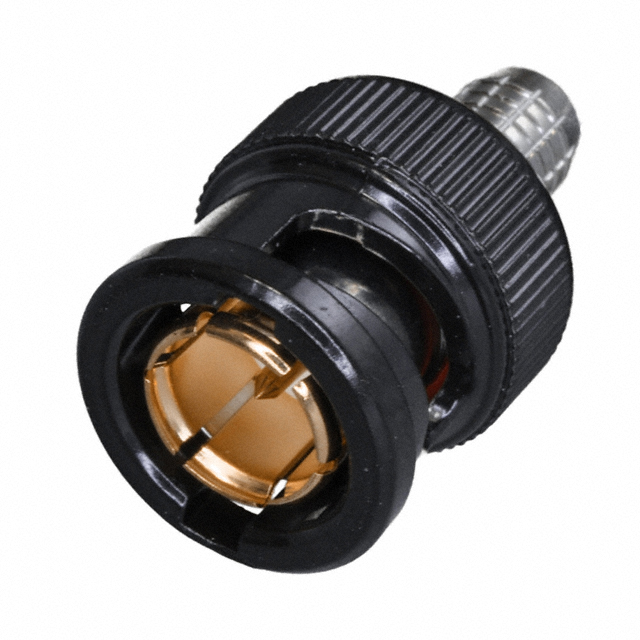

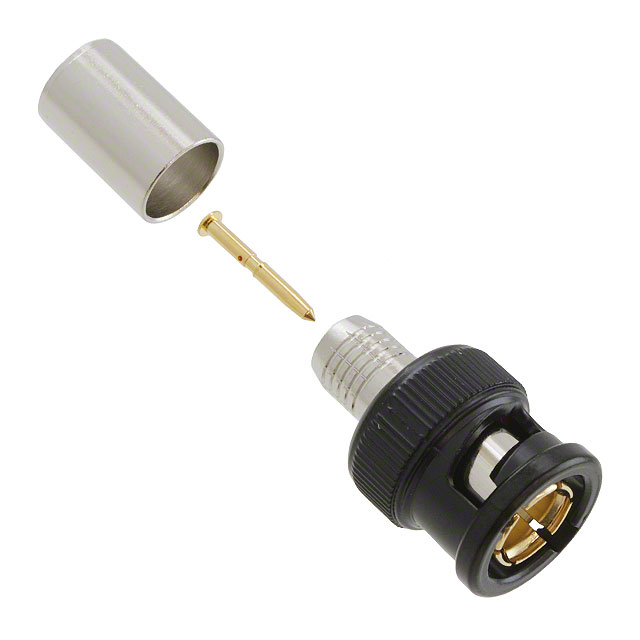

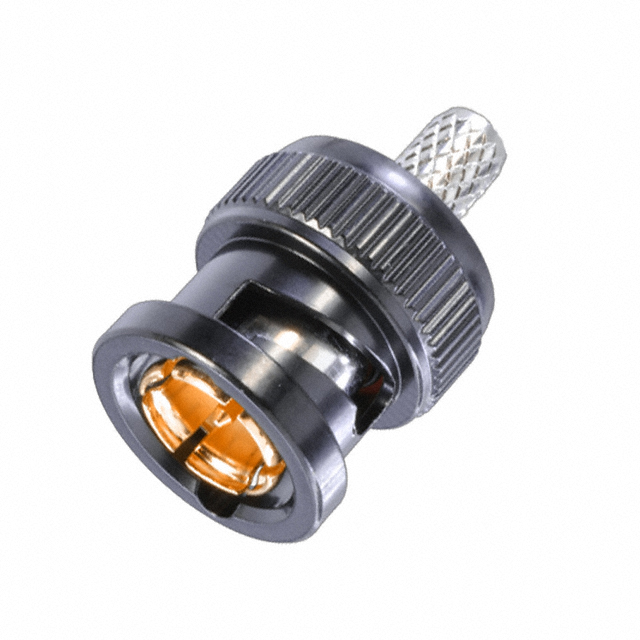

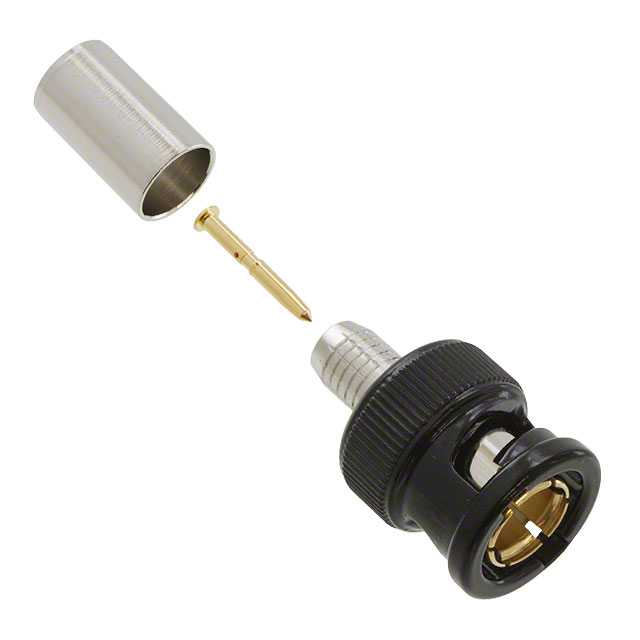

CONN BNC PLUG STR 75 OHM CRIMP
| Part | Connector Style | Cable Group | Fastening Type | Voltage Rating | Insertion Loss | Contact Termination | Impedance | Frequency - Max [Max] | Center Contact Plating | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Body Finish | Mating Cycles | Number of Ports | Mounting Type | Shield Termination | Center Contact Material | Housing Color | Body Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cinch Connectivity Solutions Trompeter | BNC | Nokia 0.6/2.8 | Bayonet Lock | 500 V | 0.2 dB | Crimp | 75 Ohms | 4 GHz | Gold | Male Pin Plug | 85 °C | -40 °C | Polytetrafluoroethylene (PTFE) | Nickel | 500 | 1 | Free Hanging (In-Line) | Crimp | Brass | Black | Brass |
 Cinch Connectivity Solutions Trompeter | BNC | Belden 9221 RG-179 | Bayonet Lock | 500 V | Crimp | 75 Ohms | 4 GHz | Gold | Male Pin Plug | 85 °C | -40 °C | Polytetrafluoroethylene (PTFE) | Nickel | 1 | Free Hanging (In-Line) | Crimp | Brass | Black | Brass | ||
Cinch Connectivity Solutions Trompeter | BNC | Belden 1695A | Bayonet Lock | 500 V | 0.2 dB | Crimp | 75 Ohms | 4 GHz | Gold | Male Pin Plug | 85 °C | -40 °C | Polytetrafluoroethylene (PTFE) | Nickel | 500 | 1 | Free Hanging (In-Line) | Crimp | Brass | Black | Brass |
 Cinch Connectivity Solutions Trompeter | BNC | Belden 1694A | Bayonet Lock | 500 V | 0.2 dB | Crimp | 75 Ohms | 4 GHz | Gold | Male Pin Plug | 85 °C | -40 °C | Polytetrafluoroethylene (PTFE) | Nickel | 500 | 1 | Free Hanging (In-Line) | Crimp | Brass | Black | Brass |
Cinch Connectivity Solutions Trompeter | BNC | Bayonet Lock | 500 V | Crimp | 75 Ohms | 4 GHz | Gold | Male Pin Plug | 85 °C | -40 °C | Polytetrafluoroethylene (PTFE) | Nickel | 1 | Free Hanging (In-Line) | Crimp | Brass | Black | Brass | |||
 Cinch Connectivity Solutions Trompeter | BNC | Belden 1694A | Bayonet Lock | 500 V | 0.2 dB | Crimp | 75 Ohms | 4 GHz | Gold | Male Pin Plug | 85 °C | -40 °C | Polytetrafluoroethylene (PTFE) | Nickel | 500 | 1 | Free Hanging (In-Line) | Crimp | Brass | Black | Brass |
Cinch Connectivity Solutions Trompeter | BNC | RG-59 | Bayonet Lock | 500 V | 0.2 dB | Crimp | 75 Ohms | 4 GHz | Gold | Male Pin Plug | 85 °C | -40 °C | Polytetrafluoroethylene (PTFE) | Nickel | 500 | 1 | Free Hanging (In-Line) | Crimp | Brass | Black | Brass |
 Cinch Connectivity Solutions Trompeter | BNC | Comm/Scope 7538 | Bayonet Lock | 500 V | 0.2 dB | Crimp | 75 Ohms | 4 GHz | Gold | Male Pin Plug | 85 °C | -40 °C | Polytetrafluoroethylene (PTFE) | Nickel | 500 | 1 | Free Hanging (In-Line) | Crimp | Brass | Black | Brass |
 Cinch Connectivity Solutions Trompeter | BNC | Belden 1505A | Bayonet Lock | 500 V | 0.2 dB | Crimp | 75 Ohms | 4 GHz | Gold | Male Pin Plug | 85 °C | -40 °C | Polytetrafluoroethylene (PTFE) | Nickel | 500 | 1 | Free Hanging (In-Line) | Crimp | Brass | Black | Brass |
Cinch Connectivity Solutions Trompeter | BNC | Comm/Scope 7538 | Bayonet Lock | 500 V | 0.2 dB | Crimp | 75 Ohms | 4 GHz | Gold | Male Pin Plug | 85 °C | -40 °C | Polytetrafluoroethylene (PTFE) | Nickel | 500 | 1 | Free Hanging (In-Line) | Crimp | Brass | Black | Brass |
