A-HDF 44 Series
Manufacturer: Assmann WSW Components
Beta
⌘K
CONN D-SUB HD RCPT 44POS PNL MNT
| Part | Dielectric Material | Wire Gauge [Min] | Wire Gauge [Max] | Color | Contact Material | Contact Type | Connector Type | Shell Size, Connector Layout | Mounting Type | Number of Rows [custom] | Number of Positions | Flange Feature | Connector Style | Contact Finish | Ingress Protection | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Material Flammability Rating | Current Rating (Amps) | Contact Finish Thickness | Backset Spacing | Backset Spacing | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

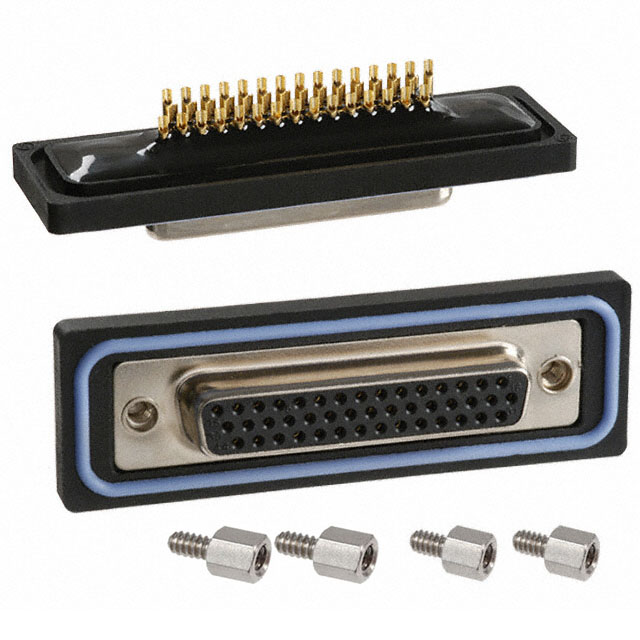

 Assmann WSW Components | Glass Filled Nylon Polyamide (PA) | 24 AWG | 28 AWG | Black | Copper Alloy | Signal | Receptacle Female Sockets | 3 | Panel Mount | 3 | 44 | Female Screwlock Mating Side | D-Sub High Density | Gold | IP67 - Dust Tight Waterproof | ||||||||||

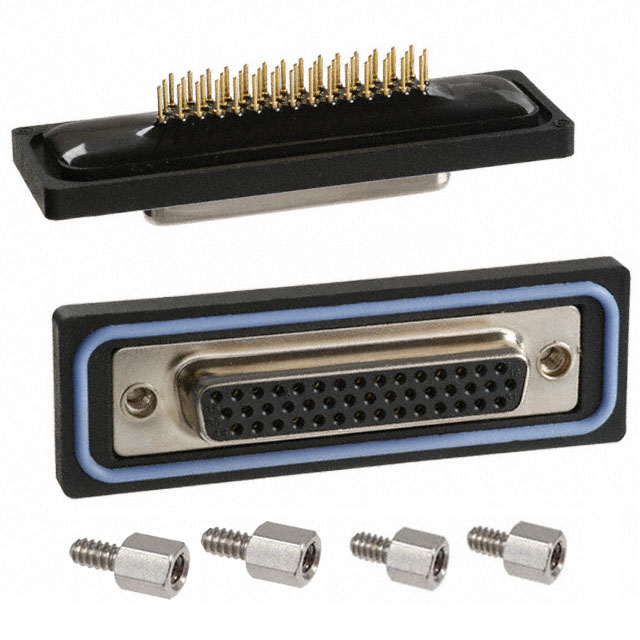

 Assmann WSW Components | Glass Filled Nylon Polyamide (PA) | Black | Copper Alloy | Signal | Receptacle Female Sockets | 3 | Panel Mount Through Hole | 3 | 44 | Female Screwlock Mating Side | D-Sub High Density | Gold | IP67 - Dust Tight Waterproof | Solder | |||||||||||
 Assmann WSW Components | Polybutylene Terephthalate (PBT) Glass Filled | Black | Copper Alloy | Signal | Receptacle Female Sockets | 3 | Free Hanging (In-Line) | 3 | 44 | Housing/Shell (Unthreaded) | D-Sub High Density | Gold | 85 °C | -20 ░C | 250 V | UL94 V-0 | 3 A | Flash | |||||||

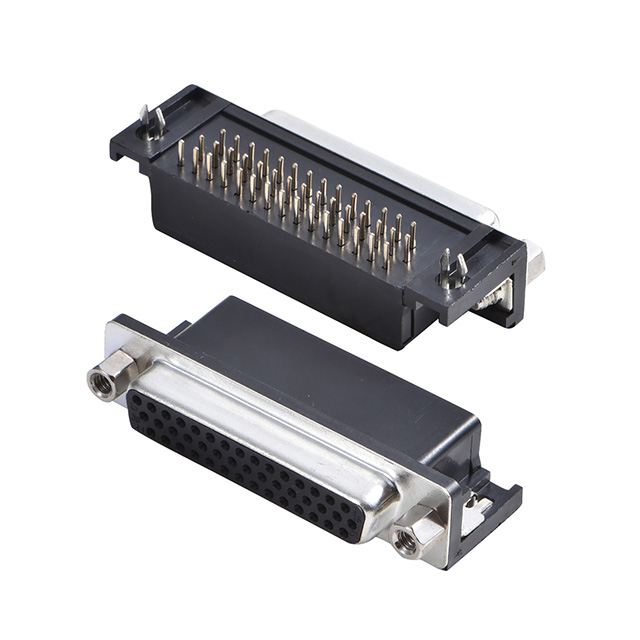

 Assmann WSW Components | Polybutylene Terephthalate (PBT) Glass Filled | Black | Copper Alloy | Signal | Receptacle Female Sockets | 3 | Panel Mount Right Angle Through Hole | 3 | 44 | 4-40 Mating Side Female Screwlock | D-Sub High Density | Gold | Solder | 105 ░C | -55 C | 250 V | UL94 V-0 | 3 A | Flash | 8.89 mm | 0.35 in | Board Lock | |||
 Assmann WSW Components | Polybutylene Terephthalate (PBT) Glass Filled | Black | Copper Alloy | Signal | Receptacle Female Sockets | 3 | Through Hole | 3 | 44 | Housing/Shell (Unthreaded) | D-Sub High Density | Gold | Solder | 85 °C | -20 ░C | 250 V | UL94 V-0 | 3 A | Flash |
