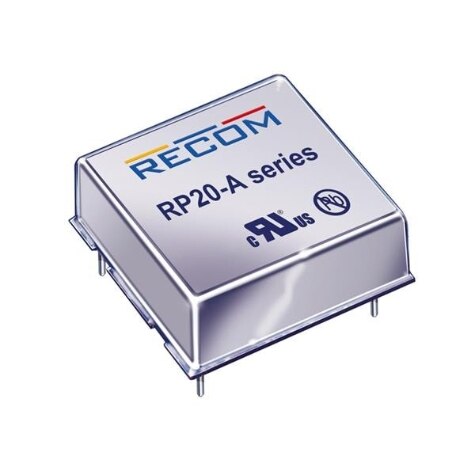

RP20-A Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 20W DC/DC 1.6KV REG 9-18VIN 5VOUT POSLOG
| Part | Voltage - Isolation | Mounting Type | Voltage - Output 1 | Voltage - Input (Min) [Min] | Power (Watts) | Features | Voltage - Input (Max) [Max] | Number of Outputs | Efficiency | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Applications | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Type | Control Features | Voltage - Output 2 | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 1.6 kV | Through Hole | 5 V | 9 V | 20 W | OCP OVP Remote On/Off SCP UVLO | 18 V | 1 | 89 % | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | ITE (Commercial) | 6-SIP Module | 90 °C | -40 C | 4 A | Isolated Module | Active High Enable | |||
Recom Power | 1.6 kV | Through Hole | 12 V | 18 V | 20 W | OCP OVP Remote On/Off SCP UVLO | 36 V | 1 | 90 % | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | ITE (Commercial) | 6-SIP Module | 90 °C | -40 C | 1.67 A | Isolated Module | Active High Enable | |||
Recom Power | 1.6 kV | Through Hole | 15 V | 9 V | 20 W | OCP OVP SCP UVLO | 18 V | 2 | 90 % | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | ITE (Commercial) | 6-SIP Module 5 Leads | 90 °C | -40 C | Isolated Module | -15 V | 677 mA | 677 mA | ||
Recom Power | 1.6 kV | Through Hole | 15 V | 36 V | 20 W | OCP OVP Remote On/Off SCP UVLO | 75 V | 2 | 90 % | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | ITE (Commercial) | 6-SIP Module | 90 °C | -40 C | Isolated Module | Active Low Enable | -15 V | 677 mA | 677 mA | |
 Recom Power | 1.6 kV | Through Hole | 3.3 V | 9 V | 20 W | OCP OVP Remote On/Off SCP UVLO | 18 V | 1 | 86 % | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | ITE (Commercial) | 6-SIP Module | 90 °C | -40 C | 4.5 A | Isolated Module | Active Low Enable | |||
Recom Power | 1.6 kV | Through Hole | 15 V | 36 V | 20 W | OCP OVP Remote On/Off SCP UVLO | 75 V | 2 | 90 % | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | ITE (Commercial) | 6-SIP Module | 90 °C | -40 C | Isolated Module | Active High Enable | -15 V | 677 mA | 677 mA | |
Recom Power | 1.6 kV | Through Hole | 15 V | 9 V | 20 W | OCP OVP SCP UVLO | 18 V | 2 | 90 % | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | ITE (Commercial) | 6-SIP Module 4 Leads | 90 °C | -40 C | Isolated Module | -15 V | 677 mA | 677 mA | ||
Recom Power | 1.6 kV | Through Hole | 5 V | 18 V | 20 W | OCP OVP SCP UVLO | 36 V | 1 | 90 % | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | ITE (Commercial) | 6-SIP Module 4 Leads | 90 °C | -40 C | 4 A | Isolated Module | ||||
Recom Power | 1.6 kV | Through Hole | 12 V | 9 V | 20 W | OCP OVP Remote On/Off SCP UVLO | 18 V | 2 | 89 % | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | ITE (Commercial) | 6-SIP Module | 90 °C | -40 C | Isolated Module | Active High Enable | -12 V | 833 mA | 833 mA | |
 Recom Power | 1.6 kV | Through Hole | 15 V | 18 V | 20 W | OCP OVP Remote On/Off SCP UVLO | 36 V | 1 | 91 % | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | ITE (Commercial) | 6-SIP Module | 90 °C | -40 C | 1.33 A | Isolated Module | Active High Enable |
