V23050 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

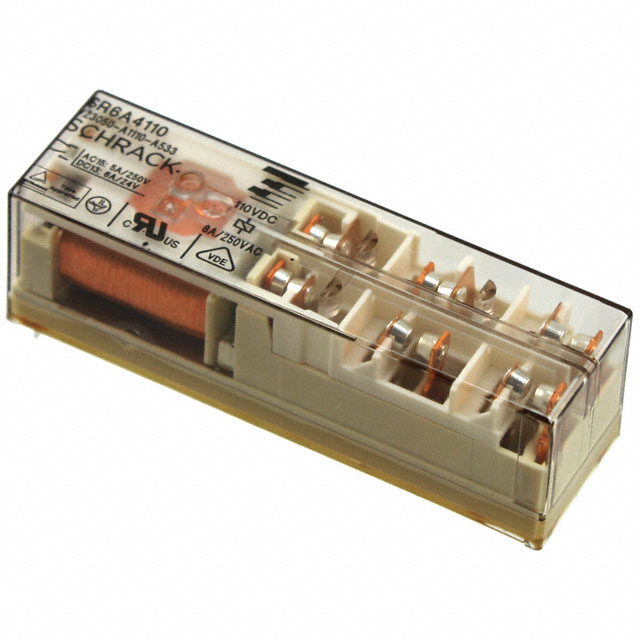

RELAY SAFETY 6PST 8A 24V
| Part | Coil Current | Coil Power | Coil Resistance | Must Operate Voltage | Contact Material | Coil Voltage | Termination Style | Contact Rating (Current) | Must Release Voltage | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Switching Voltage [Max] | Contact Form | Approval Agency | Load - Max Switching | Relay Type | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 50 mA | 1.2 W | 480 Ohms | 18 VDC | Silver Tin Oxide (AgSnO) | 24 VDC | PC Pin | 8 A | 2.4 VDC | Through Hole | -25 °C | 70 °C | 400 VAC | 6PST-5NO/1NC (5 Form A 1 Form B) | ||||
TE Connectivity AMP Connectors | 50 mA | 1.2 W | 480 Ohms | 18 VDC | Silver Tin Oxide (AgSnO) | 24 VDC | PC Pin | 8 A | 2.4 VDC | Through Hole | -25 °C | 70 °C | 400 VAC | 6PST-3NO/3NC (3 Form A 3 Form B) | ||||
TE Connectivity AMP Connectors | 14.1 mA | 1.2 W | 6.02 kOhms | 64 VDC | Silver Tin Oxide (AgSnO) | 85 VDC | PC Pin | 8 A | 8.5 VDC | Through Hole | -25 °C | 70 °C | 400 VAC | 6PST-4NO/2NC (4 Form A 2 Form B) | ||||
 TE Connectivity AMP Connectors | 132.4 mA | 68 Ohms | 6.8 VDC | Silver Tin Oxide (AgSnO) | 9 VDC | PC Pin | 8 A | 0.9 VDC | Through Hole | -25 °C | 70 °C | 400 VAC | 6PST-3NO/3NC (3 Form A 3 Form B) | CCC cURus TUV VDE | 3200 VA | General Purpose | Non Latching | |
TE Connectivity AMP Connectors | 0.02 A | 1.2 W | 3 kOhms | 45 VDC | Silver Tin Oxide (AgSnO) | 60 VDC | PC Pin | 8 A | 6 VDC | Through Hole | -25 °C | 70 °C | 400 VAC | 6PST-5NO/1NC (5 Form A 1 Form B) | ||||
TE Connectivity AMP Connectors | 238.1 mA | 21 Ohms | 3.8 VDC | Silver Tin Oxide (AgSnO) | 5 VDC | PC Pin | 8 A | 0.5 VDC | Through Hole | -25 °C | 70 °C | 400 VAC | 6PST-5NO/1NC (5 Form A 1 Form B) | CCC cURus TUV VDE | 3200 VA | General Purpose | Non Latching | |
TE Connectivity AMP Connectors | 57.1 mA | 1.2 W | 368 Ohms | 15.8 VDC | Silver Tin Oxide (AgSnO) | 21 VDC | PC Pin | 8 A | 2.1 VDC | Through Hole | -25 °C | 70 °C | 400 VAC | 6PST-3NO/3NC (3 Form A 3 Form B) | ||||
TE Connectivity AMP Connectors | 10.9 mA | 1.2 W | 82.5 VDC | Silver Tin Oxide (AgSnO) | 110 VDC | PC Pin | 8 A | 11 VDC | Through Hole | -25 °C | 70 °C | 400 VAC | 6PST-4NO/2NC (4 Form A 2 Form B) |
