770743 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

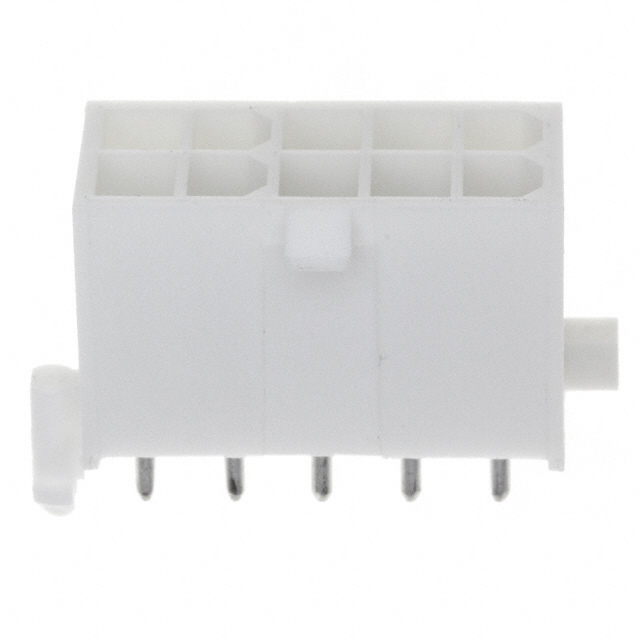

CONN HEADER VERT 10POS 4.14MM
| Part | Contact Finish Thickness - Post | Applications | Mounting Type | Material Flammability Rating | Fastening Type | Contact Length - Post | Contact Length - Post | Connector Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Termination | Current Rating (Amps) | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Style | Contact Finish - Mating | Shrouding | Number of Positions Loaded | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Features | Insulation Material | Number of Rows [custom] | Contact Finish - Post | Insulation Height | Insulation Height | Contact Shape | Number of Positions | Contact Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.81 Ám | General Purpose | Through Hole | UL94 V-0 | Locking Ramp | 4.45 mm | 0.175 in | Header | 4.14 mm | 0.163 in | Solder | Varies by Wire Gauge | White | 150 Áin | 3.81 Ám | 0.163 in | 4.14 mm | Board to Cable/Wire | Tin-Lead | Shrouded - 4 Wall | All | 600 VAC | 85 °C | -20 ░C | Board Lock | Nylon Polyamide (PA) | 2 | Tin-Lead | 13.5 mm | 0.531 in | Circular | 10 | Male Pin | Brass |
